DT50
DMTG
8458.1100.00

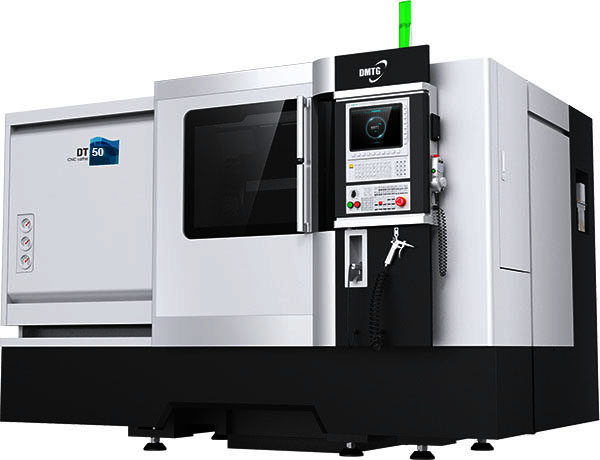

DT50 Dalian DMTG CNC Lathe Maquina Tornos CNC Slant Bed CNC Lathe
Model | DT-50 | |
Main specifications | ||
Max. swing over bed | mm | 680 |
Max. turning length | mm | 580/1080 |
Max. turning diameter(shaft/disc) | mm | 460/500 |
Type of guideway | Linear | |
Angle of bed | 40° | |
Headstock | ||
Chuck size | 10” | |
Spindle nose | A2-8 | |
Spindle bore | mm | 87 |
Bar capacity | mm | 73 |
Spindle speeds | rpm | 35 – 3500 |
Spindle motor | kw | 15/18.5 |

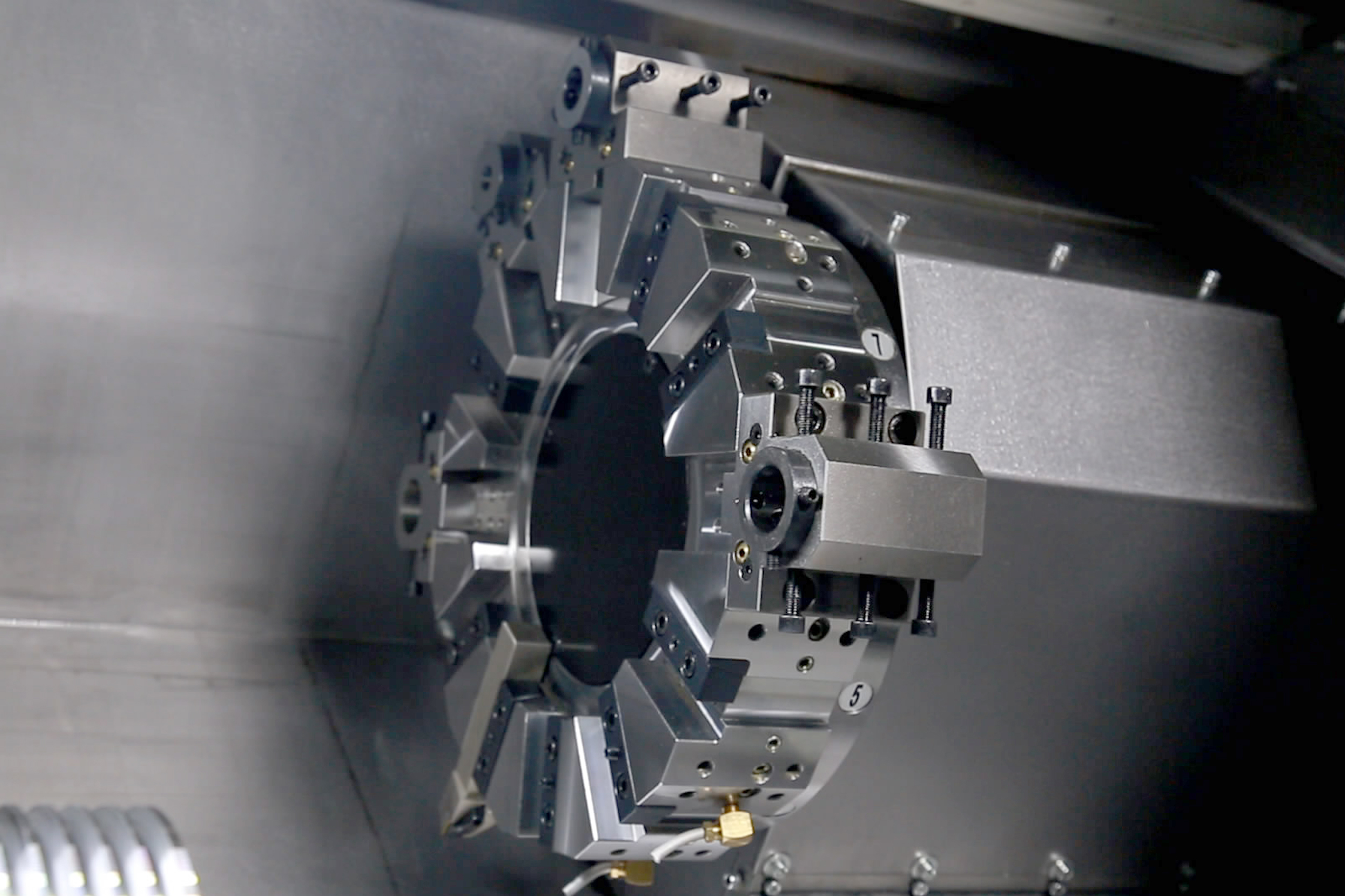

Turret | ||
Number of tool stations | 12 | |
Shank size for square tool | mm | 25x25 |
Index time (adjacent pocket) | s | 0.45 |
Index time (360°) | s | 1.45 |
Travels | ||
X axis | mm | 265 |
Z axis | mm | 600/1100 |
X axis rapid travel | m/min | 30 |
Z axis rapid travel | m/min | 30 |
Tailstock | ||
Quill diameter | mm | 85 |
Quill inside taper | MT# 5 | |
Quill travel | mm | 140 |
Tailstock travel | mm | 500/1000 |
Accuracy | ||
Positioning | mm | X：0.005; Z: 0.007/0.008 |
Repeatability | mm | X：0.003; Z: 0.004/0.005 |
Others | ||
Machine size (excludes chip conveyor) | mm | 2922/3422 X1860 X 2010 |
Net weight | kg | 5500/6500 |
Standard Configurations
Item | Base Machine Configuration |
1 | Fanuc 0i TF(5) Plus CNC control, 10.4” screen |
2 | 10” solid hydraulic 3-jaw chuck |
3 | 12 position hydraulic turret |
4 | 40 degree angle bed |
5 | THK Roller type linear guides |
6 | Chip conveyor and chip bucket |
7 | Hydraulic tailstock |
8 | Coolant system |
9 | Enclosure Guarding |
10 | RS-232 interface and DNC function |
11 | Tools |
12 | English documentation |
