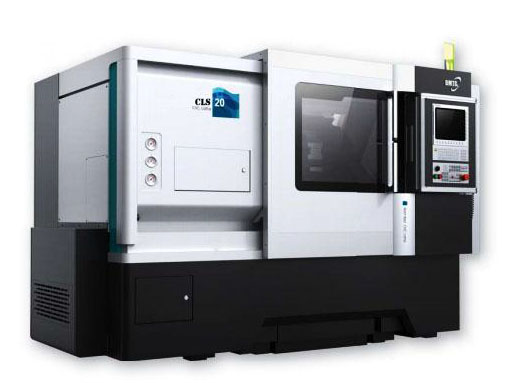

CLS20 Dalian DMTG Slant Bed CNC Lathe Declined Bed CNC Lathe Machine

Max. Swing diameter over bed: 440mm
Max. turning length: 450mm
Spindle bore diameter: 62mm
Spindle bearing brand: NSK
Linear Guide Brand: THK
Quantity:
  • CLS20
  • DMTG
  • 8458.1100.00
CLS20 Dalian DMTG Slant Bed CNC Lathe

CLS20
Main Specification:

Model

CLS20 X 500

Main specifications


Max. swing over bed 440
Max. turning length 450
Max. turning diameter(shaft/disc) 260/300
Type of guideway Linear
Angle of bed 45°

Headstock


Chuck size 8”
Spindle nose A2-6
Spindle bore 62
Bar capacity 52
Spindle speeds 45 – 4500rpm
Spindle motor 11/15kw

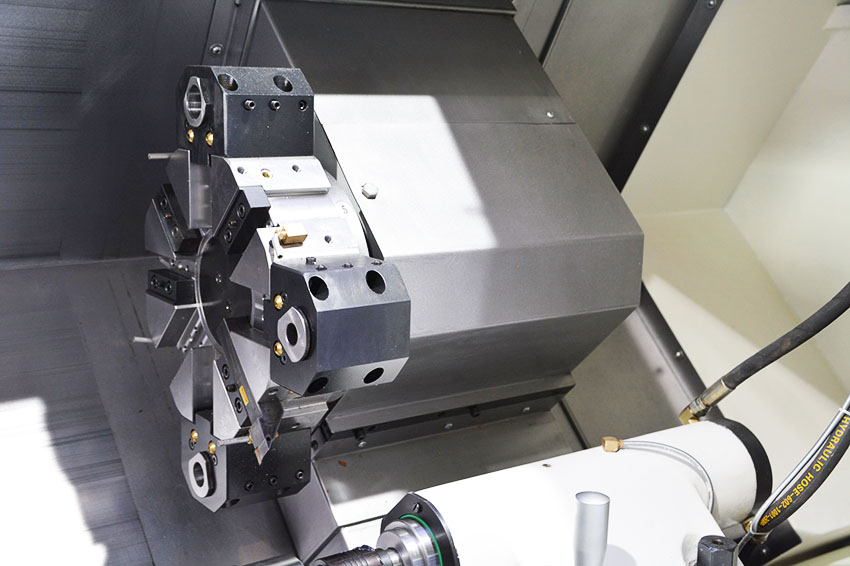

Turret



Number of tool stations 8
Shank size for square tool 25x25
Index time (adjacent pocket) 0.25 seconds
Index time (360°) 1.0 seconds

Feed rates (maximum)


X axis 16 meters / minute
Y axis 20 meters / minute

Tailstock


Quill diameter 80
Quill inside taper MT# 3
Quill travel 130
Tailstock travel 460

General


Machine size (side chip conveyor) 4150 X 1620 X 1760
Net weight 4500kg

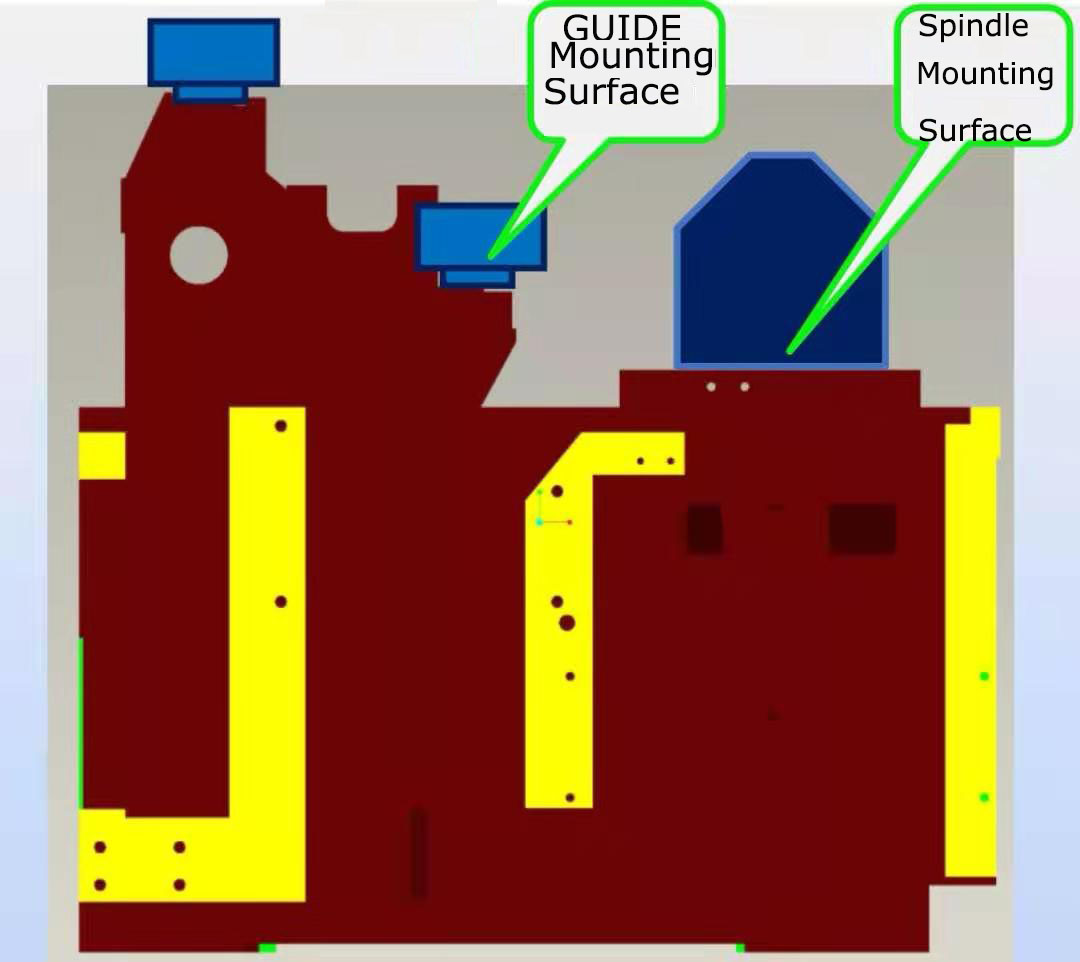

Slant Bed CNC Lathe Model: CLS20 adopt ( Horizontal Guideway ).
Loading Weight Capacity is stronger. Better in Rigidity and Processing Result.

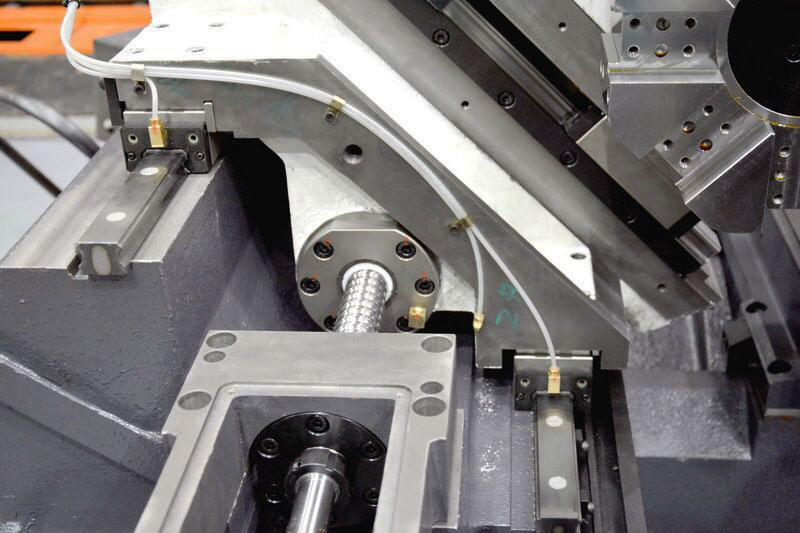

  Inner side of CLS20
