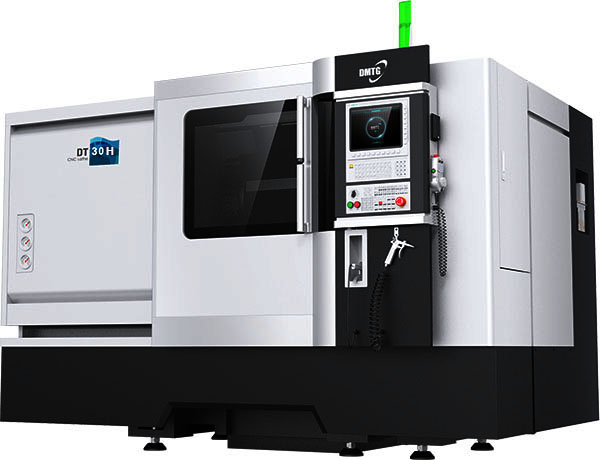

DT30H Dalian DMTG CNC Turning Center Slant Bed Torno CNC Lathe with Live Tools

Max. swing over bed mm 480
Max. turning length mm 280


DT30H Dalian DMTG CNC Turning Center Slant Bed Torno CNC Lathe with Live Tools

Max. turning diameter(shaft/disc) mm 280/300
Type of guideway Linear
Angle of bed 40°
Availability:
Quantity:
  • DT30H
  • DMTG
  • 8458.1100.00

DT30H Dalian DMTG CNC Turning Center Slant Bed Torno CNC Lathe with Live ToolsDT30H

Model


DT-30H

Main   specifications



Max.   swing over bed

mm

480

Max.   turning length

mm

280

Max.   turning diameter(shaft/disc)

mm

280/300

Type   of guideway


Linear

Angle   of bed


40°

Headstock





Chuck   size


6”

Spindle   nose


A2-5

Spindle   bore

mm

63

Bar   capacity

mm

45

Spindle   speeds

rpm

45 – 5000

Spindle   motor

kw

7.5/11

Turret





Number   of tool stations


12

Type


BMT

Shank   size for square tool

mm

20x20

Index   time (adjacent pocket)

s

0.23

Index   time (360°)

s

0.6

Boring   bar tool holder

mm

Max. 32mm

Live   tooling Motor

Kw

3.7/5.5

Max.   live tool drilling capacity

mm

φ16×0.2

Max.   live tool tapping capacity

mm

M18x1.5

Max.   live tool milling capacity

mm

22x10x40(Dia.*Depth*Speed)

Max.   live tool turning speed

Rpm

4000

Travels





X   axis

mm

170

Z   axis

mm

300

X   axis rapid travel

m/min

30

Z   axis rapid travel

m/min

30

Tailstock





Quill   diameter

mm

70

Quill   inside taper


MT# 4

Quill   travel

mm

120

Tailstock   travel

mm

360

Accuracy





Positioning

mm

X/Z0.005/0.005

Repeatability

mm

X/Z0.003/0.003

Others





Machine   size

mm

2360x2510x1835

Net   weight

kg

4000





2,Standard Configurations


Item

Base Machine   Configuration

1

FANUC 0i TF(5) CNC   control

2

6"   hydraulic solid three jaw chuck Hydraulic chuck

3

THK Roller type linear guides

4

12   positionservo live tooling turret

5

Chain   type Chip conveyor

6

Fully   enclosure guarding

7

RS-232   interface and DNC function

8

Automatic   lubrication system

9

Alarm   lamp

10

Toolbox

11

Heat   exchanger

12

English documentation

3

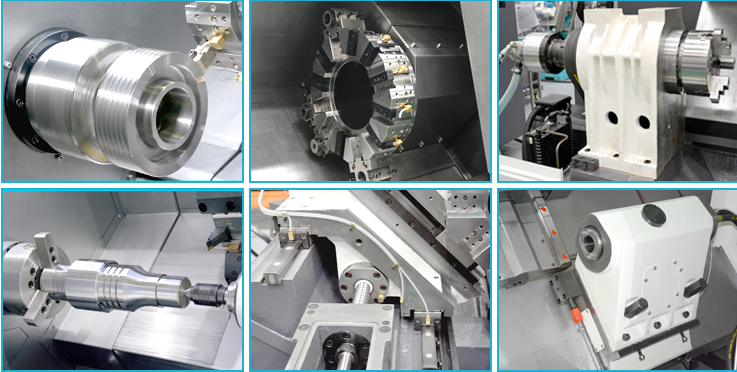

Innder Side of DT-30H


Inner Side 1 of DT-30H
