DT30
DMTG
8458.1100.00

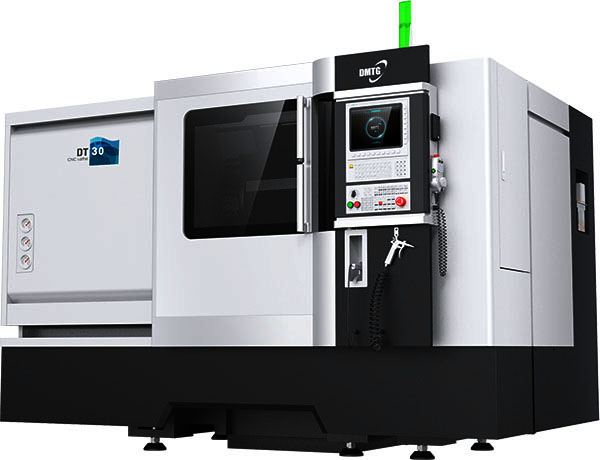

DT30 Dalian DMTG Slant Bed Torno CNC Lathe Machine
Main Specification:
Max.Swing diameter over bed | 480mm |
Max turning diameter(Shaft/Disk) | 280/300mm |
Max turning length | 300/500mm |
Guideway type | Liner guideway |
Angle of bed | 40° |
Chuck size | 6 inch |
Spindle speed range | 45-5000rpm |
Spindle bore | 63mm |
Max bar capacity(Equipped with through-hole hydraulic chuck) | 45mm |
Spindle motor power | 7.5/11kw |
Max Cross travel of X axis | 155mm |
Max Cross travel of Z axis | 300/500mm |
Prapid traverse of X/Z axis | 30/30m/min |

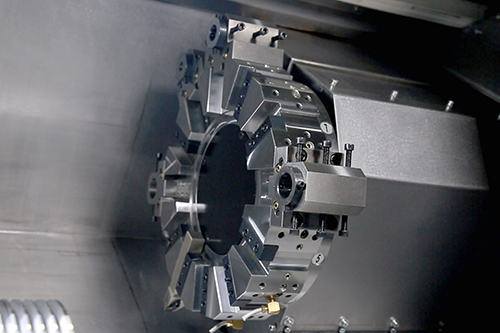

Tool type and tool number | Hydraulic 12-position turret |
Tool shank size | 25*25 |
Diameter of tailstock quill | 70mm |
Tailstock quill stroke | 120mm |
X/Z axis positioning accuracy | 0.005/0.005 |
X/Z axis repeatability accuracy | 0.003/0.003 |
Machine dimensions(LxWxH) | 2360*2510*1835(300) |
Standard Configurations
Item | Base Machine Configuration |
1 | FANUC 0i TF(5) CNC control |
2 | 6" hydraulic solid three jaw chuck Hydraulic chuck |
3 | THK Roller type linear guides |
4 | 12 position hydraulic turret |
5 | Chain type Chip conveyor |
6 | Fully enclosure guarding |
7 | RS-232 interface and DNC function |
8 | Automatic lubrication system |
9 | Alarm lamp |
10 | Toolbox |
11 | Heat exchanger |
12 | English documentation |
