DL20M
DMTG
8458.1100

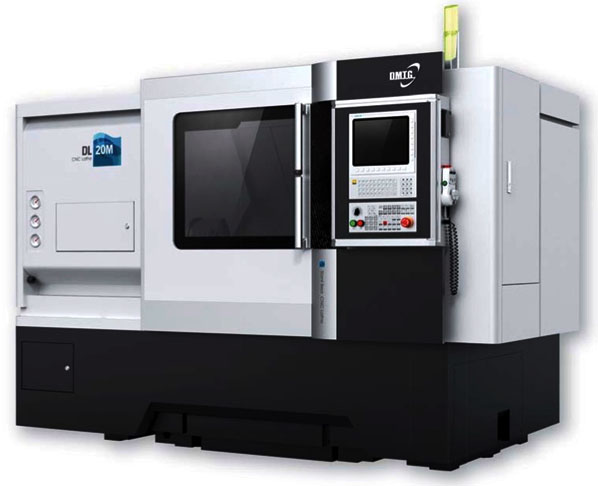

The new DL series of CNC slant bed lathes with rigid cast-iron structre hardened(50-52HRC) and ground guarantee high precision and stability.The machine bed is made of heat stabilised cast-iron.Varous configuration are available with sindles from ASA 5" to ASA 15",power up to 30kW and tuming length up to 3000mm,A wide range of options and accessories allow the machine to be highly customised for very accurate and reliable machining.
CAPACITIES | Metric |
Max Swing Diameter | 440 mm |
Max Cutting Diameter (Shaft) | 260 mm |
Max Cutting Diameter (Disk) | 400 mm |
Max Cutting Length | 600 & 1000mm |
SPINDLE | Metric |
Spindle Nose | A2-6 |
Motor | 11/15KW |
Max Speed | 4500 rpm |
Chuck Size | 8” |
Spindle Bore ø | 76 mm |
Max. bar capacity | 65 mm |
TURRET | Metric |
Number of Tools | 12 |
Tool index time(closest/farthest) | 0.35s/1.6s |
Tool shank size | 25x25 mm |
TRAVELS & FEEDRATES | Metric |
X Axis | 265 mm |
Z Axis | 640 mm / 1040mm |
Rapids on X Axis | 20 m/min |
Rapids on Z Axis | 20 m/min |
TAILSTOCK | Metric |
Quill dia. | 85 mm |
Quill travel | 139 mm |
Taper | MT.5 |
MOTORS | Metric |
X/Z Servo Motor Torque | 8Nm/12Nm |
GENERAL | Metric |
Control | Fanuc 0i |
Bed Slant | 45° |
Way type | Linear guide way |
Machine Size (include chip conveyor) DL20M/1000 | 4840x1797x1795mm |
Machine Weight: DL20M/1000 | 6500 kg |
Item | Base Machine Configuration |
1 | FANUC 0i TF CNC control |
2 | 8" hydraulic Non-thru-hole three jaw hydraulic chuck |
3 | 12 position hydraulic turret |
4 | Belt Type Chip conveyor |
5 | Fully enclosure guarding |
6 | RS-232 interface and DNC function |
7 | Automatic lubrication system |
8 | Alarm lamp |
9 | Hydraulic Tailstock |
10 | Coolant system |
11 | 1 of facing turning tool holder |
12 | 4 of axial tool holder |
Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the slant bed cnc lathe machine. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:
The slant bed cnc lathe machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
When the slant bed cnc lathe machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
During this period of one year warranty , if the slant bed cnc lathe machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
During this period of warranty, if there is something wrong with the slant bed cnc lathe machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
After the warranty, we charge only cost price for maintaining the slant bed cnc lathe machines within three years.
Other after-sale terms can be agreed by buyer and seller in addition.
The new DL series of CNC slant bed lathes with rigid cast-iron structre hardened(50-52HRC) and ground guarantee high precision and stability.The machine bed is made of heat stabilised cast-iron.Varous configuration are available with sindles from ASA 5" to ASA 15",power up to 30kW and tuming length up to 3000mm,A wide range of options and accessories allow the machine to be highly customised for very accurate and reliable machining.
CAPACITIES | Metric |
Max Swing Diameter | 440 mm |
Max Cutting Diameter (Shaft) | 260 mm |
Max Cutting Diameter (Disk) | 400 mm |
Max Cutting Length | 600 & 1000mm |
SPINDLE | Metric |
Spindle Nose | A2-6 |
Motor | 11/15KW |
Max Speed | 4500 rpm |
Chuck Size | 8” |
Spindle Bore ø | 76 mm |
Max. bar capacity | 65 mm |
TURRET | Metric |
Number of Tools | 12 |
Tool index time(closest/farthest) | 0.35s/1.6s |
Tool shank size | 25x25 mm |
TRAVELS & FEEDRATES | Metric |
X Axis | 265 mm |
Z Axis | 640 mm / 1040mm |
Rapids on X Axis | 20 m/min |
Rapids on Z Axis | 20 m/min |
TAILSTOCK | Metric |
Quill dia. | 85 mm |
Quill travel | 139 mm |
Taper | MT.5 |
MOTORS | Metric |
X/Z Servo Motor Torque | 8Nm/12Nm |
GENERAL | Metric |
Control | Fanuc 0i |
Bed Slant | 45° |
Way type | Linear guide way |
Machine Size (include chip conveyor) DL20M/1000 | 4840x1797x1795mm |
Machine Weight: DL20M/1000 | 6500 kg |
Item | Base Machine Configuration |
1 | FANUC 0i TF CNC control |
2 | 8" hydraulic Non-thru-hole three jaw hydraulic chuck |
3 | 12 position hydraulic turret |
4 | Belt Type Chip conveyor |
5 | Fully enclosure guarding |
6 | RS-232 interface and DNC function |
7 | Automatic lubrication system |
8 | Alarm lamp |
9 | Hydraulic Tailstock |
10 | Coolant system |
11 | 1 of facing turning tool holder |
12 | 4 of axial tool holder |
Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the slant bed cnc lathe machine. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:
The slant bed cnc lathe machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
When the slant bed cnc lathe machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
During this period of one year warranty , if the slant bed cnc lathe machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
During this period of warranty, if there is something wrong with the slant bed cnc lathe machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
After the warranty, we charge only cost price for maintaining the slant bed cnc lathe machines within three years.
Other after-sale terms can be agreed by buyer and seller in addition.
