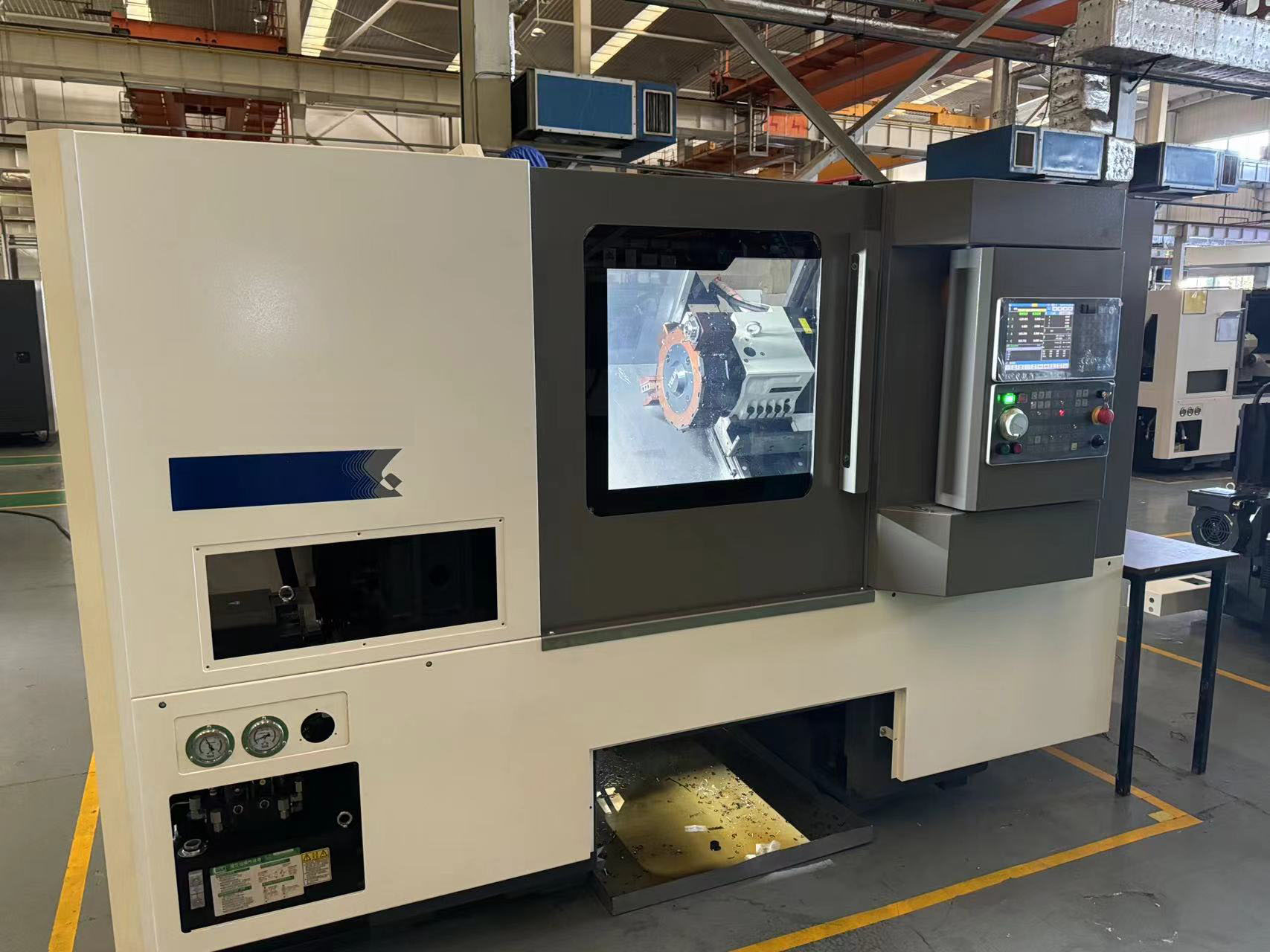

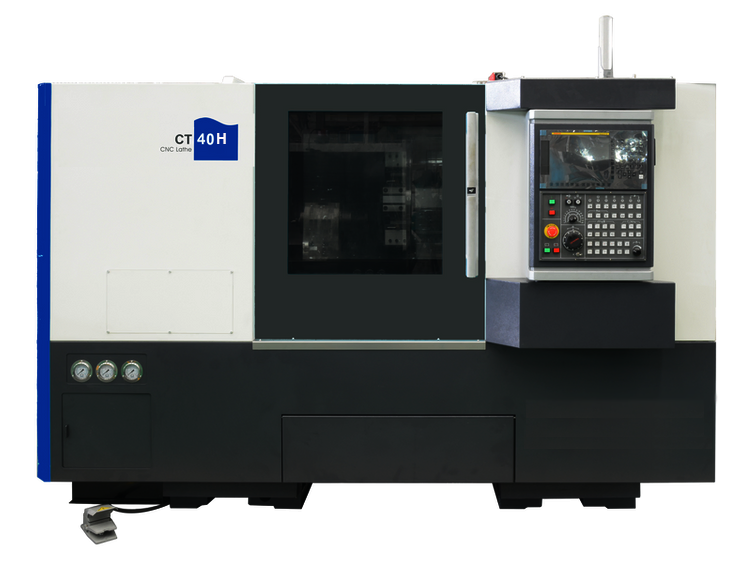

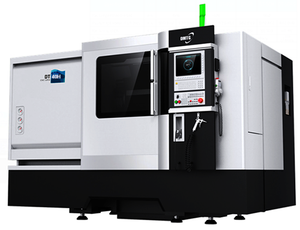

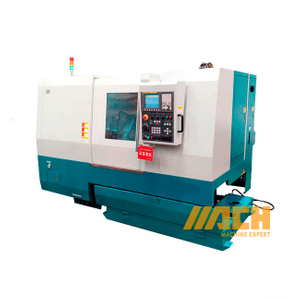

CT-40H Dalian DMTG Slant Bed Torno CNC Lathe with Living Tools C axis

Max. swing over bed

mm

538

Max. turning length

mm

500

Max. turning diameter(shaft/disc)

mm

240/300

Type of guideway

Linear

Angle of bed

45°

Chuck size

8”

   10"

Spindle nose

A2-6

   A2-8

Spindle bore

mm

62

   87

Bar capacity

mm

51

   74

Spindle speeds

rpm

45 – 4500

 35-3500

Spindle motor

rpm

11/15

Number of tool stations

12

Indexing time
  (with/without adjacent tool)

s

0.36/1.01

Shank size for OD tool

mm

25x25

Shank size for ID tool

mm

32

Live tool motor

Kw

3.7/5.5

Live tool max. speed

rpm

4000

Live tool max.drilling capability

mm*mm/u

14*0.15

Live tool max.tapping capability

mm*mm

M10x1.5; M24x1

Live tool max.milling capability

mm*mm*mm/min

20*14*40(dia.*depth*speed)

X/Z axis travel

mm

165/500

X axis rapid travel

m/min

20

Z axis rapid travel

m/min

24

Feedrate

mm/min

0~9000

Quill diameter

mm

80

Quill inside taper

MT.4

Quill travel

mm

130

Tailstock travel

mm

460

Positioning

mm

X/Z：0.008/0.008

Repeatability

mm

X/Z：0.004/0.004

Machine size(side chip conveyor)

mm

3900*1800*1850

Net weight

kg

4000

1

Fanuc 0i TF(5) Plus control system

2

8" non- through hole hydraulic 3-jaw chuck

3

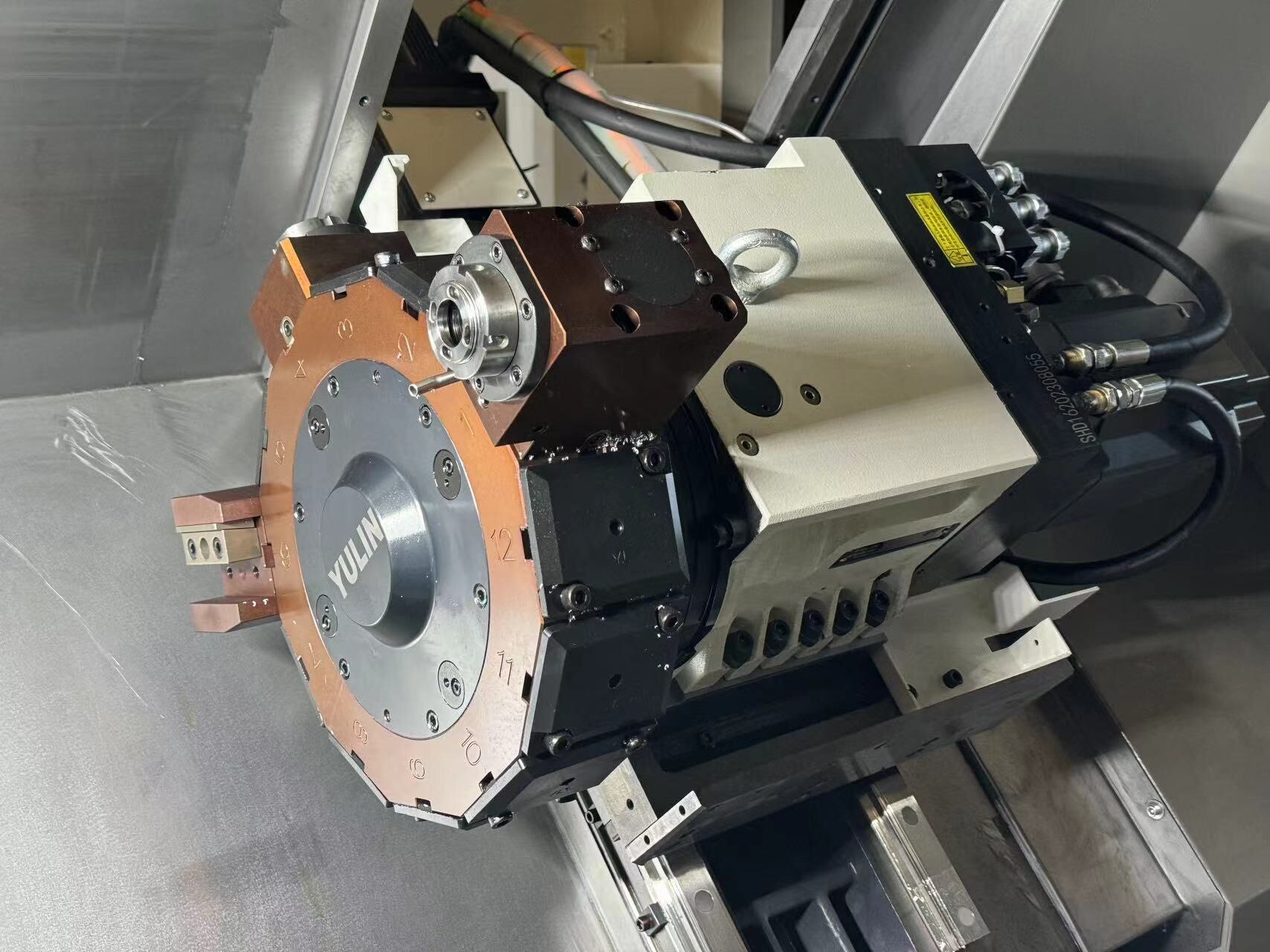

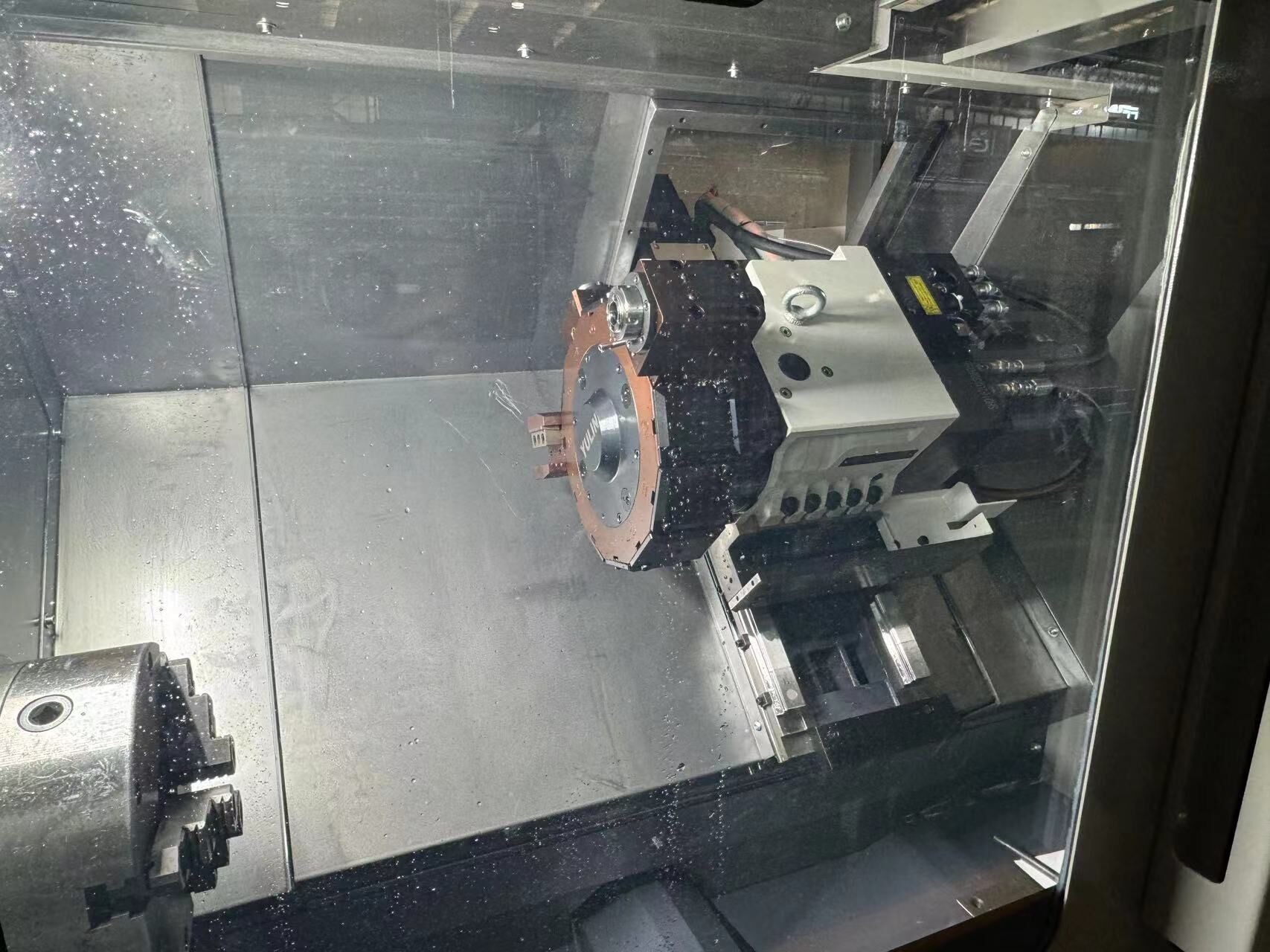

12  position servo turret

4

Stepped  horizontal positioned Z axis rail

5

THK  Linear guide way

6

Side or rear-exit chain   type chip conveyor systems

7

Hydraulic   tailstock

8

Coolant   system

9

Enclosure   Guarding

10

USB   interface and DNC function

11

Tools

12

1 pc of   axial live tool holder + 1 pc of radial live tool holder
