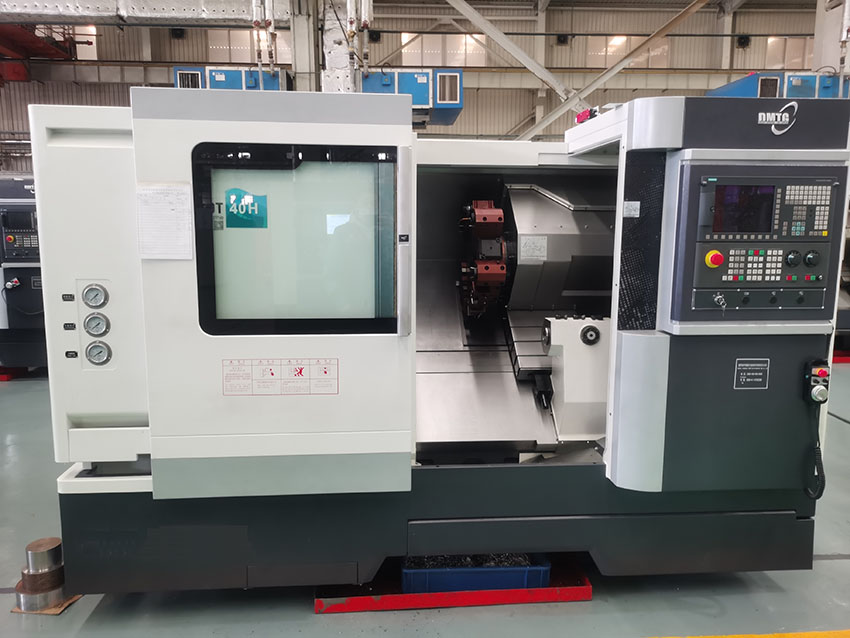

DT40H Dalian DMTG CNC Turning Center Slant Bed Torno CNC Lathe with Driven Tools

Max. swing over bed mm 480
Max. turning length mm 280


DT30H Dalian DMTG CNC Turning Center Slant Bed Torno CNC Lathe with Live Tools

Max. turning diameter(shaft/disc) mm 280/300
Type of guideway Linear
Angle of bed 40°
Availability:
Quantity:
  • DT40H
  • DMTG
  • 8458.1100.00

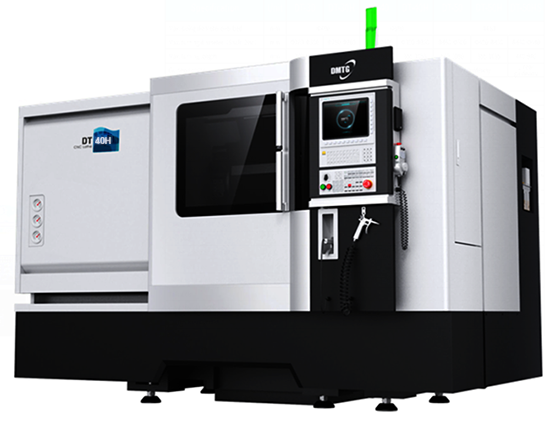

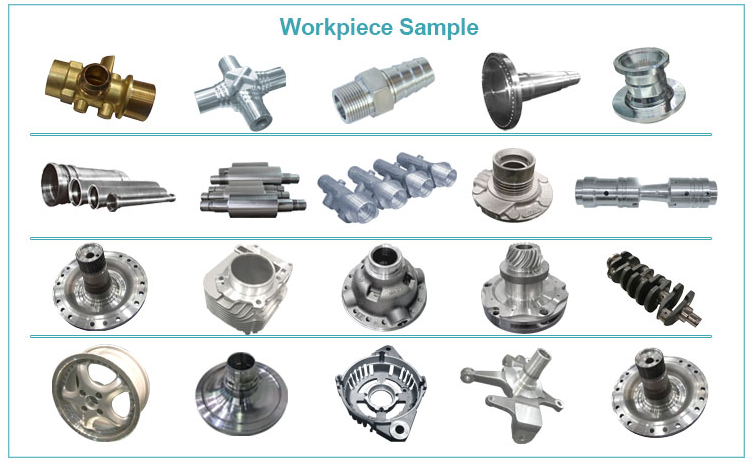

DT40H Dalian DMTG CNC Turning Center Slant Bed Torno CNC Lathe with Driven Tools

DT40H

Model


DT-40H

Main   specifications



Max.   swing over bed

mm

580

Max.   turning length

mm

555/1055

Max.   turning diameter(shaft/disc)

mm

350/350

Type   of guideway


Linear

Angle   of bed


40°

Headstock

Chuck   size


8”

Spindle   nose


A2-6

Spindle   bore

mm

70

Bar   capacity

mm

51

Spindle   speeds

rpm

35 – 4000

Spindle   motor

kw

11/15

Turret

Number   of tool stations


12

Type


BMT

Shank   size for square tool

mm

25x25

Index   time (adjacent pocket)

s

0.31

Index   time (360°)

s

0.78

Boring   bar tool holder

mm

Max. 40mm

Live   tooling Motor

Kw

5.5/7.5

Max.   live tool drilling capacity

mm

φ22×0.2

Max.   live tool tapping capacity

mm

M30x1.5

Max.   live tool milling capacity

mm

25x15x40(Dia.*Depth*Speed)

Max.   live tool turning speed

Rpm

5000

Travels

X   axis

mm

215

Z   axis

Mm

555/1055

X   axis rapid travel

m/min

30

Z   axis rapid travel

m/min

30

Tailstock

Quill   diameter

mm

85

Quill   inside taper


MT# 5

Quill   travel

mm

140

Tailstock   travel

mm

500/960

Accuracy

Positioning

mm

X:0.005;  Z: 0.007/0.008

Repeatability

mm

X:0.003;  Z: 0.004/0.005

Others

Machine   size (excludes chip conveyor)

mm

2922/3422 X 1860 X 2010

Net   weight

kg

5300/6300



Standard Configurations

Item

Base   Machine Configuration

1

Fanuc 0i TF(5) Plus CNC control, 10.4” screen

2

8” solid hydraulic   3-jaw chuck

3

12 position servo   live tooling turret

4

40 degree angle bed

5

THK Roller type   linear guides

6

Chip conveyor and   chip bucket

7

Hydraulic tailstock

8

Coolant system

9

Enclosure Guarding

10

RS-232 interface   and DNC function

11

Tools

12

English   documentation


3

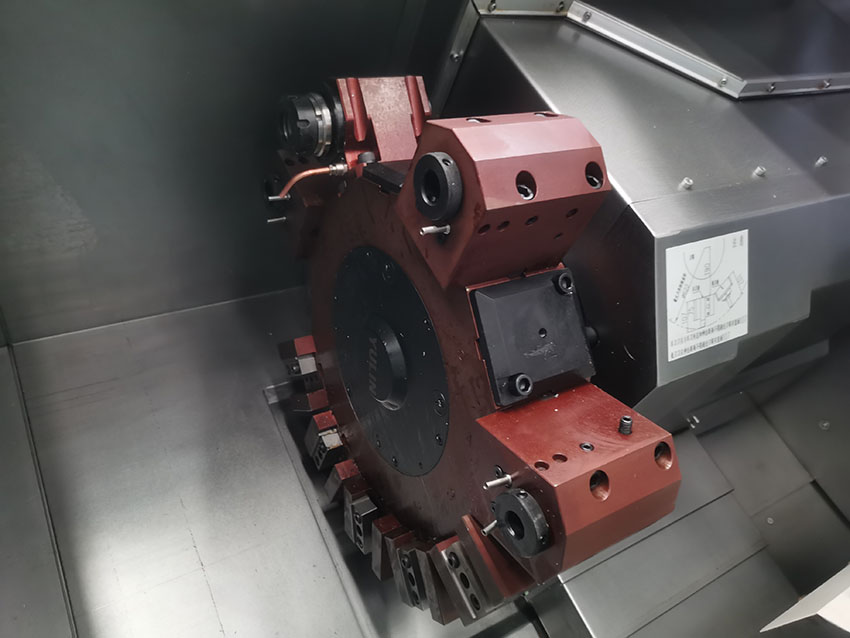

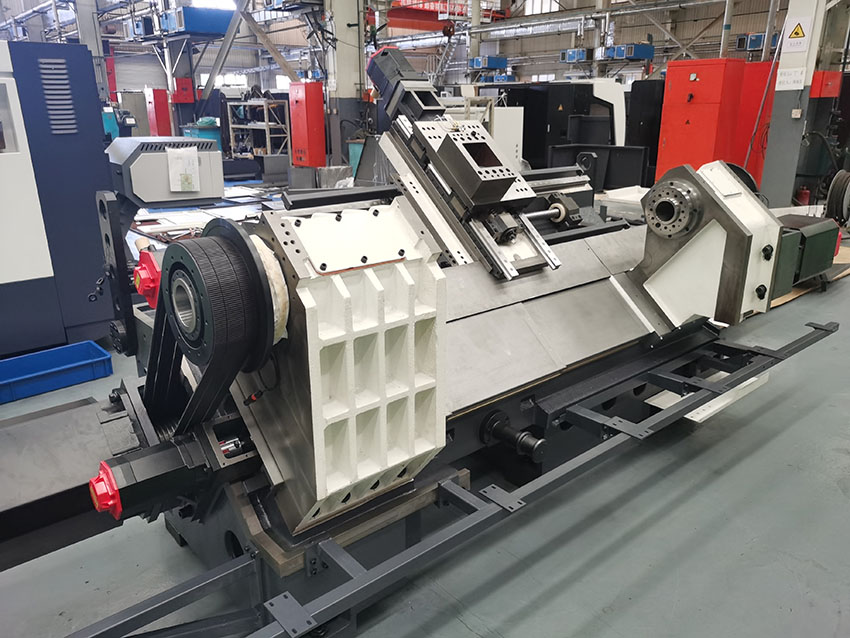

Innder Side of DT-30H

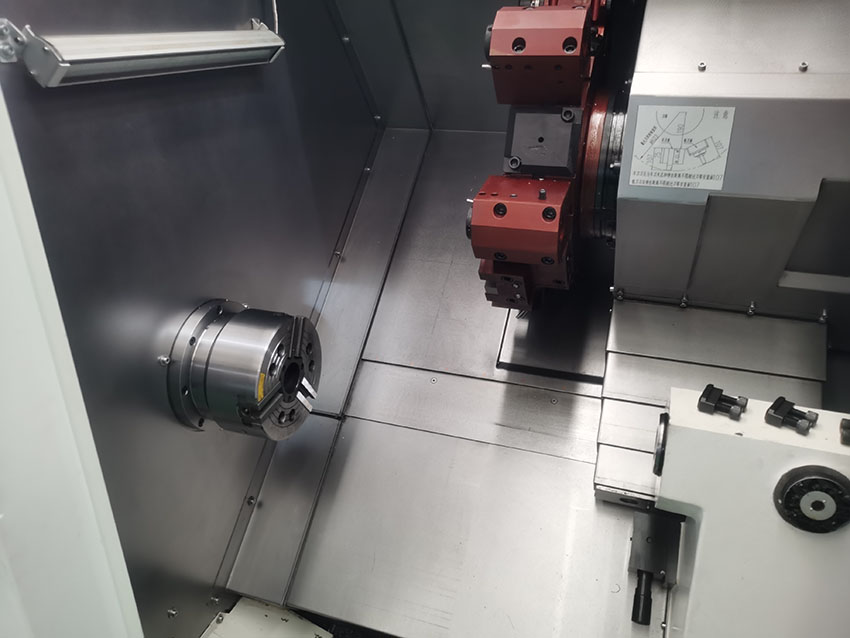

Inner Side 1 of DT-30H
