DL30M
DMTG
8458.1100

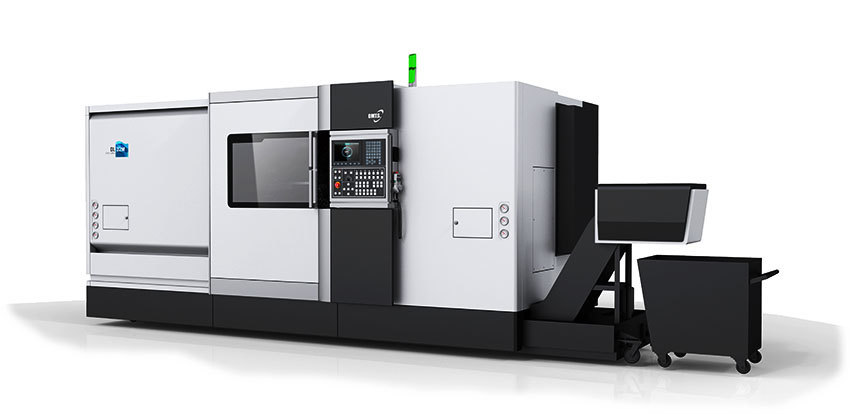

The new DL series of CNC slant bed lathes with rigid cast-iron structre hardened(50-52HRC) and ground guarantee high precision and stability.The machine bed is made of heat stabilised cast-iron.Varous configuration are available with sindles from ASA 5" to ASA 15",power up to 30kW and tuming length up to 3000mm,A wide range of options and accessories allow the machine to be highly customised for very accurate and reliable machining.
Model | DL30M | |
Main specifications | mm | |
Max. swing over bed | 625 | |
Max. swing over cross slide | 380 | |
Max. turning length | 1000/1500 | |
Max. turning diameter | 600 | |
Type of guideway | Linear guide | |
Angle of bed | 45° | |
Headstock | ||
Chuck size | 12“ | |
Spindle nose | A2-8 | |
Spindle bore (mm) | 88 | |
Spindle speeds | 3000 | |
Spindle motor | 18.5/22kw | |
Turret | ||
Type of turret | Hydraulic | |
Number of tool stations | 12 | |
Shank size of tool | 25x25 | |
Index time (adjacent pocket) | 0.45 s | |
Index time (360°) | 1.6 s | |
Feed rates | ||
X axis travel | 140 | |
Z axis travel | 1100/1600 | |
X axis | 24 m/min | |
Z axis | 24 m/min | |
Tailstock | ||
Quill diameter | 140 | |
Quill inside taper | MT5 | |
Quill travel | 150 | |
Other | ||
Machine size (LxWxH) | DL30M/1000 | 5700 X 2200 X 2150 |
DL30M/1500 | 6450 X 2200 X 2150 | |
Net weight | DL30M/1000 | 8500 Kg |
DL30M/1500 | 9500 Kg | |
Standard Accessories | ||
3-Jaw hydraulic non-thru hole chuck | Fully enclosed guarding | Heavy duty chain chip conveyor |
1 piece bed casting | Chip cart | Fanuc 0i-TF controls |
Hydraulic tailstock quill | Tail Stock | Foundation Bolts and Pads |
Tool box | ||
Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the slant bed cnc lathe machine. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:
The slant bed cnc lathe machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
When the slant bed cnc lathe machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
During this period of one year warranty , if the slant bed cnc lathe machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
During this period of warranty, if there is something wrong with the slant bed cnc lathe machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
After the warranty, we charge only cost price for maintaining the slant bed cnc lathe machines within three years.
Other after-sale terms can be agreed by buyer and seller in addition.
