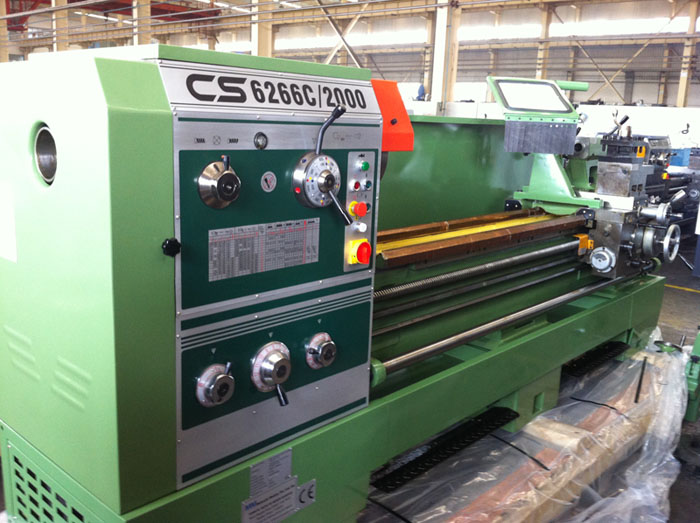

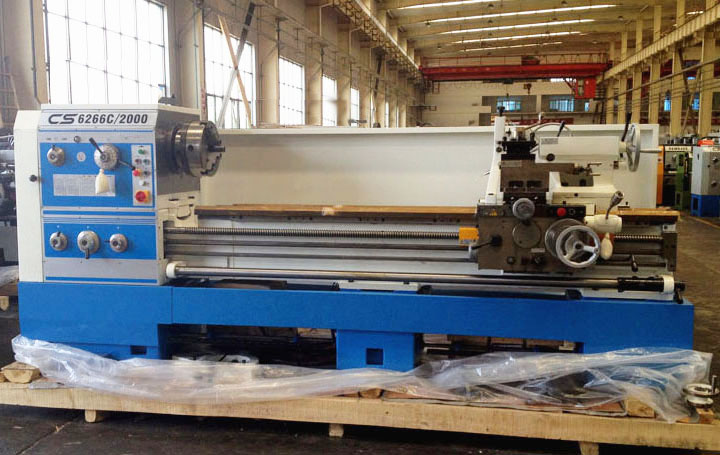

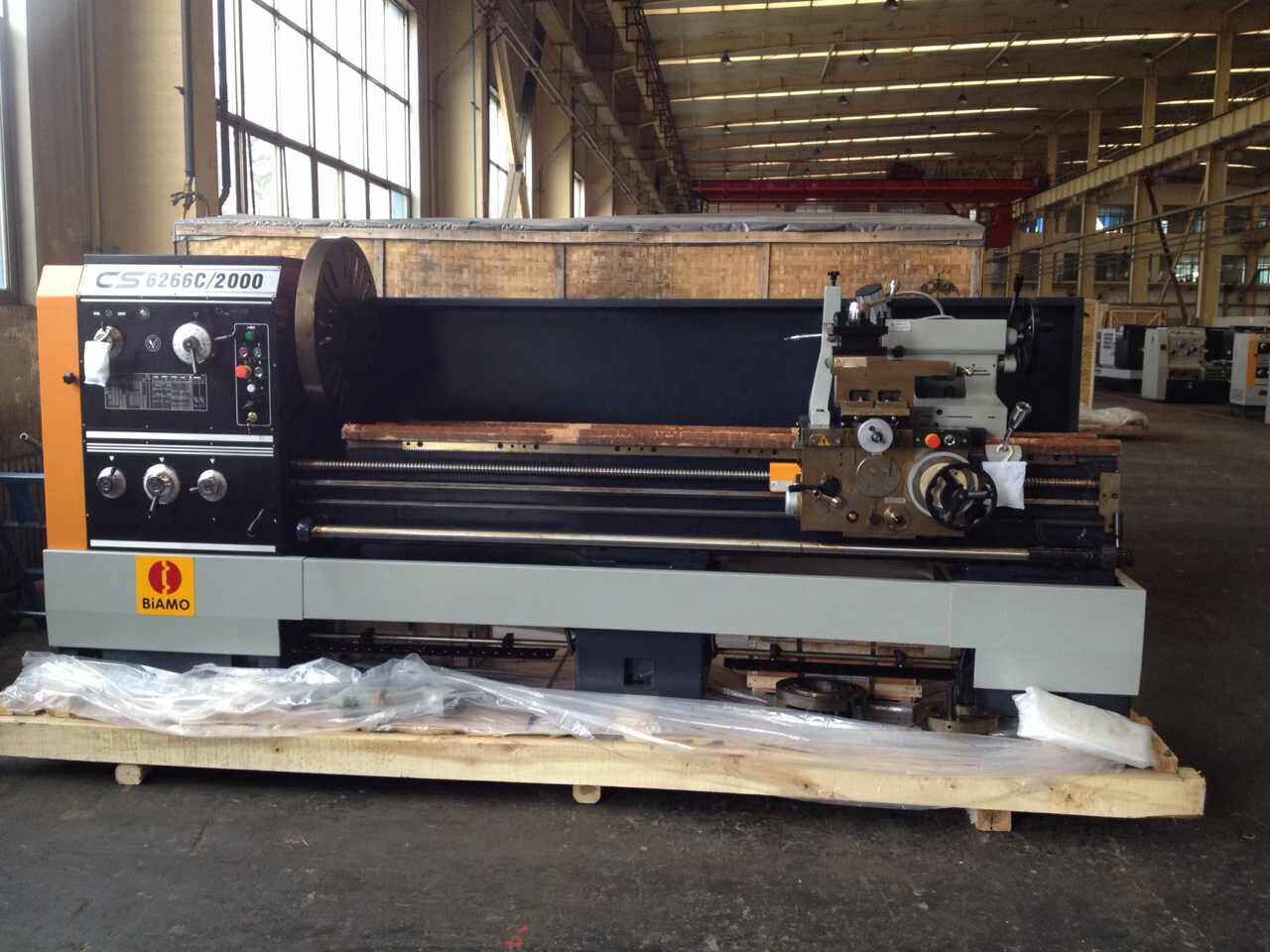

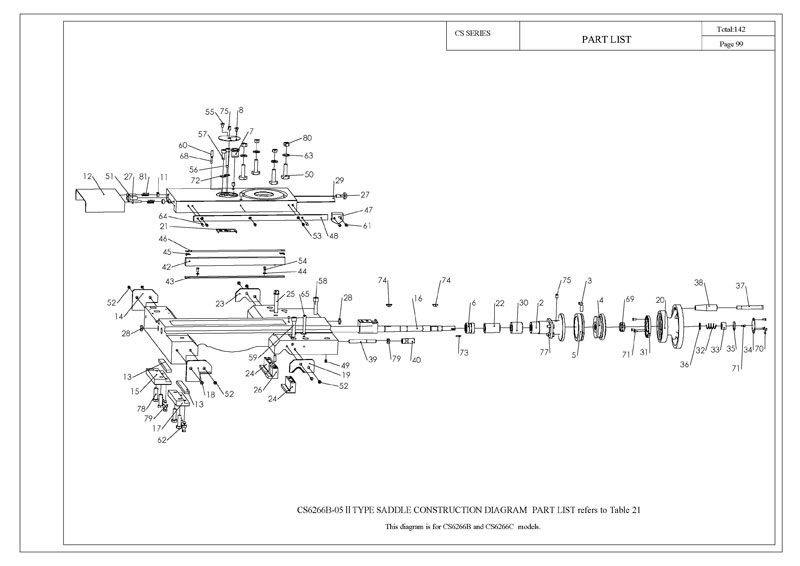

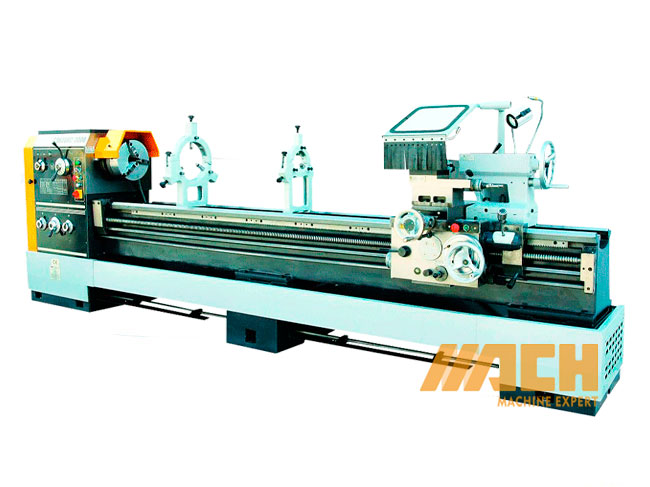

CS6266C Bochi Horizontal Gap Bed Engine Lathe Machine
1. It can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
2. Threading Inch, Metric, Module and D.P.;
3. Perform drilling, boring and groove broaching;
4. Machine all kinds of flat stocks and those in irregular shapes;
5. Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
6. Both Inch and Metric system are used on these series lathes; it’s easy for people from different measuring systems countries;
7. There are hand brake and foot brake for users to choose;
8. These series lathes operate on power supply of different voltages (220V、380V、420V) and different frequencies (50Hz、60Hz).
| SPECIFICATIONS | UNIT | CS6250C | CS6266C | CQ6280C |
| Capacity | Maximum swing diameter over bed | mm | Φ500 | Φ660 | Φ800 |
| Maximum swing diameter in gap | mm | Φ710 | Φ870 | Φ1000 |
| Maximum swing diameter over slides | mm | Φ300 | Φ420 | Φ560 |
| Maximum workpiece length | mm | 1000/1500/2000/3000 | 1000/1500/2000/3000 | 2000/3000 |
| Spindle | Spindle bore diameter | mm | Φ105 | Φ105 | Φ105 |
| Type of spindle nose | no | ISO 702/II NO.8 com-lock type | ISO 702/II NO.8 com-lock type | ISO 702/II NO.8 com-lock type |
| Spindle speed | rpm | 12 steps 36-1600 | 12 steps 36-1600 | 12 steps 30-1400 |
| Spindle motor power | KW | 7.5 | 7.5 | 7.5 |
| Tailstock | Diameter of quill | mm | Φ90 | Φ90 | Φ90 |
| Maximum travel of quill | mm | 150 | 150 | 150 |
| Taper of quill (Morse) | MT | 5 | 5 | 5 |
| Turret | Tool O.D. size | mm | 25X25 | 25X25 | 25X25 |
| Feed | Maximum X travel | mm | 145 | 145 | 145 |
| Maximum Z travel | mm | 320 | 310 | 320 |
| X feed range | mm/r | 65 kinds 0.063-2.52 | 65 kinds 0.063-2.52 | 65 kinds 0.063-2.52 |
| Z feed range | mm/r | 65 kinds 0.027-1.07 | 65 kinds 0.027-1.07 | 65 kinds 0.027-1.07 |
| Metric threads | mm | 22 kinds 1-14 | 22 kinds 1-14 | 22 kinds 1-14 |
| Inch threads | t.p.i | 25 kinds 28-2 | 25 kinds 28-2 | 25 kinds 28-2 |
| Module threads | πmm | 18 kinds 0.5-7 | 18 kinds 0.5-7 | 18 kinds 0.5-7 |
| Diametric pitch threads | t.p.i.π | 24 kinds 56-4 | 24 kinds 56-4 | 24 kinds 56-4 |
| Other | Cooling pump motor power | KW | 0.06 | 0.06 | 0.06 |
| Length | mm | 2632/3132/3632/4632 | 2632/3132/3632/4632 | 3365/4365 |
| Width | mm | 975 | 975 | 1340 |
| Height | mm | 1270 | 1450 | 1490 |
| Weight | Kg | 2100/2300/2500/2900 | 2200/2400/2600/3000 | 3000/3200 |
3 Jaw Chuck and Adapter
4 Jaw Chuck and Adapter
Drive Plate
Face Plate
4-Way Tool Post
Stead Rest 120-260mm
Follow Rest
Drive Plate
Foot Brake
Full-Length Splash Guard ( Short Type on 3M Lathe )
Longitudinal Mechanical Stop ( without on 3M Lathe )
Halogen Light
All Standard Accessories Taper Turning Attachment
Thread Chasing Dial

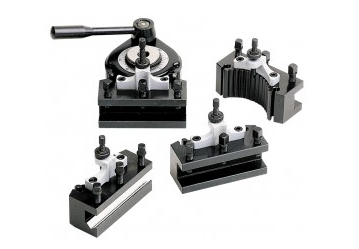

Quick Change Tool Post ( American Type or European Type )
SINO 2 Axis DRO
Live Center
