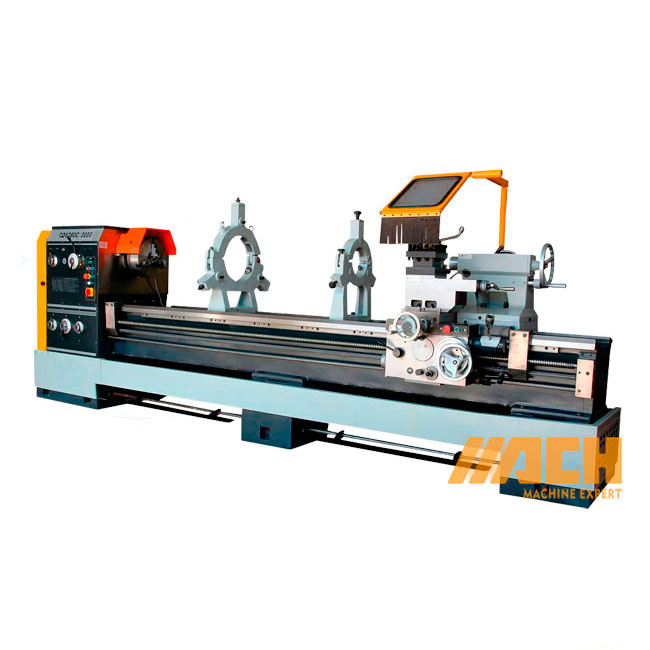

CQ6280B Bochi Precision Automatic Lathe Machine Tool

Bochi Lathe Machine Tool
Minimum Order Quantity: 1
Color:
Quantity:
  • CQ6280B

  • MACH

CQ6280B Bochi Precision Automatic Lathe Machine Tool

features

1. It can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
2. Threading Inch, Metric, Module and D.P.;
3. Perform drilling, boring and groove broaching;
4. Machine all kinds of flat stocks and those in irregular shapes;
5. Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
6. Both Inch and Metric system are used on these series lathes; it’s easy for people from different measuring systems countries;
7. There are hand brake and foot brake for users to choose;
8. These series lathes operate on power supply of different voltages (220V380V420V) and different frequencies (50Hz60Hz).



Specifications


Specifications UNIT CS6250B CS6266B CQ6280B
Maximum swing diameter over bed mm Φ500 Φ660 Φ800
Maximum swing diameter in gap mm Φ710 Φ870 Φ1000
Maximum swing diameter over slides mm Φ300 Φ420 Φ560
Maximum workpiece length mm 750/1000/1500/2000/3000 1000/1500/2000/3000 2000/3000
Spindle bore diameter mm Φ82 Φ82 Φ82
Type of spindle nose no ISO 702/II NO.8 com-lock type ISO 702/II NO.8 com-lock type ISO 702/II NO.8 com-lock type
Spindle speed rpm 24 steps 9-1600 24 steps 9-1600 24 steps 8-1400
Spindle motor power KW 7.5 7.5 7.5
Diameter of quill mm Φ75 Φ75 Φ90
Maximum travel of quill mm 150 150 150
Taper of quill (Morse) MT 5 5 5
Tool O.D. size mm 25X25 25X25 25X25
Maximum X travel mm 145 145 145
Maximum Z travel mm 320 320 320
X feed range mm/r 93 kinds 0.028-6.43 93 kinds 0.028-6.43 93 kinds 0.028-6.43
Z feed range mm/r 93 kinds 0.012-2.73 93 kinds 0.012-2.73 93 kinds 0.012-2.73
Metric threads mm 48 kinds 0.5-224 48 kinds 0.5-224 48 kinds 0.5-224
Inch threads t.p.i 48 kinds 72-1/4 48 kinds 72-1/4 48 kinds 72-1/4
Module threads πmm 42 kinds 0.5-112 42 kinds 0.5-112 42 kinds 0.5-112
Diametric pitch threads t.p.i.π 42 kinds 56-1/4 42 kinds 56-1/4 42 kinds 56-1/4
Cooling pump motor power KW 0.06 0.06 0.06
Length mm 2382/2632/3132/3632/4632 2632/3132/3632/4632 3365/4365
Width mm 975 1050 1340
Height mm 1230 1350 1430
Weight Kg 2050/2100/2300/2500/2900 2400/2600/2800/3000 3300/3700





Photos

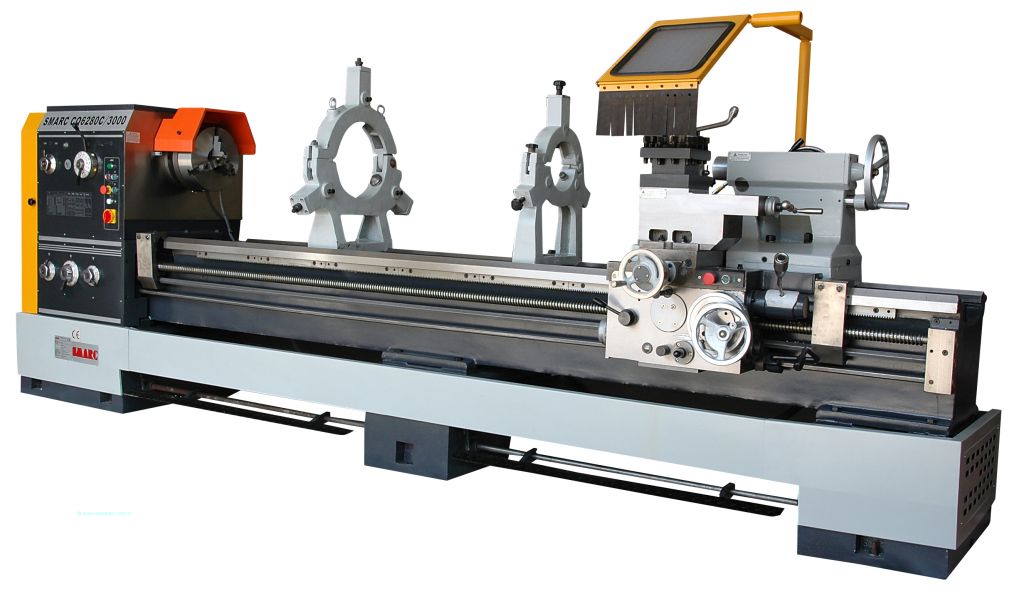

CQ6280B Bochi Precision Automatic Lathe Machine Tool (2)





Standard-Parts

3 Jaw Chuck and Adapter
4 Jaw Chuck and Adapter
Drive Plate
Face Plate
4-Way Tool Post
Stead Rest 120-260mm
Follow Rest
Drive Plate
Foot Brake
Full-Length Splash Guard ( Short Type on 3M Lathe )
Longitudinal Mechanical Stop ( without on 3M Lathe )
Halogen Light
All Standard Accessories





Optional-Parts

Taper Turning Attachment
Thread Chasing Dial
Quick Change Tool Post ( American Type or European Type )
SINO 2 Axis DRO
Live Center





Guarantee

Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the lathe machine tools. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:

  • The lathe machine tools are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
  • When the lathe machine tools are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
  • During this period of one year warranty , if the lathe machine tools were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
  • During this period of warranty, if there is something wrong with the lathe machine tool, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
  • After the warranty, we charge only cost price for maintaining the lathe machine tool within three years.
  • Other after-sale terms can be agreed by buyer and seller in addition.
