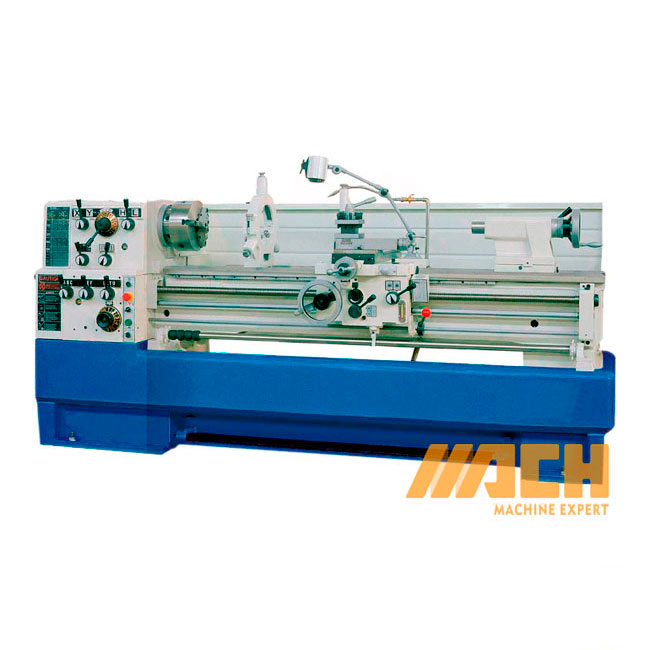

C6251 Conventional Universal Precision Engine Lathe Machine
| SPECIFICATION | MODELS |
| C6251×1000/1500/2000/3000 | C6256×1500/2000/3000 |
| CAPACITY |
| Swing over red | 510mm(20") | 560mm(22") |
| Swing in gap | 300mm(11-7/8") | 350mm(13-3/4") |
| Swing of gap | 738mm(29") | 788mm(31") |
| Length of gap | 200mm(8") |
| Distance between centers | 1500mm(60") | 2000mm(78") | 1500mm(60") | 2000mm(78") |
| Center height | 1135mm | 1160mm |
| Width of bed 350mm(13-3/4") | |
| HEADSTOCK |
| Spindle nose | D1-8 |
| Spindle bore | 80mm(3-1/8") |
| Taper of spindle bore | No.7Morse |
| Range of spindle speed | 12changes25-1600r/min |
| FEEDS AND THREADS |
| Max.travel of compound rest | 130mm(5-1/8") |
| Max.travel of cross slide | 326mm(12-15/16") |
| Leadscrew pitch | 6mmOr4T.P.L |
| Max.section of tool | 25×25mm(1×1") |
| Longitudinal feeds range | 35kinds0.059-1.646mm/rev(0.0022"-0.0612"/rev) |
| Cross feeds range | 35kinds0.020-0.573mm(0.00048"-0.01354") |
| Metric threads range | 47kinds0.2-14mm |
| Inch threads range | 60kinds2-112T.P.L |
| Diametrical pitches range | 50kinds4-112D.P. |
| Module pitches range | 39kinds0.1-7M.P. |
| TALLSTOCK |
| Dia of tailstock sieeve | 75mm(3") |
| Travel of tailstock sleeve | 180mm(7") |
| Morse taper of tailstock sleeve | No.5Morse |
| Cross adjustment | ±13mm(±1/2") |
| MOTOR |
| Power of main motor | 7.5kw(10HP)3PH |
| Power of coolant pump | 0.1kw(1/8HP),3PH |
| DIMENSION AND WEIGHT |
| Overall dimension(L×W×H)cm | 290×112×143 | 340×112×143 | 290×112×146 | 340×112×143 |
| Packing size(L×W×H)cm | 296×113×182 | 346×113×182 | 296×113×182 | 346×113×182 |
| Net weight/Gross weight | 2335/2700 | 2685/3070 | 2370/2740 | 2720/3110 |
3-jaws self centering chuck
4-jaws independent chuck
4 station tool post
Steady rest
Follow rest
Face Plate
Taper sleeve
Full length splash guard and chip tray
Halogen working lamp
Coolant system
Longitudinal stop
Dead centers
Thread Chasing dial
Operation tool kit with tools
Chuck Guard
Protection for leadsrew
Protection for toolpost
2 axis SINO DRO
3 axis SINO DRO
CE standard electronic cabinet
Quick Change Tool Post ( European Type )
Taper Turning Attachment
Live Center MT4
Driving Plate
Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the engine lathe machine. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows.
- The engine lathe machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
- When the engine lathe machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
- During this period of one year warranty , if the engine lathe machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
- During this period of warranty, if there is something wrong with the engine lathe machines, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
- After the warranty, we charge only cost price for maintaining the engine lathe machines within three years.
- Other after-sale terms can be agreed by buyer and seller in addition.
