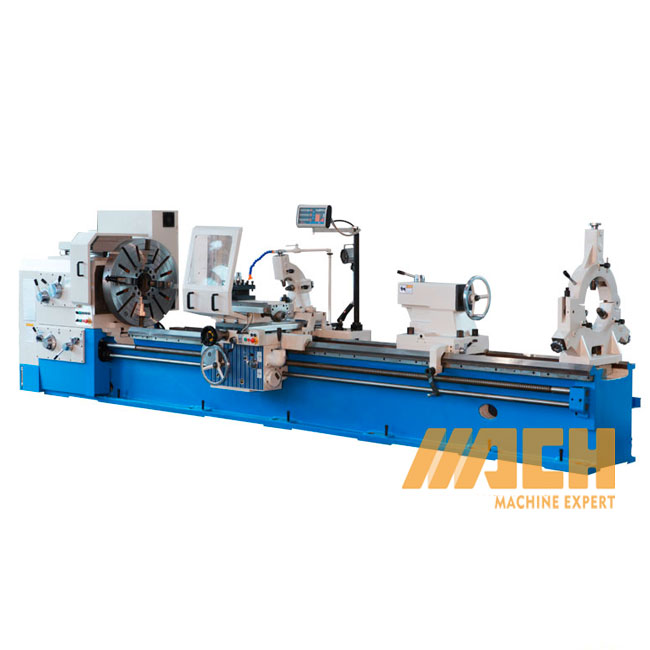

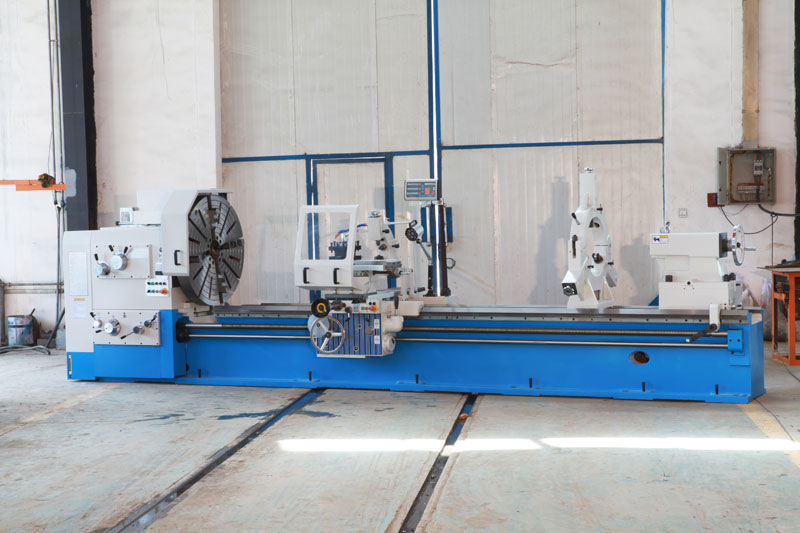

CWA Series
MACH
1. This series engine lathe machine is suitable for turning job of large diameter workpieces.
2. Machine is rigid, high productive, reliable and easy to operate.
3. Carriage has rigid traverse function and combines feed function.
4. This series engine lathe machine is good for paper mill industry, textile industry, rubber industry, power generating industry, defense and ship building industry. Especially good for machining big size tubes, flanges and rubber rolls.
MODEL | CWA61100 | CWA61125 | CWA61140 | CWA61160 |
Max.weight of workpiece | 8T | |||
Max.swing over bed | 1000mm | 1250mm | 1400mm | 1600mm |
Max.swing over cross slide | 620mm | 870mm | 1000mm | 1200mm |
Center distance | 1.5m 2m 3m 4m 5m 6m 8m 10m 12m | |||
Width of bed | 780mm | |||
Spindle hole | 130mm | |||
Spindle taper | metric 140# | |||
Spindle speeds | 3.15-315r/min or 2.5-250r/mm.types of rev:forward 21,backward 12 | |||
GEAR BOX-THREADS&FEEDS | ||||
Metric threads range(kinds) | 44 types 1-120mm | |||
Inch threads range(kinds) | 31types 1/4-24 tooth/hour | |||
Moudle threads range(kinds) | 45types 0.5-60mm | |||
Diametral threads range(kinds) | 38types 1/2-56DP | |||
Longitudinal feeds range(kinds) | 56types0.1-12mm | |||
Cross feed range(kinds) | 56types 0.05-6mm | |||
Rapid feed:Long/Cross | 3400mm/min,1700mm/min | |||
Distance between Center & Tool | 48mm | |||
Tool section | 45*45mm | |||
Cross slide travel | 650mm | |||
Compound rest travel | 280mm | |||

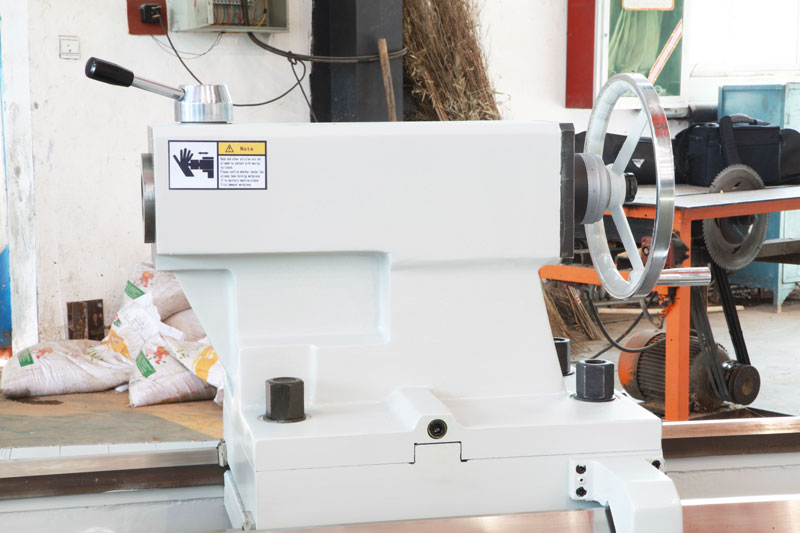

Sleeve diameter | 160mm | |||
Sleeve taper | metrics 80#orM6# | |||
Sleeve travel | 300mm | |||
Main motor | 22kw | |||
Coolant motor | 0.15kw | |||
Rapid feed motor | 1.5kw |
4-jaw chuck ( 800mm )
Center
Lighting unit
Cooling unit
Special tools
3/4- jaw chuck (320mm/800mm/1000mm)

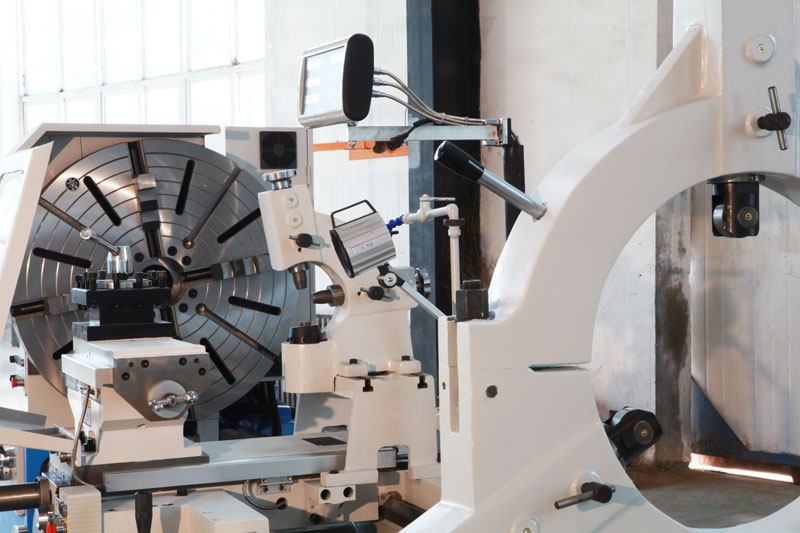

Steady rests(40-350mm/50-470mm/100-520mm)
Roller supporting device(180-520mm)
Following rest (30-120mm)
Taper turning device
Boring device
Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the heavy duty engine lathe machine. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:
