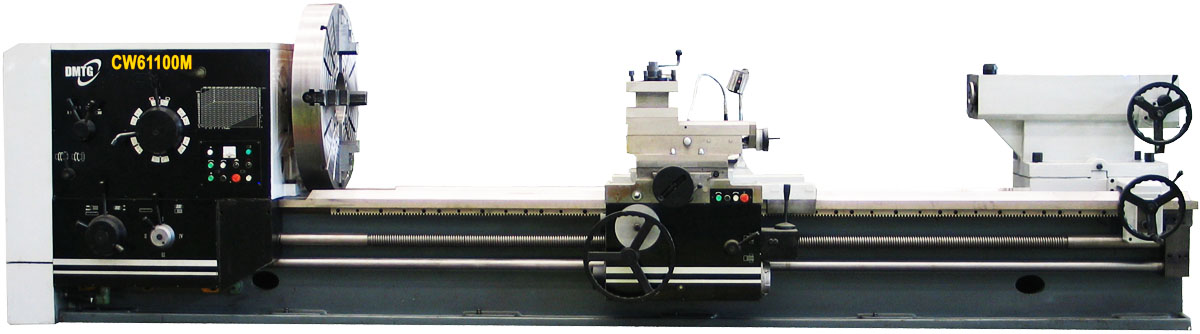

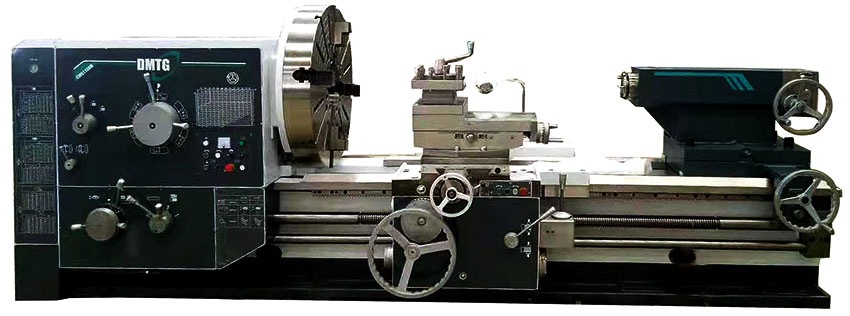

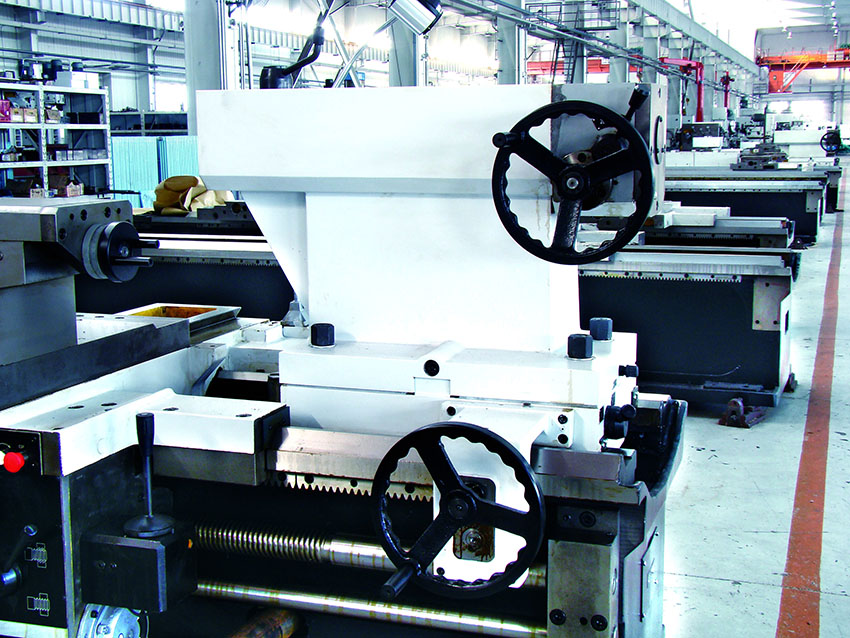

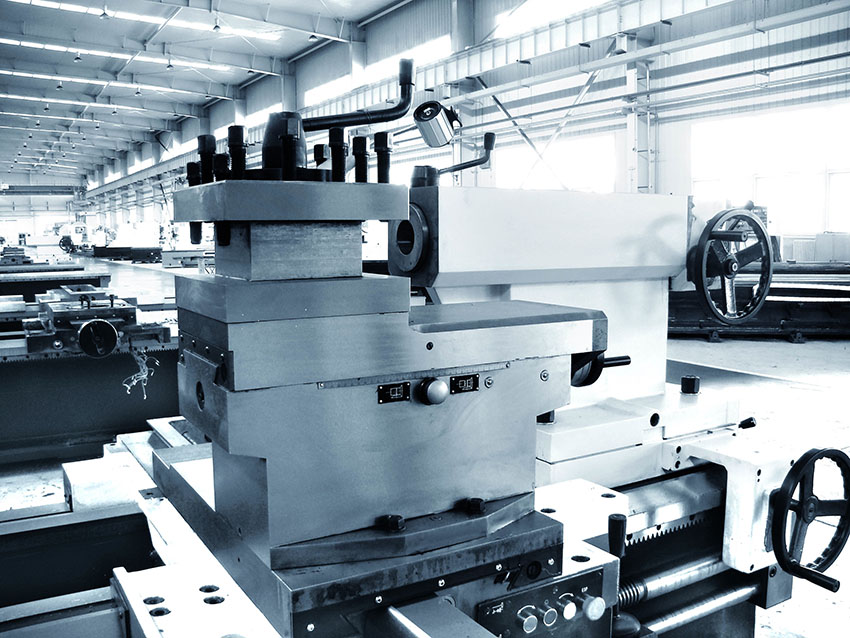

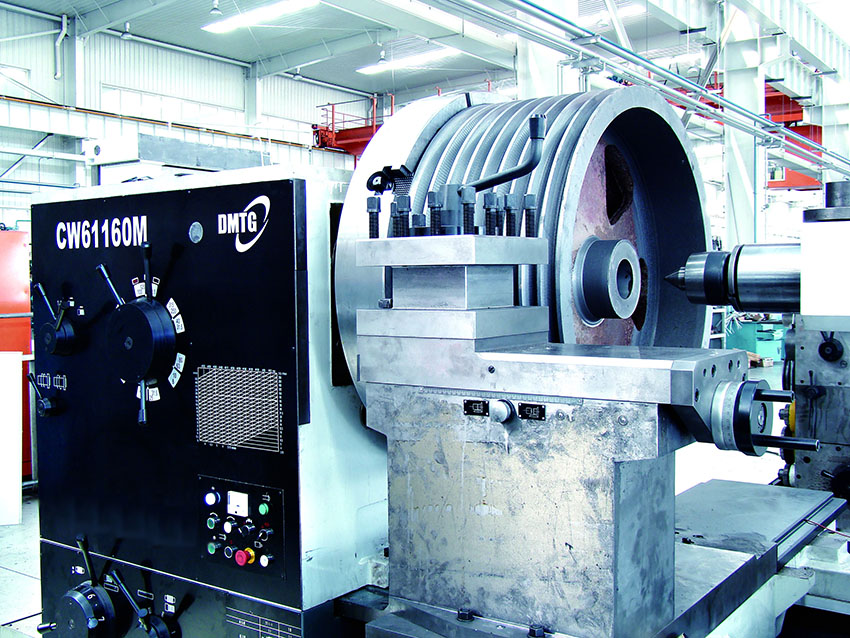

Dalian DMTG Machine Tool Heavy Duty Manual Lathe Machine
Maximum Loading Weight of workpiece: 6000 Kgs
Main Specification:
Model | CW61100M | CW61125M | CW61140M | CW61160M | |
Capacity | |||||
Max. swing over bed mm | 1000 | 1250 | 1400 | 1600 | |
Max. swing over carriage | 630 | 880 | 1030 | 1230 | |
Distance between Center | 1500/2000/3000/4000/5000/6000/8000 mm | ||||
Max. Turning length | 1300/1800/2800/3800/4800/5800/7800 mm | ||||
Width of guide way | 755 mm | ||||
Max. Loading weight | 6000kg | ||||
Headstock | |||||
Spindle nose | A2-15 | ||||
Spindle bore mm | 130 | ||||
Spindle speeds | Forward: 3.15-315rpm (21 speeds) Reverse: 3. 5-291rpm (12 speeds) | ||||
Spindle Motor | 22KW | ||||
Travel | |||||
Travel of cross slide mm | 580 | 670 | 825 | ||
Travel of top slide mm | 300 | ||||
Tool mounting bottom to center line | 48mm | ||||
Max. size of tool shank | 45x45mm | ||||
Swivel range of top slide | ±90° | ||||
Feed | |||||
Cross feed (mm/rev) | (56 kinds) 0.1~12.0 | ||||
Longitudinal feed (mm/rev) | (56 kinds) 0.05~6.0 | ||||
Compound slide feed (mm/rev) | 0.025~3.0 | ||||
Range of inch threads TPI | (31 kinds) 1/4~28 | ||||
Range of metric threads mm | (44 kinds) 1~120 | ||||
Range of module threads mm | (45 kinds) 0.5~60 | ||||
Range of diametric threads DP | (38 kinds) 1/2~56 | ||||
Cross rapid travel | 3.74m/min | ||||
Longitudinal rapid travel | 1.87m/min | ||||
Compound slide rapid travel | 0.935m/min | ||||
Tailstock | |||||
Taper of tailstock quill | Metric 80 | ||||
Travel of tailstock quill mm | 300 | ||||
Diameter in tailstock quill mm | 160 | ||||
Machine Size | |||||
Overall length mm | 4450/4950/5950/6950/7950/8950/10950 | ||||
Overall width mm | 1855 | 1955 | 2010 | 2110 | |
Overall height mm | 1780 | 1910 | 1980 | 2080 | |
Machine Weight | |||||
D.B.C 1500mm | 8000 kg | 8700 kg | 9000 kg | 9500 kg | |
D.B.C 2000mm | 9000 kg | 9700 kg | 10000 kg | 10500 kg | |
D.B.C 3000mm | 10000 kg | 10700 kg | 11000 kg | 11500 kg | |
D.B.C 4000mm | 11000 kg | 11700 kg | 12000 kg | 12500 kg | |
D.B.C 5000mm | 12000 kg | 12700 kg | 13000 kg | 13500 kg | |
D.B.C 6000mm | 13000 kg | 13700 kg | 14000 kg | 14500 kg | |
D.B.C 8000mm | 15000 kg | 15700 kg | 16000 kg | 16500 kg | |
