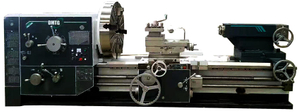

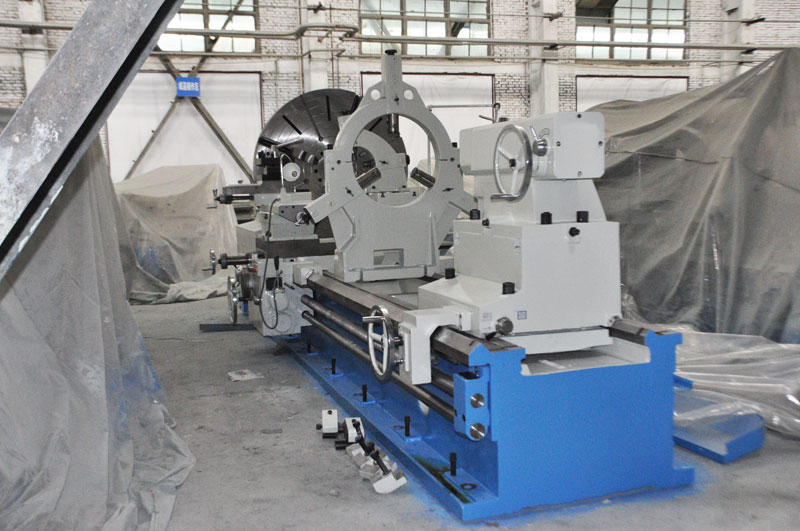

1. This series machine is suitable for turning job of large diameter workpieces.
2. Machine is rigid, high productive, reliable and easy to operate.
3. Carriage has rigid traverse function and combines feed function.
4. This series machine tool is good for paper mill industry, textile industry, rubber industry, power generating industry, defense and ship building industry. Especially good for machining big size tubes, flanges and rubber rolls.

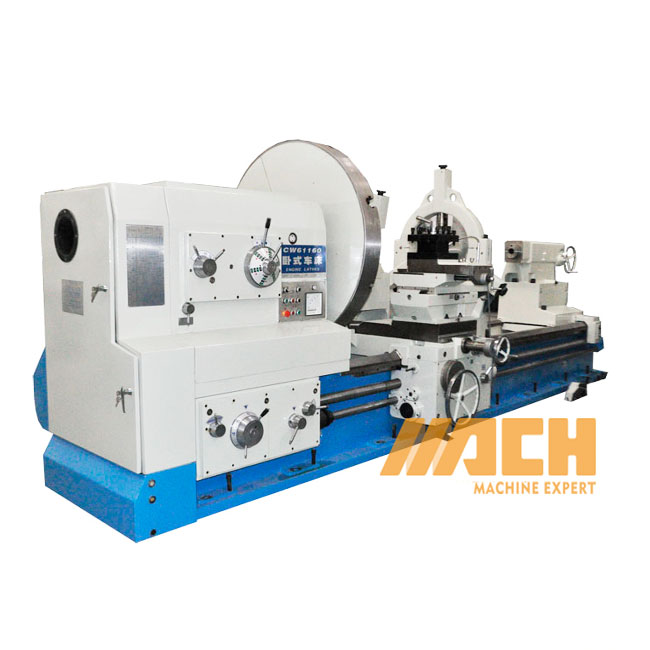

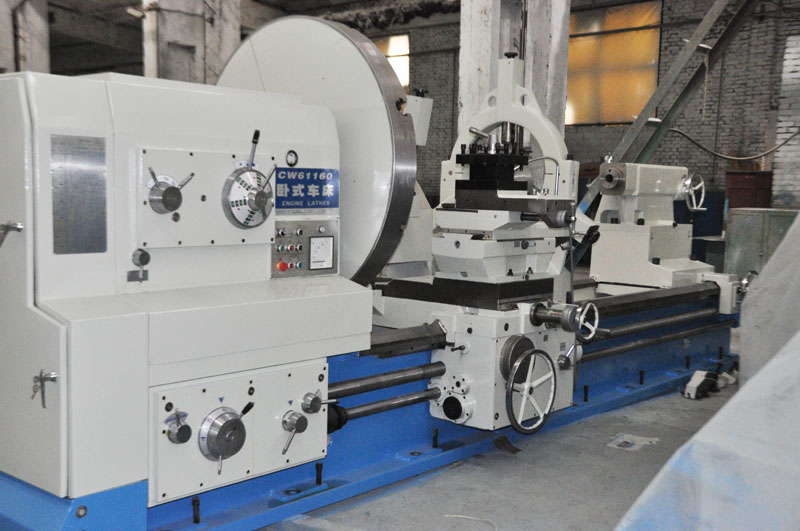

Model | CW61140 | CW61160 | CW61180 | |
CW62140 | CW62160 | CW62180 | ||
Swing over bed | mm(in) | 1400(56) | 1600(64) | 1800(72) |
Swing over gap | mm(in) | 1930(77) | 2110(84) | |
Swing over carriage | mm(in) | 1100(44) | 1280(51) | 1480(59) |
Maximum turning length | mm(in) | 1500-16000(60-640) | ||
Maximum weight of workpiece batween centers | kg | 800,010,000 | ||
Width of the bed | mm(in) | 970(39) | ||
Spindle noses No. | ISO | A2-15 | ||
Diameter of spindle front bearing | mm(in) | 200(8),220(8.8) | ||
Diameter of spindle hole | mm(in) | 130(5.2),100(4) | ||
Taper hole of spindle | Metric No.140 | |||
Number of spindle speeds | ||||
Range of spindle speeds | r/min | 3.15-315 2.5-250(2-200) | ||
Main motor power | kw | AC22 | ||
Rapid travelling speed of motor power | kw | 1.5 | ||
Section of tool shank | mm(in) | 45×45(1.8×1.8) | ||

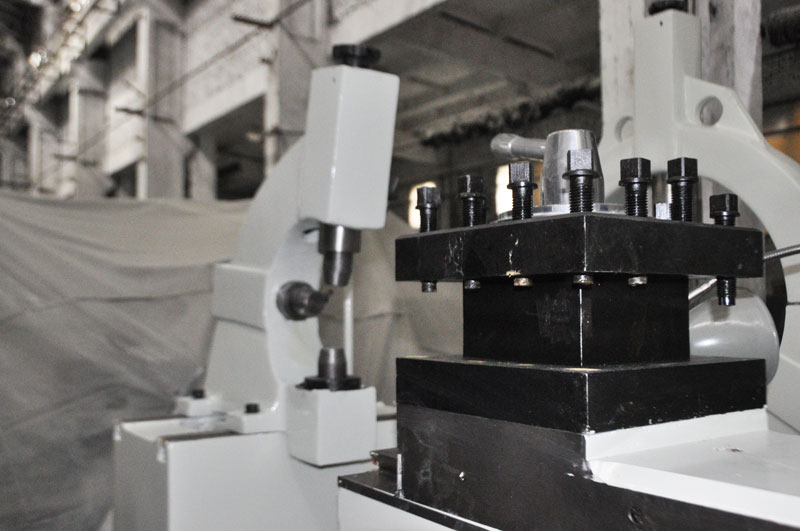

Swivel angle of tool post | ±90° | |||
Travel of transvers tool post | mm(in) | 200(8) | ||
Travel of longitudinal tool post | 200(8) | 400(16) | ||
travel of cross slide | mm(in) | 880(35) | ||
Rapid travelling speed of longitudinal tool post | mm/min | 935 | ||
Rapid travelling speed of transverse | mm/min | 1870 | ||
Rapid travelling speed of longitudinal | mm/min | 3740 | ||
Metric threads number and range | mm | 45,1-120 | ||
Inch threads number and range | T.P.I. | 42,30-1/4 | ||
Modul threads number and range | mm | 46,0.5-60 | ||
Diameter pitch threads number and range | D.P. | 48,60-0.5 | ||
Longitudinal number and range of feeds | m/rev | 97,0.064-12 | ||
Transverse number and range of feeds | m/rev | 97,0.032-6 | ||
Longitudinal tool post number and range of feeds | m/rev | 97,0.016-3 | ||
Diameter of tailstock quill | mm(in) | 160(6.4) 200(8) | ||
Taper hole of tailstock quill | Metric No.80,Morse No.6 | |||
Travel of tailstock quill | mm(in) | 300(12) | ||
Weight of the lathe with 3m b.c. | kg | 11200 | 12200 | 13200 |
Additional weight par 1m b.c. | kg | 1400 | ||
Machine overall dimension(length×width×height)(3m) | mm | 6360×2100×2300 | 6360×1960×2400 | 6360×2060×2500 |
4-jaw chuck ( 800mm )
Center
Lighting unit
Cooling unit
Special tools
3/4- jaw chuck (320mm/800mm/1000mm)

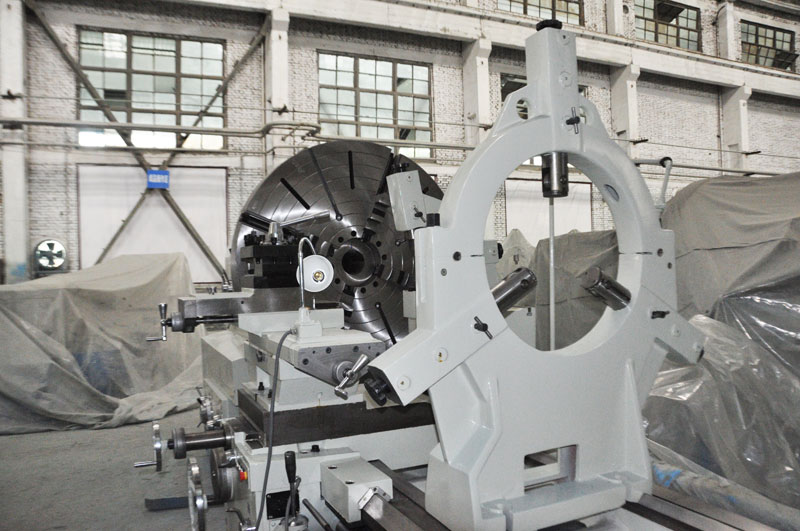

Steady rests(40-350mm/50-470mm/100-520mm)
Roller supporting device(180-520mm)
Following rest (30-120mm)
Taper turning device
Boring device
Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the heavy duty machine tool. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:
