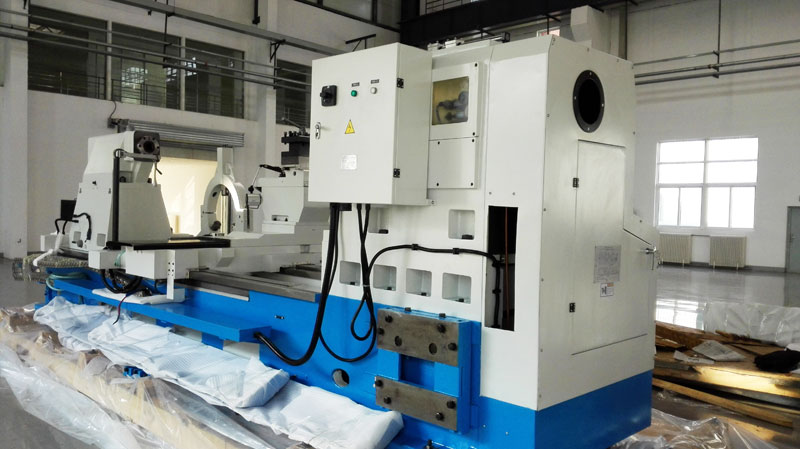

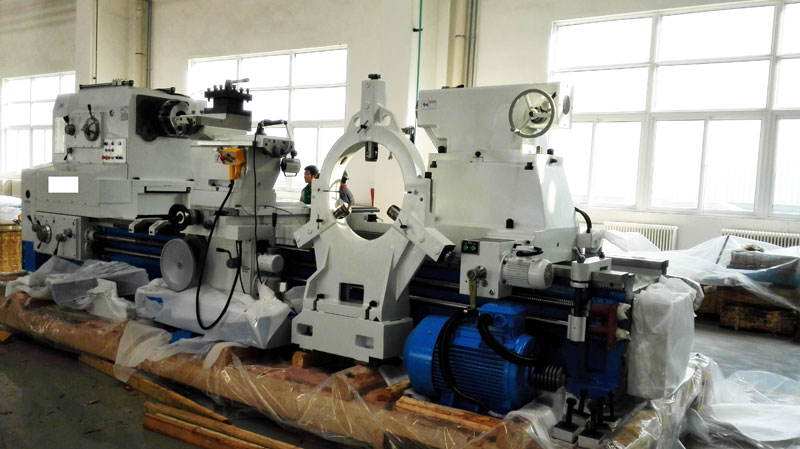

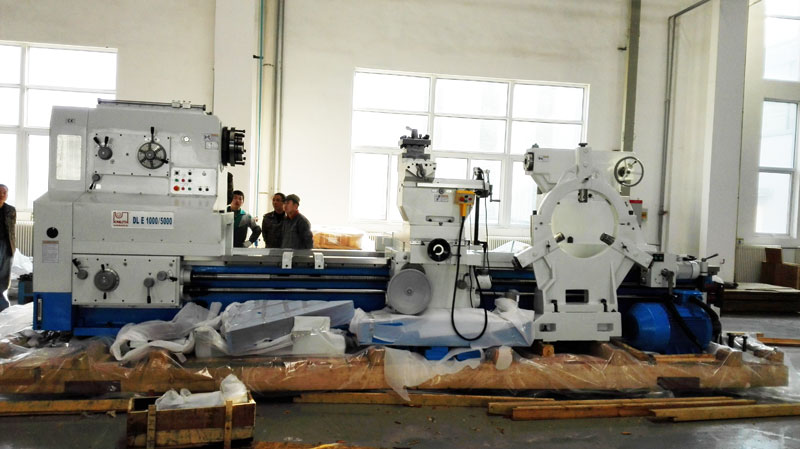

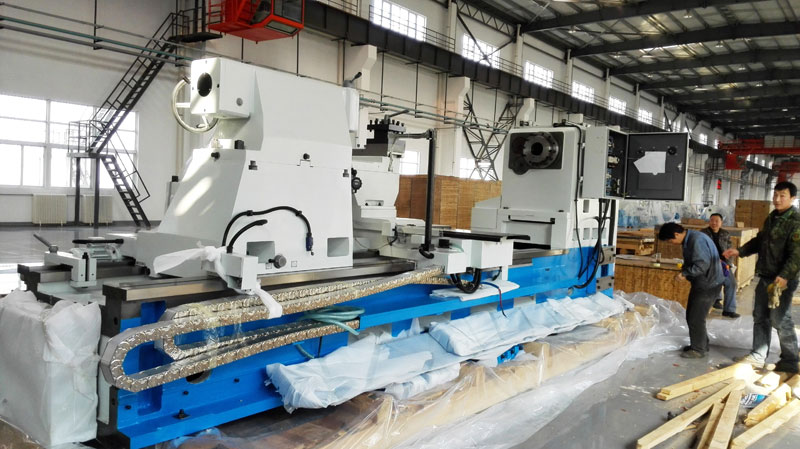

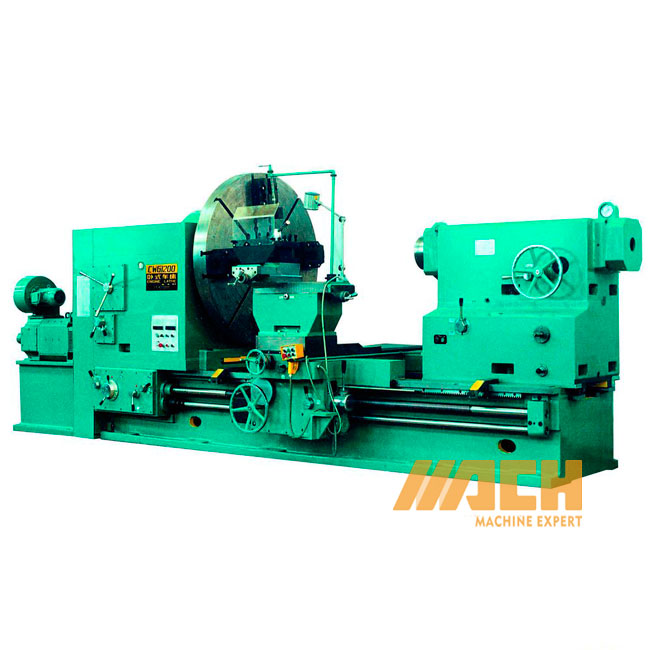

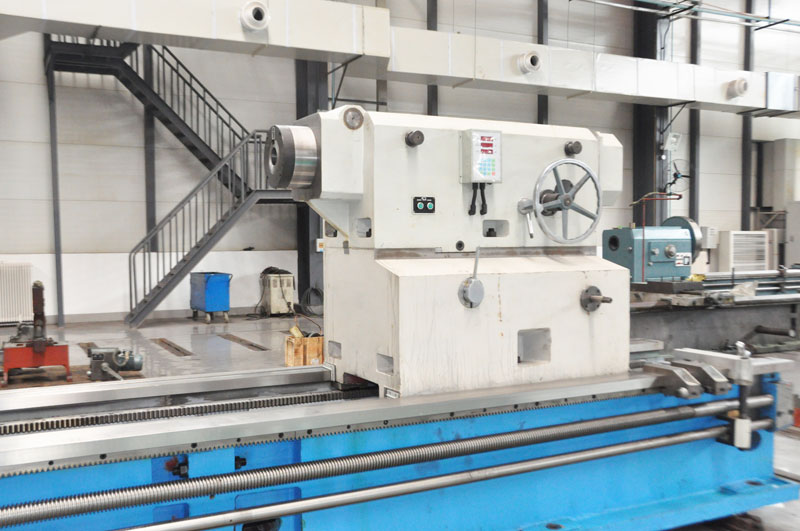

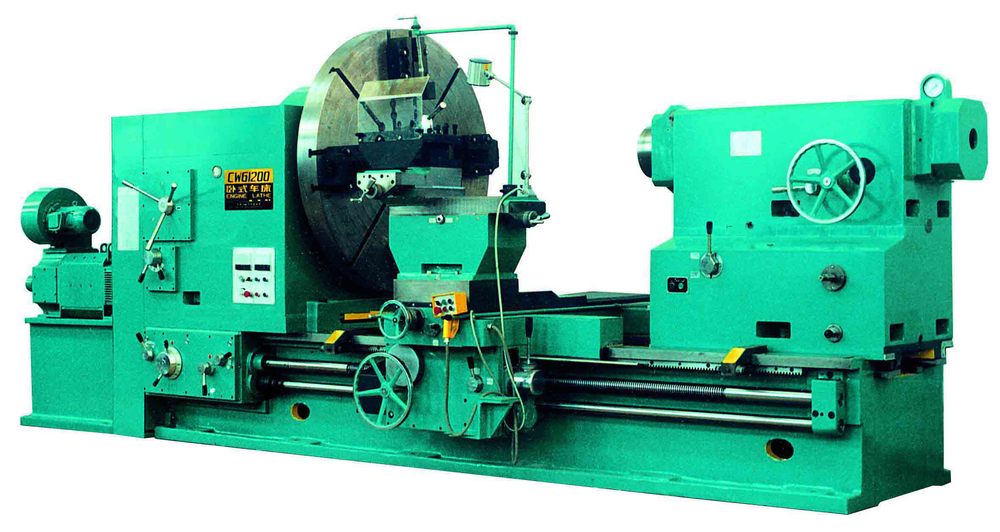

CW61200 Hot Sale Economic Horitional Large Sized Heavy Duty Lathe
Max. Swing Over Bed | 2,000 mm |
Max. Swing Over Cross Slide | 1,600 mm |
Max. Length of Workpiece | 2,000 mm |
Max. Length to Be Machined | 1,800 mm |
Max. Weights of Workpiece Between Centers | 10,000 KG |
Spindle Nose | ISO A2-15 |
Spindle Taper Hole | METRIC NO. 140 |
Spindle Bore | 100 mm |
Spindle Speed | MANUAL 21 STEPS, RANGE 2.5 TO 250 RPM |
Max. Travel of Cross Slide | 920 mm |
Max. Travel of Middle Compound | 400 mm |
Max. Travel of Top Tool Post | 200 mm |
Speeds of Rapid Traverse | |
Longitudinal | 3740 mm/min |
Cross | 1870 mm/min |
Top Tool Rest | 935 mm/min |
No. of Longitudinal And Cross Feeds | 64 Kinds |
Feed Range Per rev. of Spindle | |
Longitudinal | 0.1 to 12 mm |
Cross | 0.05 to 6 mm |
Top Tool Rest | 0.025 to 3 mm |
Metric Threads | 56 KINDS, 1 TO 120 mm |
Whitworth Threads | 56 KINDS, 30 TO 1/4 T.P.I. |
Module Threads | 56 KINDS, 0.5 TO 60 |
Diametral Pitch Threads | 56 KINDS, 0.5 TO 60 |
Travel of Quill | 300mm |
Taper in Quill | MORSE NO. 6 |
Power of Main Motor | AC 30 kW |
Power of Rapid Motor | 1.5 KW |
Power of Oil Pump Motor | 0.55 KW |
Power of Cooling Motor | 0.15 KW |
Power of Tailstock Motor | 1.5 KW |
Hardened & Ground Bedway | |
Electrical Power | 380v/3ph/50hz |
Net Overall Dimension of The Machine | 5100×2200×2400 mm |
Packing Dimension of The Machine | 1) 5500×2250×2550 mm |
2) 2050×2150×560 mm |
Weight | 16000 / 1) 18300 KG; 2) 1500 KG |
4 Jaw Independent Chuck, Diameter of 1600 mm, 1 set
Steady Rest, 220 to 630 mm, set
Dead Center
Center Sleeve
Foundation Bolts
Coolant System
Work Light
Special Tools
Follow Rest, Range 50 to 220 mm
Dro For Both Directions
Steady Rest: 500 to 1100 mm, 1 set
Supporter With Rollers, Range 700 to 1500 mm
Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the heavy duty lathe . We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:
- The heavy duty lathes are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
- When the heavy duty lathes are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
- During this period of one year warranty , if the heavy duty lathes were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
- During this period of warranty, if there is something wrong with the heavy duty lathe, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
- After the warranty, we charge only cost price for maintaining the heavy duty lathes within three years.
- Other after-sale terms can be agreed by buyer and seller in addition.
