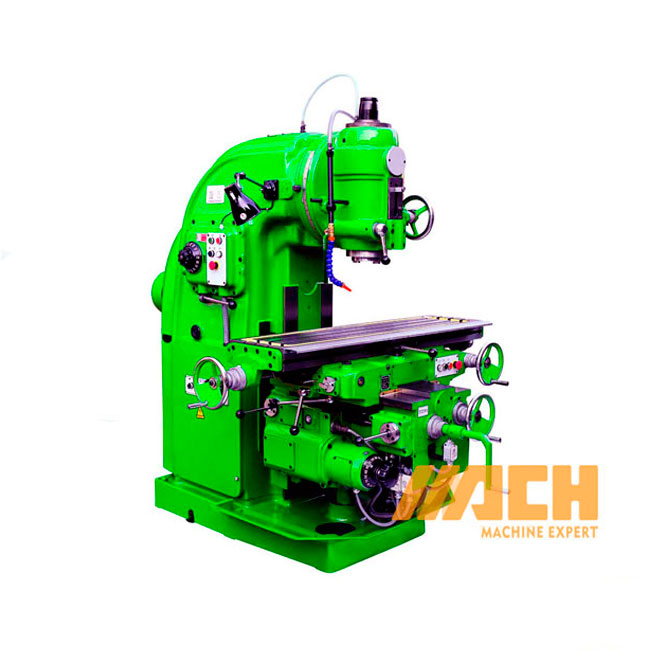

X5032
MACH
| SPECIFICATION | UNIT | X5032 | X5040 |
| TABLE SIZE | MM | 1320×320 | 1600×400 |
| NO./WIDTH/DIS. OF T-SLOT | MM | 3-18-70 | 3-18-90 |
| MAX.LOAD OF TABLE | KG | 500 | 800 |
| SPINDLE TAPER | | ISO50 | ISO50 |
| SPINDLE SPEED RANGE | R/MIN | 30-1500 | 30-1500 |
| SPINDLE SPEED STEP | STEPS | 18 | 18 |
| TABLE TRAVEL(X,Y,Z) | MM | 700/255/350(MANUAL) 680/244/330(AUTO) | 900/315/385(MANUAL) 880/300/365(AUTO) |
| RAPID FEED SPEED(X,Y,Z) | MM/MIN | 2300/1533/770 | 2300/2300/770 |
| MAX.SWIVEL ANGLE OF SPINDLE | | ±45° | ±45° |
| DISTANCE BETWEEN SPINDLE NOSE AND TABLE SURFACE | MM | 60/410 | 130/515 |
| SPINDLE MOTOR POWER | KW | 7.5 | 11 |
| OVERALL DIMENSION(L×W×H) | MM | 2294×1770×1904 | 2556×2159×2298 |
| MACHINE WEIGHT | KG | 2800 | 4250 |
Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the knee-type milling machine. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:
| SPECIFICATION | UNIT | X5032 | X5040 |
| TABLE SIZE | MM | 1320×320 | 1600×400 |
| NO./WIDTH/DIS. OF T-SLOT | MM | 3-18-70 | 3-18-90 |
| MAX.LOAD OF TABLE | KG | 500 | 800 |
| SPINDLE TAPER | | ISO50 | ISO50 |
| SPINDLE SPEED RANGE | R/MIN | 30-1500 | 30-1500 |
| SPINDLE SPEED STEP | STEPS | 18 | 18 |
| TABLE TRAVEL(X,Y,Z) | MM | 700/255/350(MANUAL) 680/244/330(AUTO) | 900/315/385(MANUAL) 880/300/365(AUTO) |
| RAPID FEED SPEED(X,Y,Z) | MM/MIN | 2300/1533/770 | 2300/2300/770 |
| MAX.SWIVEL ANGLE OF SPINDLE | | ±45° | ±45° |
| DISTANCE BETWEEN SPINDLE NOSE AND TABLE SURFACE | MM | 60/410 | 130/515 |
| SPINDLE MOTOR POWER | KW | 7.5 | 11 |
| OVERALL DIMENSION(L×W×H) | MM | 2294×1770×1904 | 2556×2159×2298 |
| MACHINE WEIGHT | KG | 2800 | 4250 |
Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the knee-type milling machine. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:
