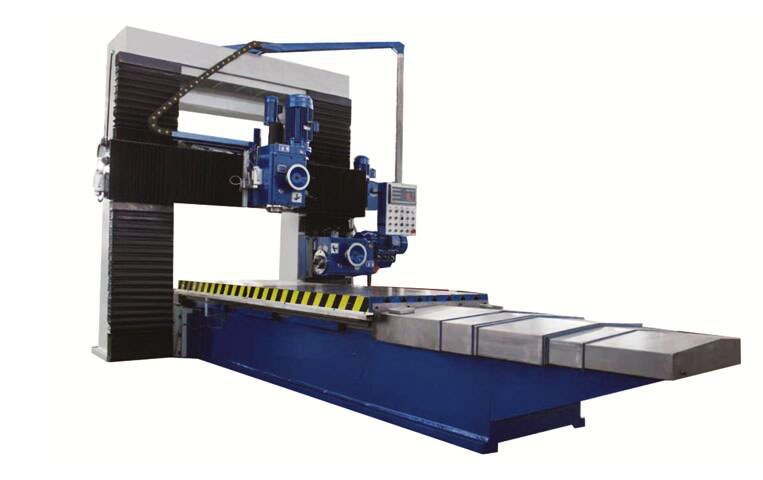

X2012
MACH
Specification | Unit | X2012 | |
Max. travel | Length | mm | 2000/30004000 |
Width | mm | 1400 | |
Height | mm | 1000/1200 | |
Distance between columns | mm | 1600 | |
Table | Table Dimensions | mm | 4000x1250mm |
Max. table load capacity | mm | 6000 Kgs | |
Table feeding speed | Feed | mm/min | 25-450 |
Rapid travel | mm/min | 1300 | |
Spindle taper | | 7:24, ISO50 | |
Spindle speed step | r/min | 6steps 82-505 | |
Spindle swivel angle | | ±35° | |
Feed rate of milling head | mm | Along the cross rail:65/320/890 Side milling head:50/265/730 | |
Power of spindle motor | kw | 7.5kw ( 380V, 50Hz ) | |
Power of table motor | kw | 7.5kw ( 380V, 50Hz ) | |
Overall size | Length | mm | 9000 |
Width | mm | 3550 | |
Height | Mm | 3150 | |
Weight | tons | About 26 tons |
