Color: | |
---|---|
Quantity: | |

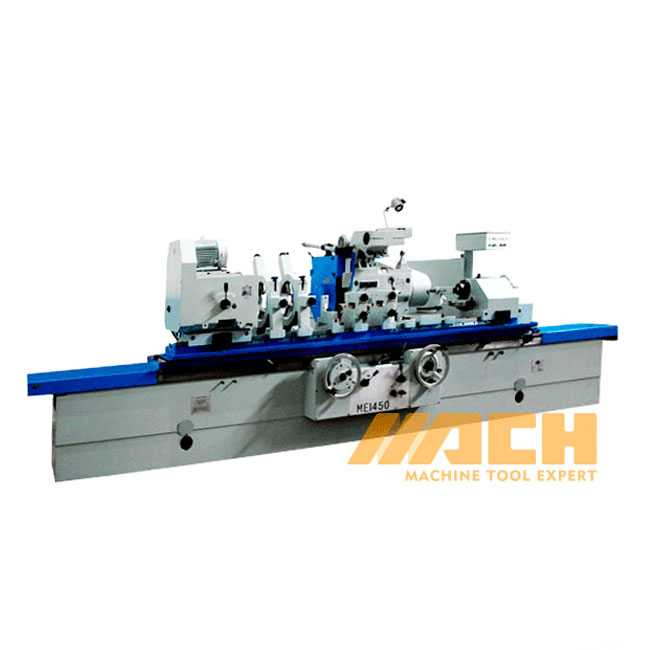

ME1450A
MACH
Item | Model | ||||||||
Grinding dia. | External cylindrical | With steady rest | Min | mm | 30 | ||||
Max | mm | 200 | |||||||
Without steady rest | Min | mm | 30 | ||||||
Max | mm | 500 | |||||||
Internal cylindrical | Without steady rest | Min | mm | 25 | |||||
Max | mm | 200 | |||||||
Without steady rest | Min | mm | 25 | ||||||
Max | mm | 200 | |||||||
Max. distance between center | mm | 1500\2000\3000 | |||||||
Max. workpece weight | kg | 1000 | |||||||
Center high | mm | 270 | |||||||
Max. grinding depth for internal | mm | 320 | |||||||
Grinding wheel | Max | mm | 600×63×305 | ||||||
Min | mm | 450×63×305 | |||||||
Available width of grinding wheel Wheel speed | mm | 50-75 | |||||||
m/s | 35/26.25 | ||||||||
Spindle speed | r/min | 1114 | |||||||
Max.movement of grinding slide | mm | 410 | |||||||
Rapid feed/back amount of wheelhead | mm | 100 | |||||||
Workstock center | Morse | 6 | |||||||
Tailstock center | Morse | 6 | |||||||
Internal grindhead | Grinding wheel | Max | mm | 150 | |||||
Min | mm | 20 | |||||||
Spindle speed | Min | r/min | 3500 | ||||||
Spindle speed | Max | r/min | 11000 | ||||||
Total power of motors | kw | 13.85 | |||||||
Outline dimensions | 1500 | mm | 4967×2375×1693 | ||||||
2000 | mm | 5500×2375×1693 | |||||||
3000 | mm | 7386×2375×1693 | |||||||
Packing case size | 1500 | mm | 5650×2400×2120 | ||||||
2000 | mm | 5650×2200×2190 | |||||||
3000 | mm | 7500×2200×2110 | |||||||
Net weight | kg | 8500/9000/11500 | |||||||
Gross weight | kg | 10000/11000/13500 | |||||||
WORKING ACCURACY | |||||||||
Roundness | mm | 0.0025 | |||||||
Uniformity of diameter in longitudinal section | mm | 0.008 | |||||||
Roughness | um | Ra0.2 |
MAIN ACCESSORIES | |||||||||
Wheel dismount tool | 1 set | Wheel balancing arbor | 1 set | ||||||
coolant tank | 1 set | Measuring plate | 1 set | ||||||
wheel dresser | 1 set | Driving dog | 4 sets | ||||||
Wheel with flange | 1 set | Parallel wedge | 12,12,1 6sets | ||||||
MAIN ACCESSORIES SUPPLIED ON SPECIAL ORDER | |||||||||
Radius wheel dresser | 1 set | Positioner | 1 set | ||||||
Eng dresser | 1 set | Wheel balancing stand | 1 set |
Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the cylindrical grinding machine. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:
