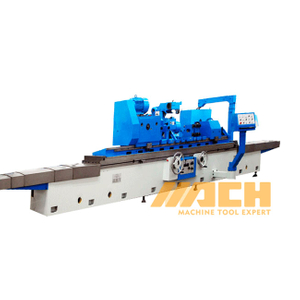

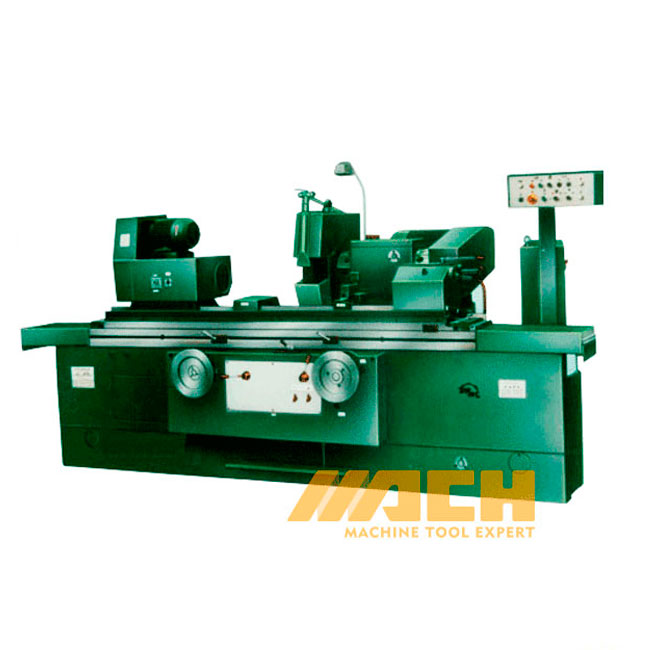

ME1332A High Quality Hot Sale Universal Cylindrical Grinder Machine
1. The Universal Cylindrical Grinder Machine machine is designed to grind the external surface of cylindrical and conic parts with accuracy of IT5and IT6.
2. It is suitable to use in tool workshop. Machinery repairing workshop and production workshop for mind-small batch process production.
3. Cylindrical Grinder Machine has the following features:worktable reciprocating movement, wheelhead rapid approach and withdrawal, periodic feed, retractable sleeve of tailstock’s center, lubricating of worktable are all hydraulic controlled, handlebar and Switch set in the front of machine so the Universal Grinding Machine e is ease operated.
| Specification(mm) | Outline dimension(mm) | Weight(kg) |
| L | W | H |
| ME1332AX500 | 2249 | 1760 | 1545 | 4000 |
| ME1332AX750 | 2718 | 1760 | 1545 | 4300 |
| ME1332AX1000 | 3238 | 1760 | 1545 | 4600 |
| ME1332AX1500 | 4269 | 1760 | 1545 | 5500 |
| |
| Grinding dia. | With steady rest | Min. | mm | 15 |
| Max. | mm | 150 |
| Without steady rest | Min. | mm | 15 |
| Max. | mm | 320 |
| Max. workpiece weight | kg | 150 |
| Max. grinding length | mm | 500; 750; 1000; 1500 |
| Center high | mm | 180 |
| Distance between centers | mm | 2000; 2500; 3000 |
| Headstock center | Morse | M4 |
| Tailstock center | Morse | M4 |
| Wheel head | Wheel speed | m/s | 35 |
| Spindle speed | r/min | 1100 |
| Max. movement of wheel stock | mm | 285 |
| (Includes the rapid movement) |
| Grinding wheel | Max. | mm | 600×63×305 |
| Min. | mm | 450×63×305 |
| Rapid approach and withdrawal | mm | 50 |
| Max. longitudinal travel of worktable | mm | 580; 830; 1100; 1600 |
| Max.swing angle of wpper-worktable | Clockwise | ° | 3 |
| Counter-clockwise | ° | 7,6,5,4 |
| Table hydraulic travel speed | Max. | m/min | 4 |
| Min. | m/min | 0.1 |
| Total power of motors | KW | 9.475 |
| GENERAL FEATURE |
| Movenment of sleeve of tailstock | mm | 30 |
| Min. manual feel | mm | 0.0025 |
| Auto-periodic feed | Yes |
| Automatic infeed | No |
| Wheel dressing and compensation | Manual |
| WORKING ACCURACY |
| Roundness | mm | 0.0025 |
| Uniformity diameter of in longitudinal section | mm | 0.008 |
| Roughness | μm | Ra0.2 |
Oil tank 1set
Wheel balancing arbor 1set
coolant tank 1set
Measuring plate 1set
Wheel dresser 1set
Driving dog 1set
Wheel with flange 1set
Parallel wedge 12.12.16sets
Wheel dismount tool 1set
Radius wheel dresser 1set
Positioner 1set
Half center 1set
Wheel balancing stand 1set
