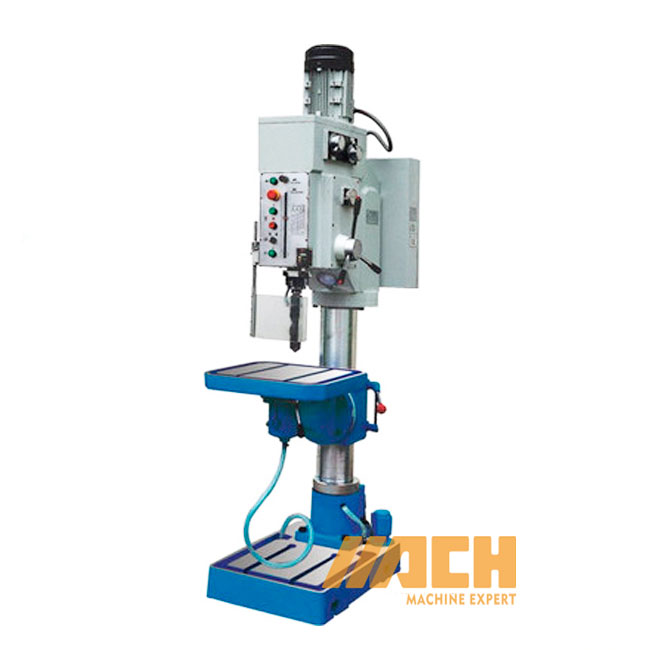

Z5040 Z5050 Gear Head Vertical Bench Drill Machine

Bench Drill Machine
MOQ: 1
Color:
Quantity:
  • Z5040 Z5050

  • MACH

Z5040 Z5050 Gear Head Vertical Bench Drill Machine


Specifications

Model Z5050 Z5040
Max. Drilling capacity (mm) 50 40
Max. Tapping capacity (mm) M30 M27
Diameter of column (mm) 180 160
Spindle travel (mm) 240 180
Distance spindle axis to column generating line (mm) 360 360
Max. Distance spindle nose to table (mm) 460 460
Max. Distance spindle nose to table (mm) 1200 1200
Spindle tape MT4orMT5 MT4
Spindle speeds range (r/min) 42-2050 42-2050
Spindle speeds series 12 12
Spindle feeds (r/min) 0.07 0.15 0.26 0.40 0.07 0.15 0.26 0.40
Dimension of worktable surface (mm) 550×470 550×470
Table travel (mm) 550 550
Dimension of base table (mm) 450×440 450×440
Overall height (mm) 2380 2330
Main motor (kW) 2.2/2.8 2.2/2.8
Coolant motor (W) 40 40
G.W/N.W (kg) 1045/985 815/755
Packing dimension (cm) 110×62×215 110×62×215





Guarantee

Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the bench drill machine. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:

  • The bench drill machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
  • When the bench drill machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
  • During this period of one year warranty , if the bench drill machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
  • During this period of warranty, if there is something wrong with the bench drill machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
  • After the warranty, we charge only cost price for maintaining the bench drill machines within three years.
  • Other after-sale terms can be agreed by buyer and seller in addition.
