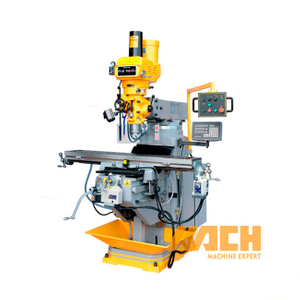

X6332C
MACH
| Specification | unit | X6332C |
| TABLE: | ||
| Table size | mm | 1250×320 |
| T slot | no | 5 |
| Size(Width) | mm | 14 |
| T slot Centre distance | mm | 70 |
| Max. load of Table | kg | 300 |
| MACHINING RANGE : | ||
| Table Longitudinal travel (manual/auto) | mm | 800 |
| Table Cross travel (manual/auto) | mm | 300 |
| Table Vertical travel (manual/auto) | mm | 350 |
| MAIN SPINDLE: | ||
| Spindle taper | ISO40 | |
| Spindle speed/step–Vertical | rpm | 70-3620/10steps |
| Spindle speed/step–Horizontal | rpm | 60-1350/12steps |
| Max. drilling dia. | mm | 30 |
| Max. end milling width | mm | 125 |
| Max.vertical milling Dia. | mm | 25 |
| Max. tapping dia. | mm | 10(steel) |
| Quill travel | mm | 150 |
| Swivel angle of headstock | degree | ±45o |
| Vertical spindle axis to column surface | mm | 150-550 |
| Vertical spindle nose to table surface | mm | 150-550 |
| Horizontal spindle axis to table surface | mm | 0-350 |
| Horizontal spindle axis to arm bottom | mm | 175 |
| Arm travel | mm | 400 |
| FEEDS: | ||
| Longitudinal/cross feed and step | mm/min | 22-555/8steps |
| Vertical feed/step | mm/min | 575/1step |
| Longitudinal/cross rapid speed | mm/min | 1000 |
| Rapid Traverse vertical | mm/min | 575 |
| Automatic spindle feed | 0.45/0.86/125 | |
| POWER: | ||
| Main motor power | kw | 3.7(V),2.2(H) |
| Feed motor power | kw | 0.75(X/Y/Z) |
| Coolant motor power | kw | 0.04 |
| OTHERS : | ||
| Package dimension | cm | 160X162X2251pc/case |
| 226X165X2252pcs/case | ||
| Overalldimension | cm | 172x152x222 |
| N/W,G/W | kg | 1770/1900 |
Drilling chuck
Spindle arbor
Wedge shifter
Wrench
Inner hexagonal spanner
Vice
Milling chuck
Milling arbor
Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the radial milling machine. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:
