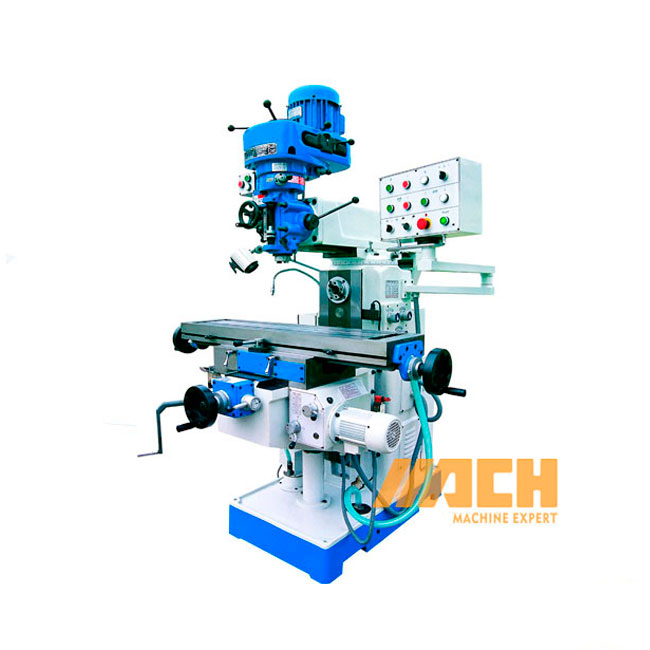

X6328B
MACH
| Specification | unit | X6328B |
| Table size | mm | 1120X260 |
| T slot no./width/distance | no | 3/14/63 |
| Max. load of Table | kg | 200 |
| Table Longitudinal travel(manual/auto) | mm | 600 |
| Table Cross travel(manual/auto) | mm | 270 |
| Table Vertical travel(manual/auto) | mm | 300 |
| Spindle taper | ISO40 | |
| Spindle speed /step — Vertical | rpm | 65-4500/8steps |
| Horizontal | rpm | 40-1300/12steps |
| Max.drilling dia. | mm | 30 |
| Max.end milling width | mm | 100 |
| Max. vertical milling Dia. | mm | 25 |
| Max.tapping dia. | mm | M16 |
| Quill travel | mm | 127 |
| Swivel angle of headstock | degree | ±45o |
| Vertical spindle axis to column surface | mm | 100-650 |
| Vertical spindle nose to table surface | mm | 100-400 |
| Horizontal spindle axis to table surface | mm | 0-330 |
| Horizontal spindle axis to ram bottom | mm | 175 |
| Ram travel | mm | 500 |
| Longitudinal/cross feed | mm / min | 24-402/9steps |
| Vertical/step | mm/min | 422/1step |
| Longitudinal/cross rapid speed | mm / min | 402 |
| Rapid Traverse vertical | mm/min | 422 |
| Automatic spindle feed | 0.45/0.86/1.25 | |
| Main motor | kW | 2.2(V/H) |
| (X/Y/Z) Feed motor | kW | 0.37(X/Y),0.75(Z) |
| Coolant motor | kW | 0.04 |
| Package dimension | cm | 160X152X222 1pc/case |
| 220X152X222 2pcs/case | ||
| Overall dimension | cm | 171X148X210 |
| N/W,G/W | kg | 1350/1500 |
Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the turret milling machine. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:
