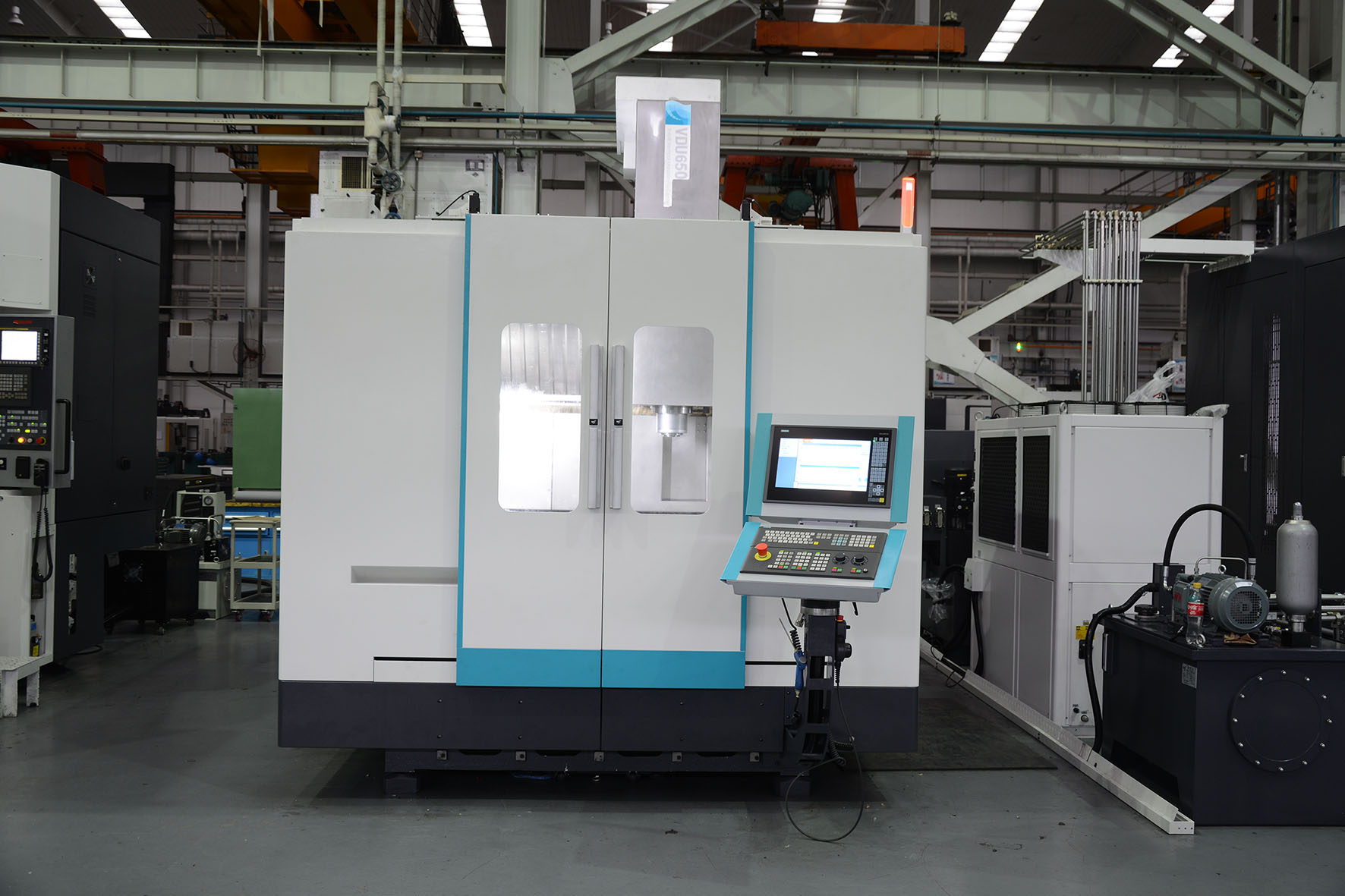

VDU650 Dalian DMTG 5 axis CNC Vertical Machining Center

VDU650 can realize 5 axis linkage processing.
X/Y/Z axis rapid traverse can reach tp 60 meter per minute.
it adopt direct drive spindle 12000 rpm.
VDU650 has the characteristics of fast response, efficient processing, smooth chip removal, and high cost performance.
It is suitable for complex spatial surface processing and spatial angle positioning processing, especially for the processing of parts as impellers and blades

Availability:

Quantity:



Inquire Add to Basket

Model:
VDU650
Brand:
DMTG
Code:
8457.1010.00

Product Description

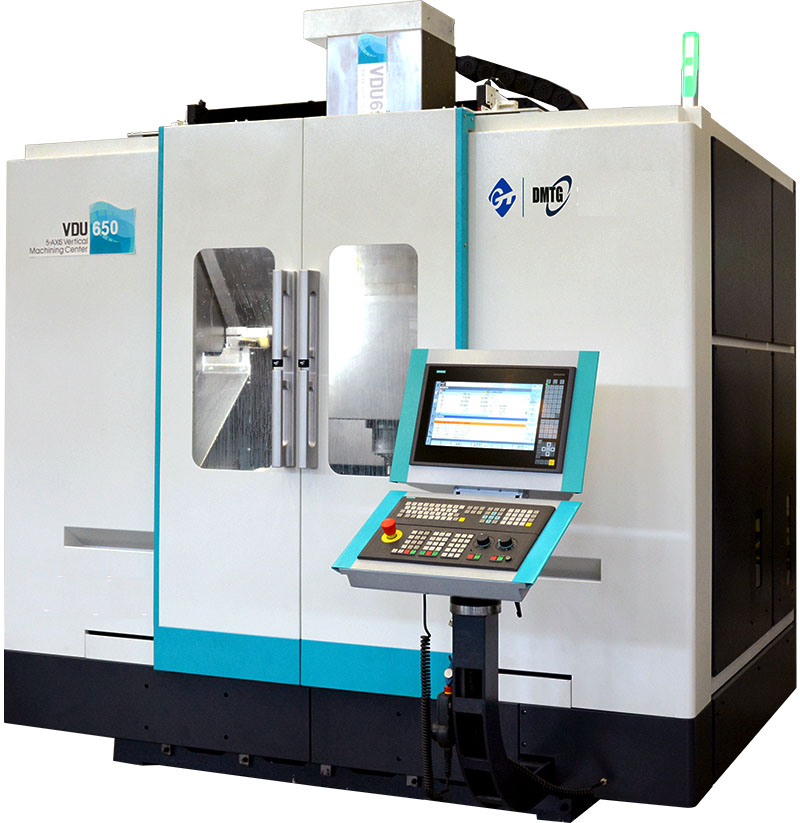

VDU650 Dalian DMTG 5 axis CNC Vertical Machining Center

VDU650

Main Specification:

*Items*	*VDU650*
Table Size	Φ650 mm
Max. Workpiece Weight	600 kg
X/Y/Z Travels	650/650/500mm
X/Y/Z Rapid Travels	45m/min
*Spindle speed*	*12000rpm*

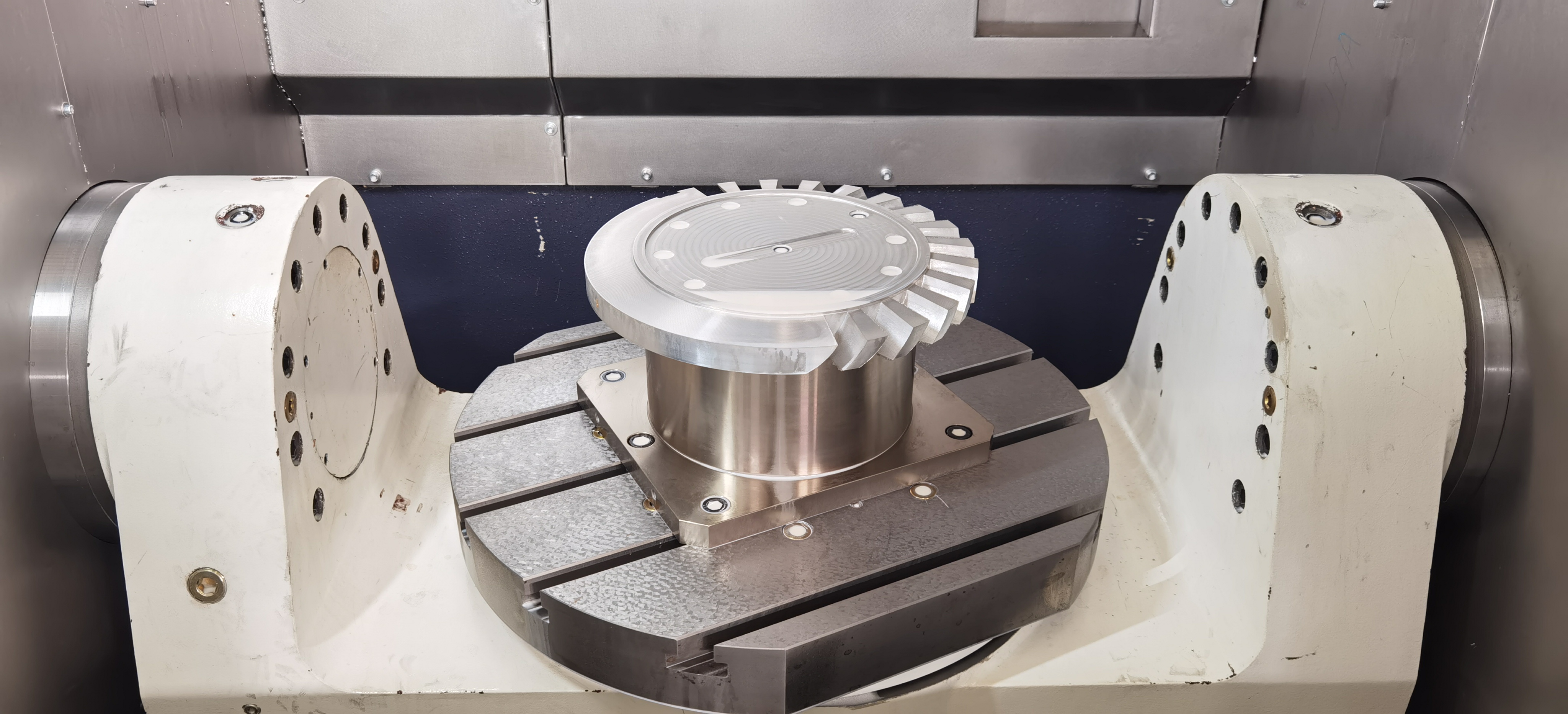

Table Index A/B axis	+/- 130°
C Axis Index	360°
A/B Axis Max. Rotating Speed	25 rpm
C Axis Max. Rotating Speed	30 rpm
Spindle Power	7.5KW
Spindle Taper	HSK-A63
ATC	20 tools
Tool Change Time(t-t)	6s
Mar. Tool Weight	8kgs
Max. Tool Dia.	75/125mm
Max. Tool Length	300mm
Control	*SIEMENS ONE*
Spindle motor	8/15Kw,45/95 Nm, 12000 r/min
Machine Floor Area	2600x4900 mm
Net Weight	15000 kg

Standard Configurations

*Item*	*Base Machine Configuration*
1	*Siemens One* *CNC Control*
2	12000 rpm Direct Drive Spindle
3	Spindle motor 7.5kw
4	HSK-A63, 20 tools ATC
5	USB Interface
6	Lift-up type chip conveyor
7	Enclosure Guarding
8	X/Y/Z Axis way cover
9	Work light
10	Machine signal lamp
11	Coolant system
12	Electric cabinet air conditioner
13	MPG
14	Rigid tapping
15	Workpiece cooling system
16	Spindle Taper Air Blow System
17	Spindle Cooling System
18	Spindle air seal
19	Auto Lubrication System
20	Air Gun
21	Door safety Inter-lock
22	Tools
