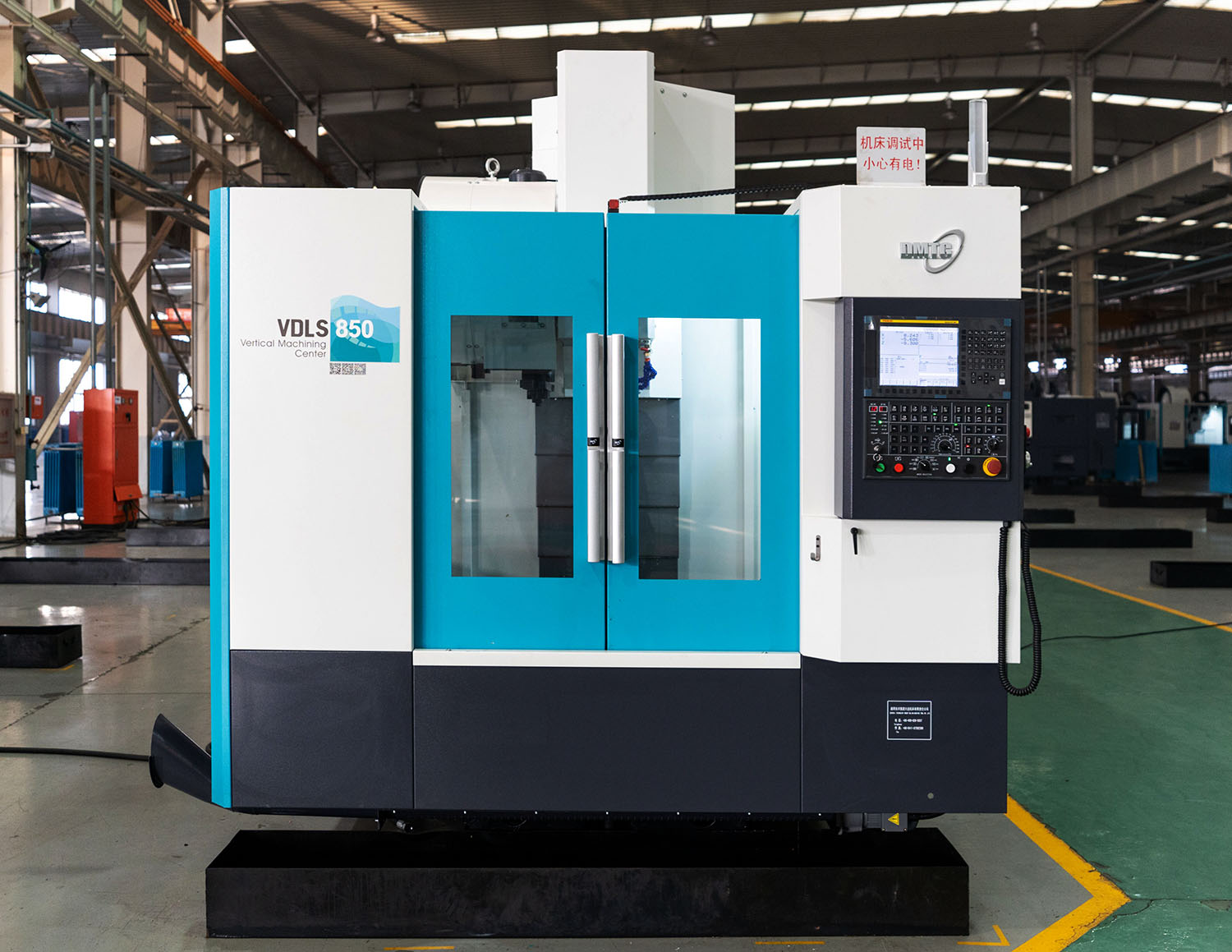

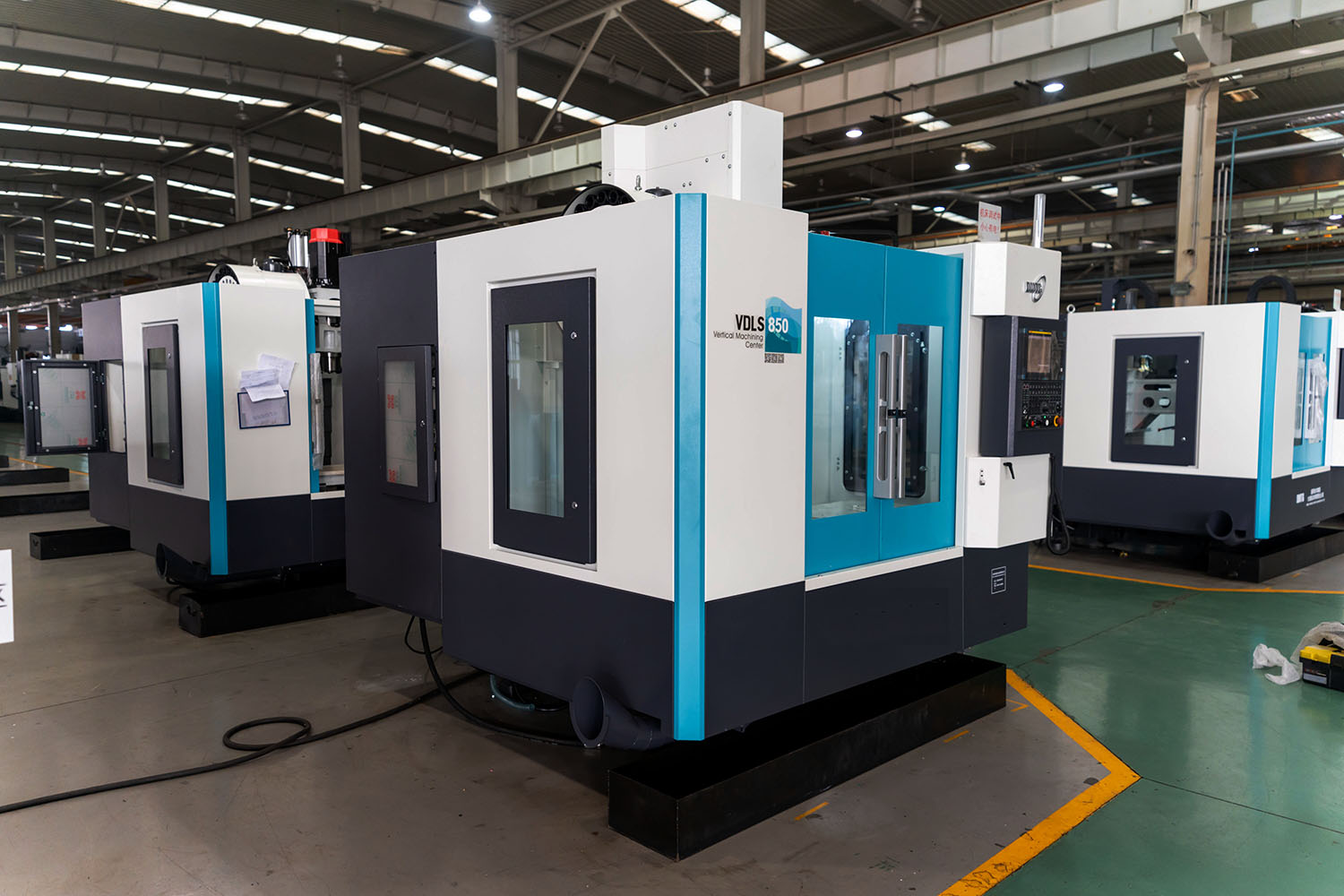

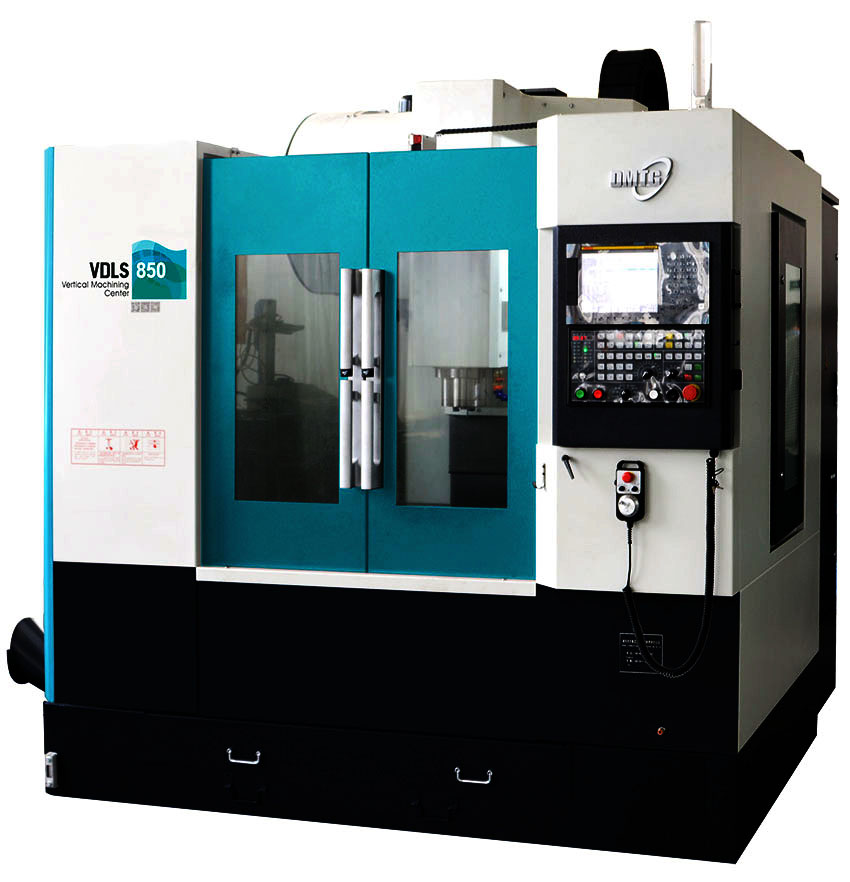

VDLS850 High Speed 12000 rpm Dalian DMTG 4 axis VMC Vertical Machining Center
1. Specification:
| Work table | | |
| Table size | mm | 1000×500 |
| T slots（No.×W×P） | mm | 5×18×100 |
| Max. table load | kg | 500 |
| Travels and feeds | | |
| X/Y/Z-axis travel | mm | 860/510/560 |
| Spindle nose to table surface | mm | 145 – 705 |
| Spindle center to column surface | mm | 607 |
| X/Y/Z-axis federate | mm/min | 1-10000 |
| X/Y/Z-axis rapid traverse | m/min | 36/36/30 |
| Spindle | | |
| Spindle Speed | rpm | 12000 |
| Taper | | BT40(7:24) |
| Motor power | kw | 7.5/11 |
| Tool changer | | |
| Tool number | | 24 |
| Tool type/taper shank | | BT40 |
| Max. tool weight | kg | 8 |
| Max. tool dia. (without adjacent/ with adjacent tool) | mm | Φ78/155 |
| Type tool changer | | Arm Type |
| Tool change time (T-T) | s | 2.5 |
| Accuracy | | |
| Positioning | mm | X/Y/Z：0.008/0.008/0.008 |
| Repeatability | mm | X/Y/Z：0.005/0.005/0.005 |
| Others | | |
| Required air | mpa | 0.6-0.8 |
| Overall dimensions | mm | 2496 x 2530 x 2679 |
| Machine weight | kg | 5600 |
Standard Configuration with machine:
| Item | Base Machine Configuration |
| 1 | Fanuc 0i MF(5) CNC control, 10.4” color screen |
| 2 | 12000rpm direct driven spindle |
| 3 | Spindle motor 7.5/11kw |
| 4 | Taper size BT40 |
| 5 | Spindle oil chiller |

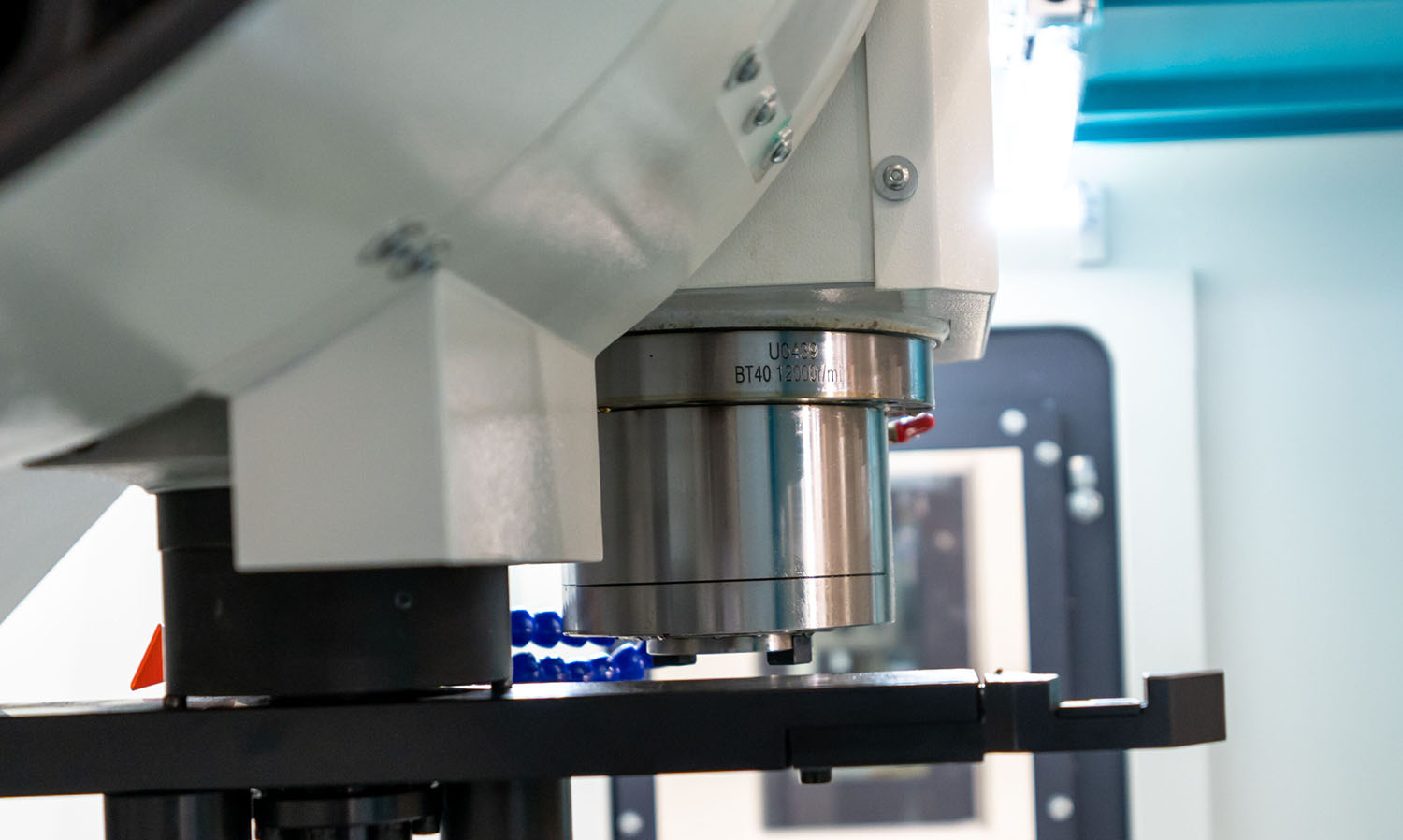

| 6 | Arm type ATC, 24 tools |
| 7 | Three axes linear roller guides |
| 8 | Screw type chip conveyor |
| 9 | Coolant system |
| 10 | Enclosure Guarding |
| 11 | MPG |
| 12 | Spindle air tight anti dust system |
| 13 | Spindle cone air blow device |
| 14 | Air Gun |
| 15 | Rigid tapping |
| 16 | RS-232 interface, USB port and DNC function |
| 17 | Simple oil/coolant separator |
| 18 | Electrical cabinet with heat exchanger |
| 19 | Door safety inter-lock |
| 20 | Tools |
