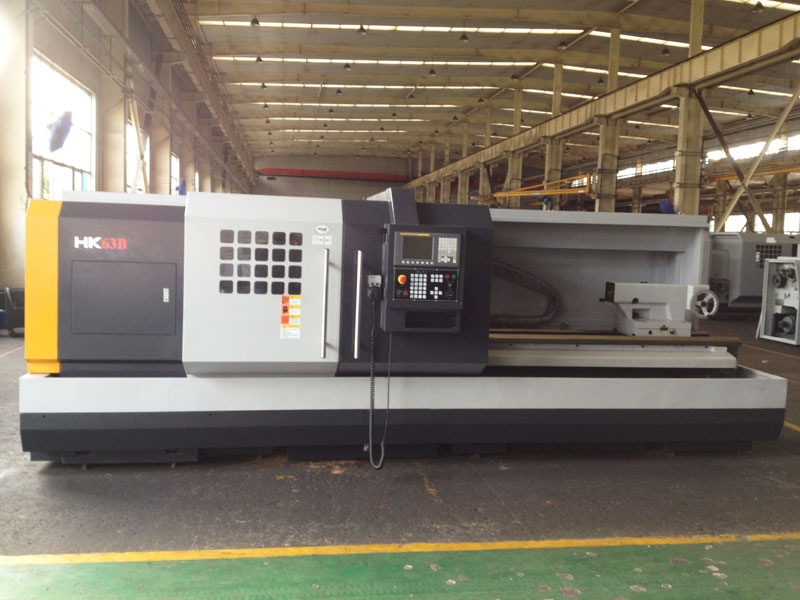

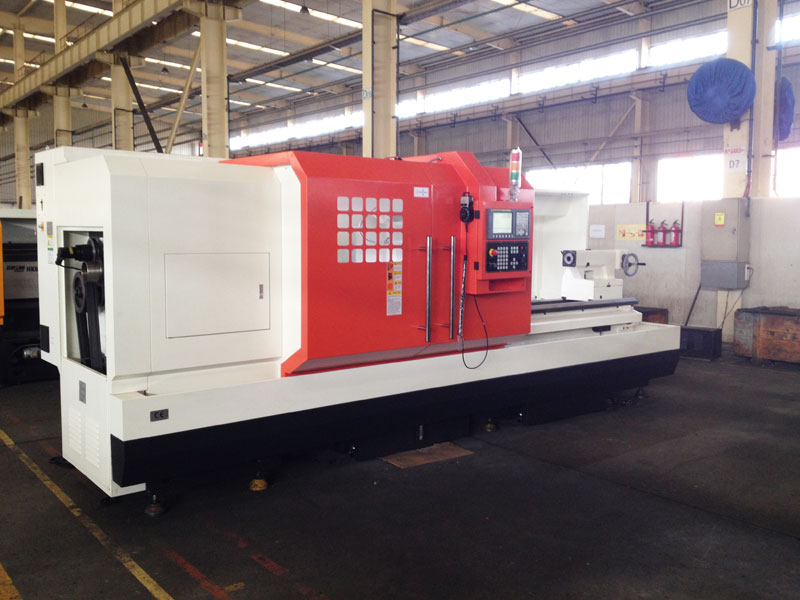

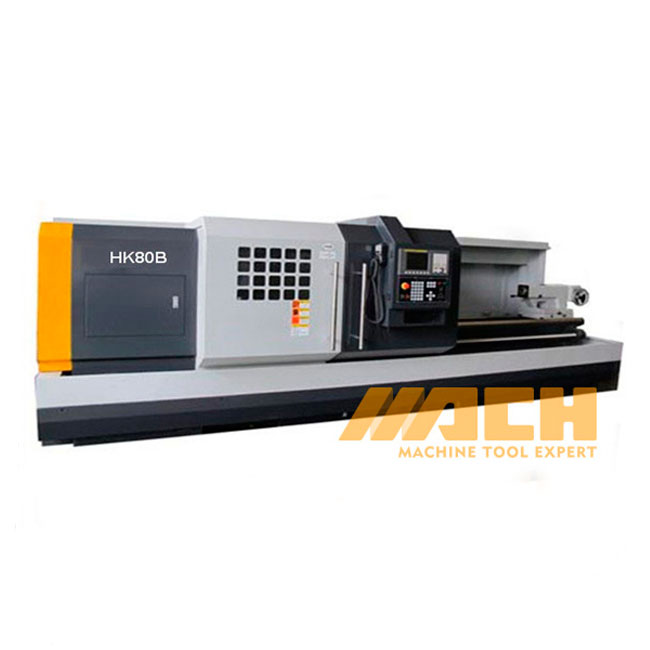

HK80B Bochi Automatic Horizontal CNC Turning Lathe HK-B Series lathes CNC have high grade cast iron bed, and hardened and precision ground ways. It is rigid with wide span of bed ways and long lasting accuracy. Controlled by FANUC 0i TF(5), GSK980T, DASENG, or other controls. Capable of internal and external turning, taper turning, circular turning, facing, metric and inch threading and etc. Complete with 4-station power turret(standard) to satisfy different machining needs; with sliding doors to ensure safety production; with a centralized operator’s panel for ease of programming and operation. Suitable for small and medium sized batch production of multiple work, especially of complex and high precision work.
Equipment with Fanuc 0i TF(5) control system(x. z servo motor).
| ITEMS || UNIT || PARAMETERS |
| HK63B || HK80B |
| Capacity || Max. swing over bed || mm || φ630 || φ800 |
| Max. swing over slide || mm || φ360 || φ500 |
| Max. machining dia. || mm || φ630/φ500 || φ740 |
| (6-station turret) || (Vertical 4-station) |
| Distance between centers || mm || 1000/1500/3000 |
| Max. turning length || mm || 760/1260/2760 (Vertical 4-station) |
| Bed way width || mm || 560 |
| Spindle || Spindle thru-hole || mm || φ105 |
| Spindle nose || || A1-11 |
| Spindle speed || r/min || H 112~1120 M 37~373 L 20~210 |
| Spindle motor power || kW || 11 |
| (Freq. changing motor) |
| Feed || X travel || mm || 370 || 390 |
| Z travel || mm || 760/1350/2850 |
| X/Z-axis motor power || kW || 1.8/2.5 |
| Tailstock || Quill diameter || mm || φ100 |
| Quill travel || mm || 250 |
| Quill taper || || Morse No.5 |
| Turret || X/Z-axis rapid traverse rate || m/min || 6/7 |
| Number of stations || || 4/6 |
| Tool section || mm || 32×32 |
| Others || Power source || kVA || 30 |
| Dimensions(L×W×H) || mm || 3500/4000/5500×1580×1850 || 3500/4000/5500×1680×2000 |
| Weight || kg || 4800/5100/6100 || 5000/5300/6400 |
The main spindle is driven by inverter motor.
Spindle speed change by hand lever (on the head stock) and inverter.

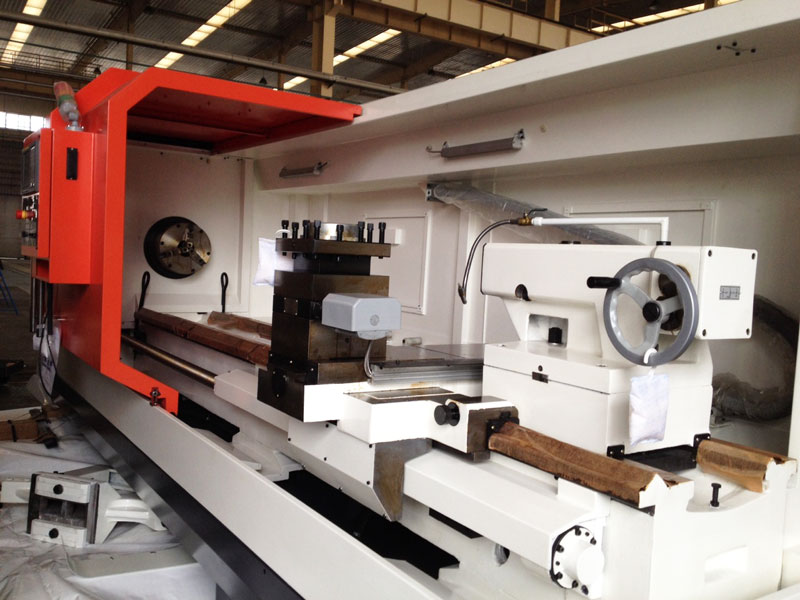

4-station electric tool post
Manual 3-jaw chuck (315mm )
Coolant supply system
All standard accessories
1). Hydraulic 3-jaw chuck<315mm-Without through hole> and hydraulic power unit
or Hydraulic 3-jaw chuck<305mm-With through hole> and hydraulic power unit
2). Hydraulic tail stock
3). 6-station electric tool post
Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the cnc turning lathe. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:

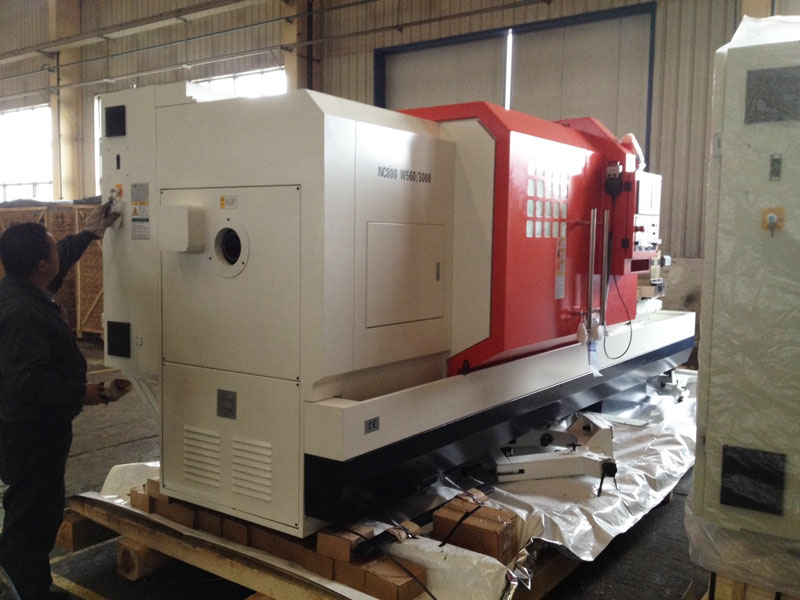

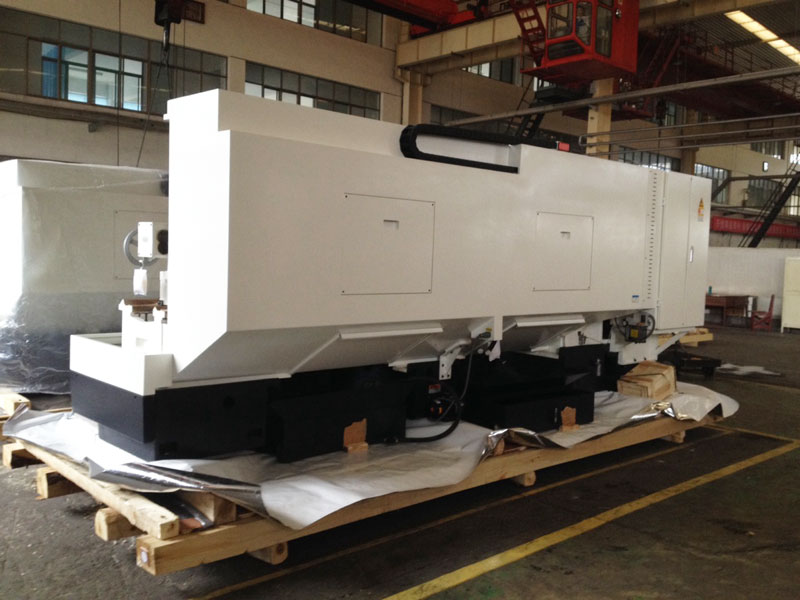

- The cnc turning lathes are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
- When the cnc turning lathes are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
- During this period of one year warranty , if the cnc turning lathes were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
- During this period of warranty, if there is something wrong with the cnc turning lathes, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
- After the warranty, we charge only cost price for maintaining the cnc turning lathes within three years.
- Other after-sale terms can be agreed by buyer and seller in addition.
