| Quantity: | |
|---|---|

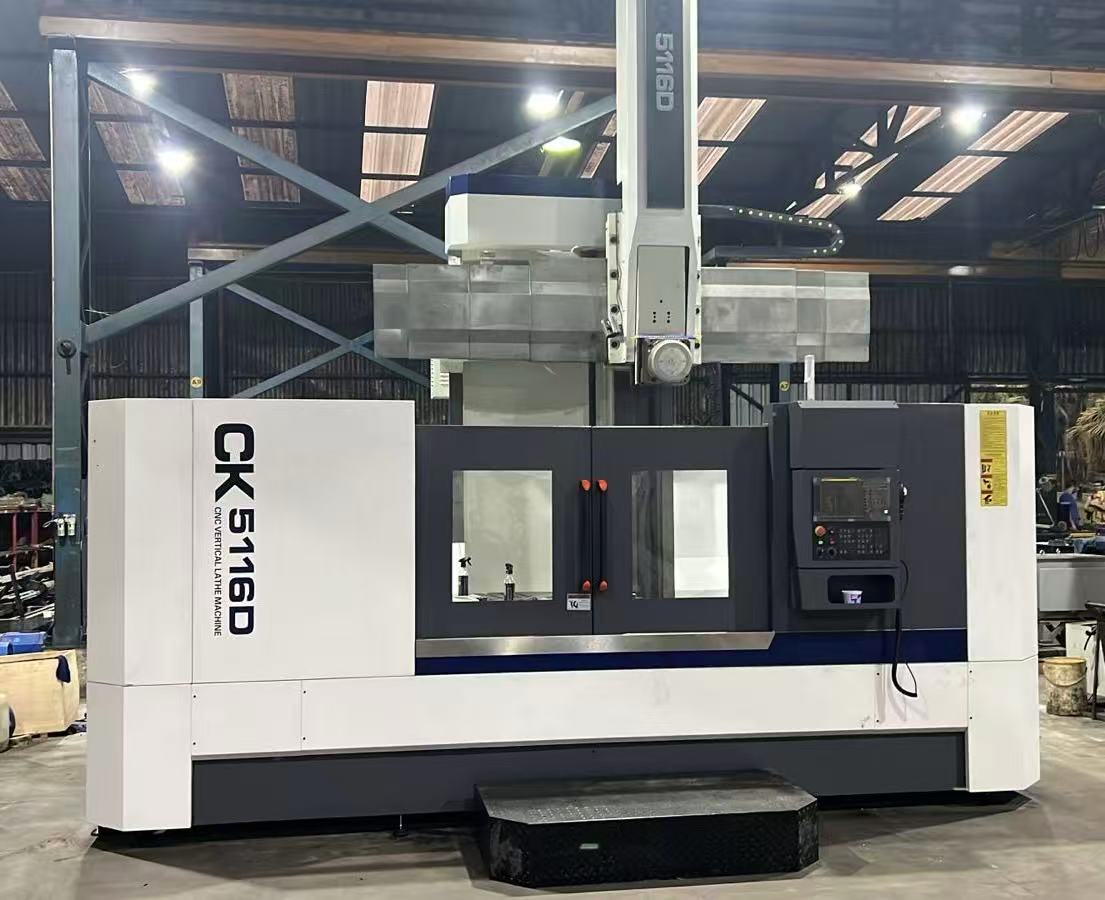

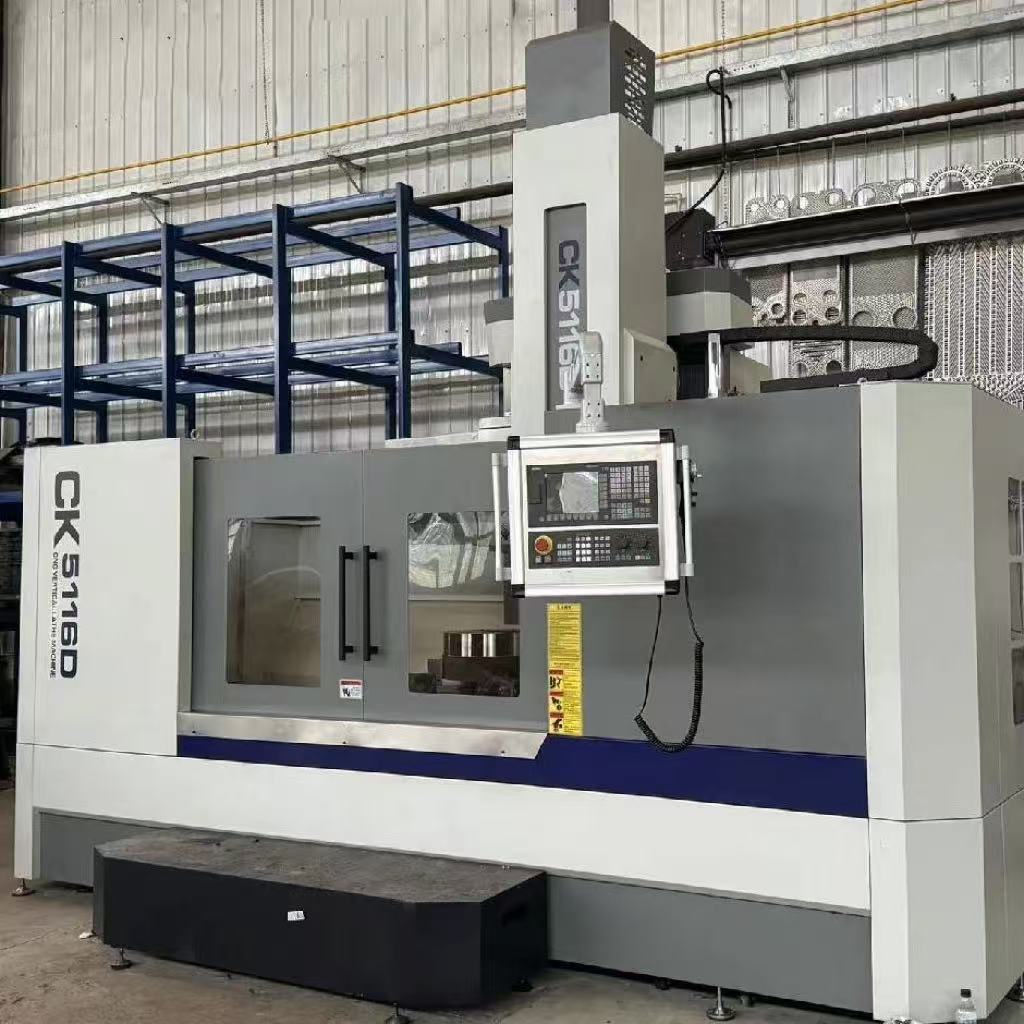

CK5116D
MACH
8458.9110.90
Product Paramenters
| Max. cutting diameter | mm | 1600 |
| Max. cutting height | mm | 1500 |
| worktalbe diameter | mm | 1400 |
| Max. loading weight | Tons | 5 |
| Worktable speed range | r/min | 5-160 |
| Worktable max.torque | n/m | 32000 |
| Vertical tool head cutting force | n | 25000 |
| Vertical tool head vertical travel | mm | 800 |
| Vertical tool head horizontal travel | mm | 1050 |
| Turretrapid travel speed | mm/min | 2000 |
| Tool bar size | mm | 32*32/40*40 |
| Cross beam travel | mm | 650/800/1050 |
| Crossbeam lift speed | mm/min | 440 |
| Machining precision | 1T7 | |
| Positioning precision | mm | 0.03 |
| Repositioning precision | mm | 0.015 |
| Main motor | kw | 30 |
| Machine weight | tons | 15 |
| Orverall dimension(L*W*H) | mm | 2830*2670*3010 |
Company Information and Exporting History:

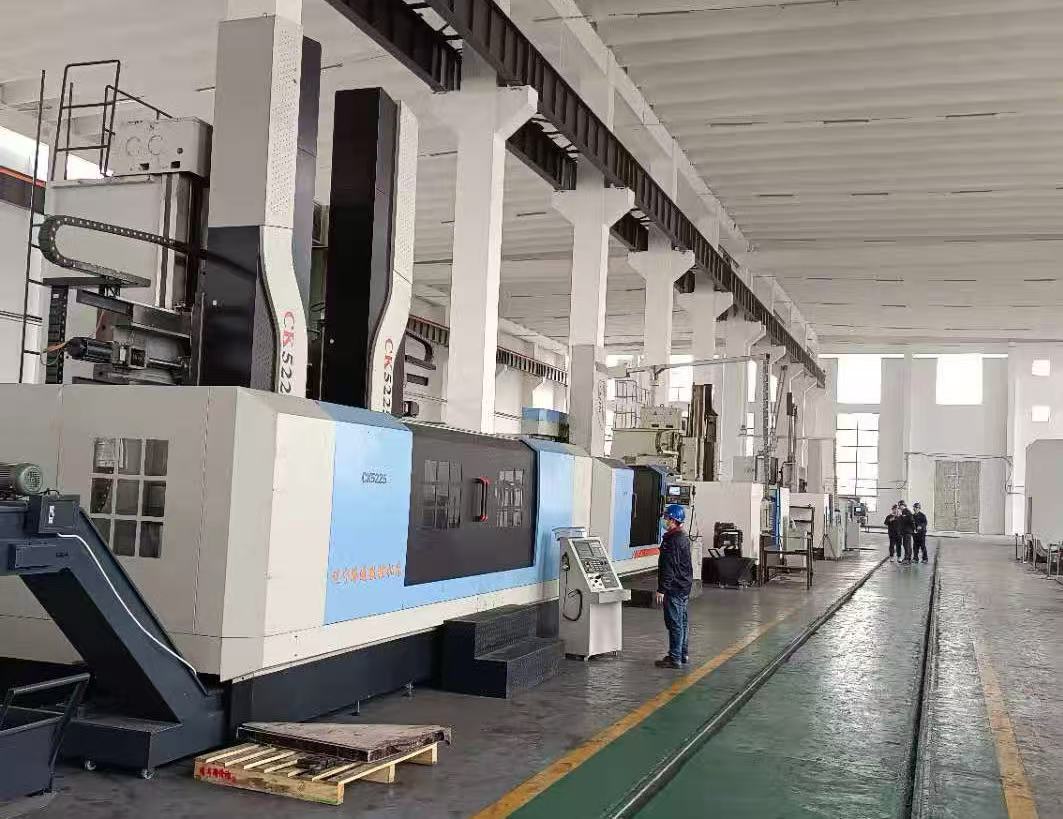

We are one of biggest manufactuer which produce ( Single Column CNC Vertical Lathe Machine, Double Columns CNC vertical Lathe, CNC vertical lathe with living tools,etc )
We have CE certificates for our CNC vertical lathe. Our machines are exported to Italy, England, Brazil, Chile, Australia, Saudi Arabia, UAE and other countries.

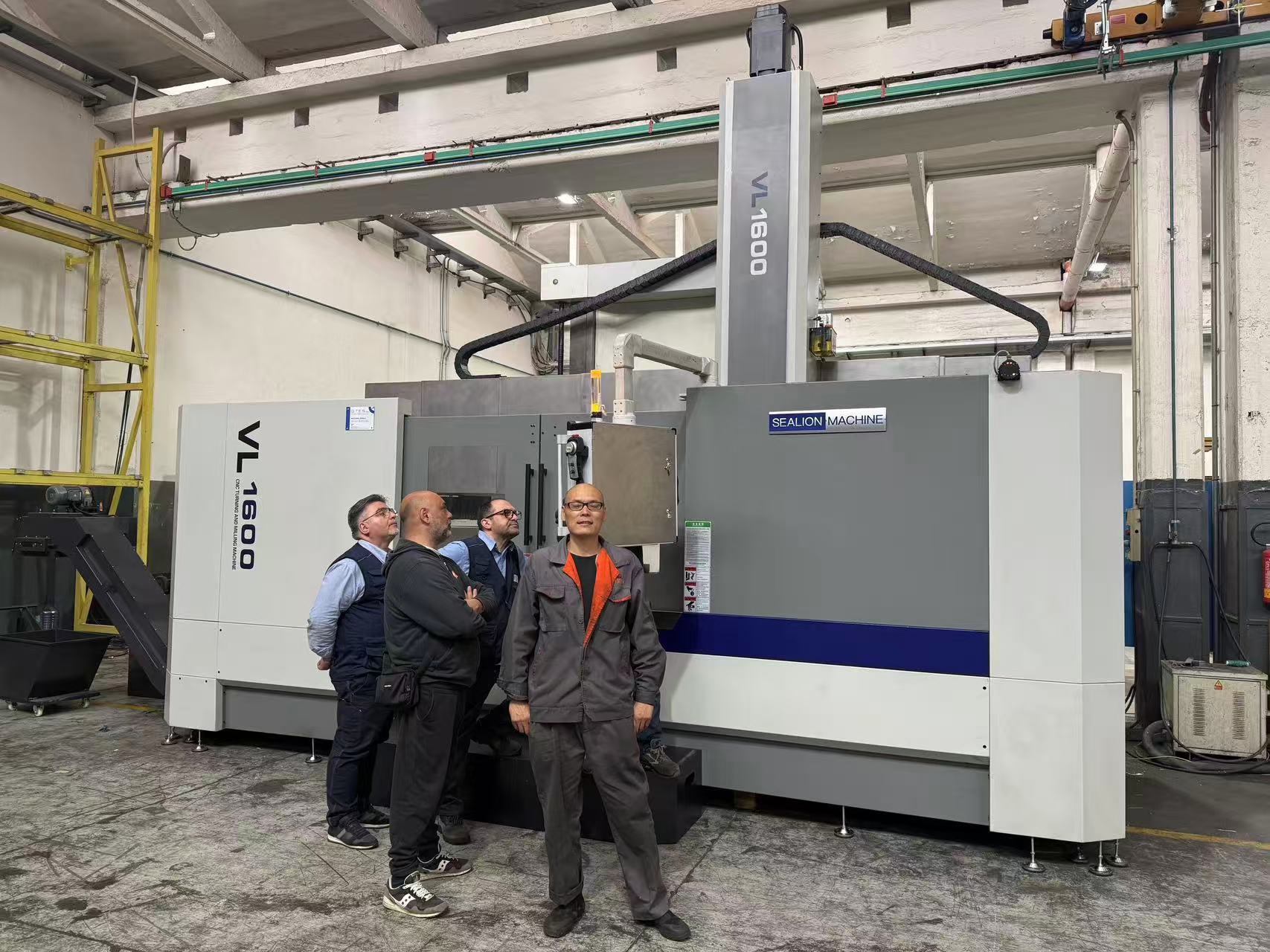

Our CNC vertical lathes are sold to Italy company. Our technician just finished installation and commissioning works in Italy company in May,2025.
