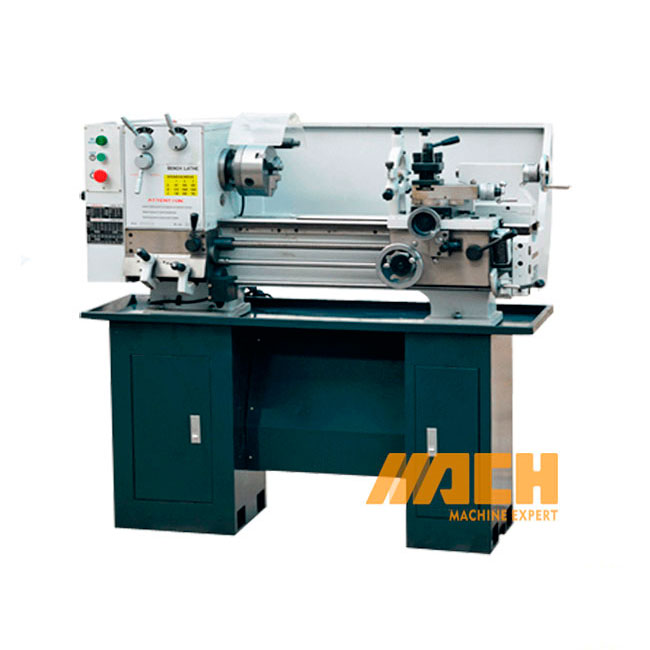

CZ1224G
MACH
ITEM | CZ1224G | CZ1237G | CZ1324G | CZ1337G | |||||
Norton lever | Closed box | Norton lever | Closed box | Norton lever | Closed box | Norton lever | Closed box | ||
Swing over bed | mm | φ305 | φ305 | φ330 | φ350 | ||||
Swing over carriage | mm | φ173 | φ173 | φ195 | φ215 | ||||
Swing over gap | mm | φ440 | φ440 | φ465 | φ485 | ||||
Width of bed-way | mm | 182 | 182 | 182 | 182 | ||||
Distance between centers | mm | 530 | 940 | 530 | 940 | ||||
Spindle taper | M.T.5 | M.T.5 | M.T.5 | M.T.5 | |||||
Spindle bore | mm | φ38 | φ38 | φ38 | φ38 | ||||
Step of speed | 9 | 9 | 9 | 9 | |||||
Range of speed | rpm | 64~1500 | 64~1500 | 64~1500 | 64~1500 | ||||
Metric thread | 15kinds (0.25~7.5mm) | 11kinds (0. 5~3.5mm) | 15kinds (0.25~7.5mm) | 11kinds (0. 5~3.5mm) | 15kinds (0.25~7.5mm) | 11kinds (0. 5~3.5mm) | 15kinds (0.25~7.5mm) | 11kinds (0. 5~3.5mm) | |
Inch thread | 40kinds (4~112T.P.I) | 14kinds (7-1/2~48T.P.I) | 40kinds (4~112T.P.I) | 14kinds (7-1/2~48T.P.I) | 40kinds (4~112T.P.I) | 14kinds (7-1/2~48T.P.I) | 40kinds (4~112T.P.I) | 14kinds (7-1/2~48T.P.I) | |
Range of feed amount | mm/r | 0.12~0.42 (0.0047”~0.0165) | 0.051~0.303 (0.002”~0.012”) | 0.12~0.42 (0.0047”~0.0165) | 0.051~0.303 (0.002”~0.012”) | 0.12~0.42(0.0047”~0.0165) | 0.051~0.303 (0.002”~0.012”) | 0.12~0.42 (0.0047”~0.0165”) | 0.051~0.303 (0.002”~0.012”) |
Diameter of lead screw | mm | φ22(7/8”) | φ22(7/8”) | φ22(7/8”) | φ22(7/8”) | ||||
Pitch of lead screw | 3mm or 8T.P.I | 3mm or 8T.P.I | 3mm or 8T.P.I | 3mm or 8T.P.I | |||||
Saddle travel | mm | 510 | 850 | 510 | 850 | ||||
Cross travel | mm | 150 | 150 | 150 | 150 | ||||
Compound travel | mm | 90 | 90 | 90 | 90 | ||||
Barrel travel | mm | 100 | 100 | 100 | 100 | ||||
Barrel diameter | mm | φ32 | φ32 | φ32 | φ32 | ||||
Taper of center | mm | M.T.3 | M.T.3 | M.T.3 | M.T.3 | ||||
Motor power | Kw | 1.1(1.5HP) | 1.1(1.5HP) | 1.1(1.5HP) | 1.1(1.5HP) | ||||
Motor for coolant system’s power | Kw | 0.04(0.055HP) | 0.04(0.055HP) | 0.04(0.055HP) | 0.04(0.055HP) | ||||
Machine(L×W×H) | mm | 1420×750×760 | 1780×750×760 | 1420×750×760 | 1780×750×760 | ||||
Stand(left) (L×W×H) | mm | 400×370×700 | 400×370×700 | 400×370×700 | 400×370×700 | ||||
Stand(right) (L×W×H) | mm | 300×370×700 | 300×370×700 | 300×370×700 | 300×370×700 | ||||
Machine | Kg | 380/430 | 395/445 | 382/432 | 400/450 | ||||
Stand | Kg | 60/65 | 60/65 | 60/65 | 60/65 | ||||
Loading amount | 27pcs/20’container | 24pcs/20’container | 27pcs/20’container | 24pcs/20’container |
