C0632A-TOP Economic Metal Mini Bench Lathe

Small metal processing machine.
Minimum order quantity: 1
Color:
Quantity:
  • C0632A-TOP

  • MACH

C0632A-TOP Economic Metal Mini Bench Lathe


features
-Precision ground hardened bedways.
-The spindle is supported wish precision roller bearings.
-Headstock gears are made of high quality steel, ground and hardened.
-Removable gap is provided for larger diameter work.
-Easy operation speed change levers.
-Easy operating gear box has various feeds and thread cutting function.
-Two types for selection: with foot stand in reserve or without foot stand.



Specifications

MODELS
C0632A-TOP×750
C0632A-TOP×1000
C0636A-TOP×750
C0636A-TOP×1000
Swing over bed 330mm(13") 360mm(14")
Swing over cross slide 198mm(7-25/32") 224mm(8-13/16")
Swing in gap diameter 476mm(18-3/4") 502mm(9-1/3")
Swing in length 210mm(8-1/4") 210mm(8-1/4")
Center height 166mm(6-1/2") 179mm(7")
Admits between 750mm(30") 1000mm(40") 750mm(30") 1000mm(40")
Bed width 187mm(7-3/8") 187mm(7-3/8")
Bed length 1405mm(55-5/16") 1655mm(65-1/8") 1405mm(55-5/16") 1655mm(65-1/8")
Bed height 290(11-13/32") 290(11-13/32")
Spindle bore 38mm(1-1/2") 38mm(1-1/2")
Spindle nose D1-4"  D1-4"
Taper in nose NO.5 morse NO.5 morse
Speeds number 8 8
Speeds range 70-2000r.p.m. 70-2000r.p.m.
Cross slide width 130mm(5-3/32") 130mm(5-3/32")
Cross slide travel 170mm(6-11/16") 170mm(6-11/16")
Compound rest travel 80mm(3-1/8") 80mm(3-1/8")
Lead screw diameter 22mm(7/8") 22mm(7/8")
Lead screw thread 8T.P.I. or 3mm pitch 8T.P.I. or 3mm pitch
Feed rod diameter 19mm(3/4") 19mm(3/4")
Cutting tool max section 16mm×16mm(5/8"×5/8") 16mm×16mm(5/8"×5/8")
Threads imperial pitches 34 Nos.4-56 T.P.I  34 Nos.4-56 T.P.I
Threads metric pitches 26 Nos.0.4-7mm pitch 26 Nos.0.4-7mm pitch
Longitudinal feeds imperial 32 Nos.0.002-0.0548"/Rev 32 Nos.0.002-0.0548"/Rev
Longitudinal feeds metric 32 Nos.0.052-1.392mm/Rev 32 Nos.0.052-1.392mm/Rev
Cross feeds imperial 32 Nos.0.0007-0.0187"/Rev 32 Nos.0.0007-0.0187"/Rev
Cross feeds metric 32 Nos.0.014-0.380mm/Rev 32 Nos.0.014-0.380mm/Rev
Quill diameter 32mm(1-1/4") 32mm(1-1/4")
Quill travel 100mm(3-15/16") 100mm(3-15/16")
Quill taper  NO.3 morse  NO.3 morse
For main motor 2PH,3PH or 2PH,1PH 2PH,3PH or 2PH,1PH




Photos

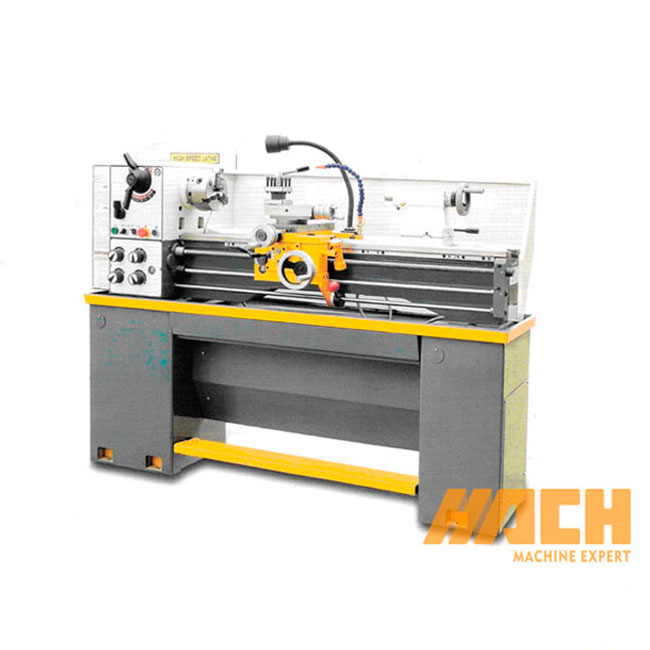

C0636A-TOP-Economic-Small-Metal-Bench-Lathe-Machine-(2)






Standard-Parts

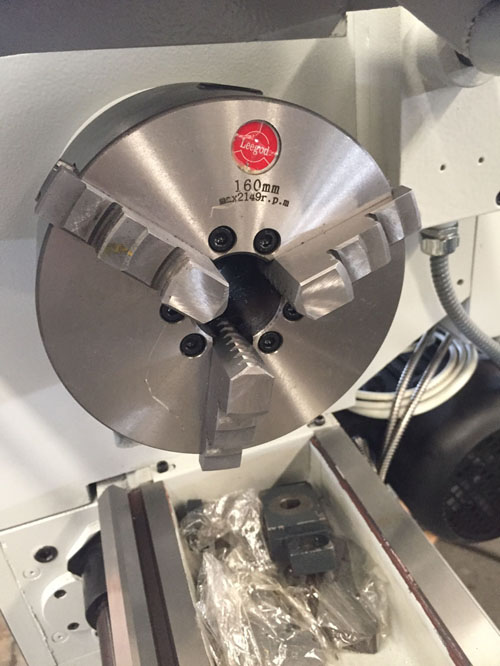

3-jaws selfcentering chuck
4-jaws independent chuck
Steady rest
Follow rest
Foot brake pedal
Coolant system
Working light
Face Plate
Lathe stand
4 Station tool post
Reduction sleeves
Dead center
Operation Tools Kit
Change gear
Chip tray and full splash guard
Chasing dial indicator

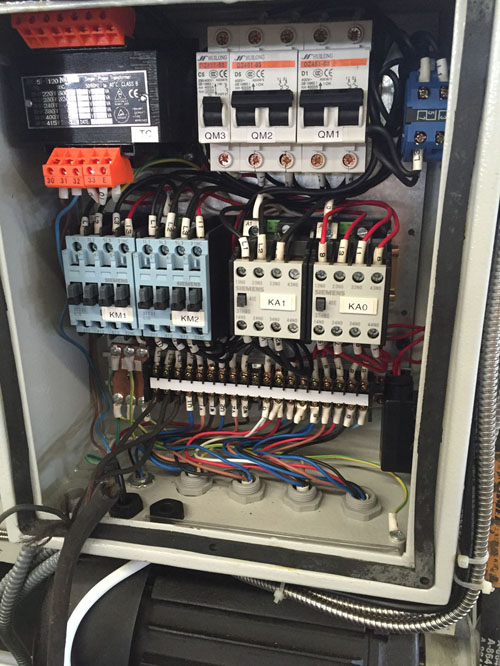

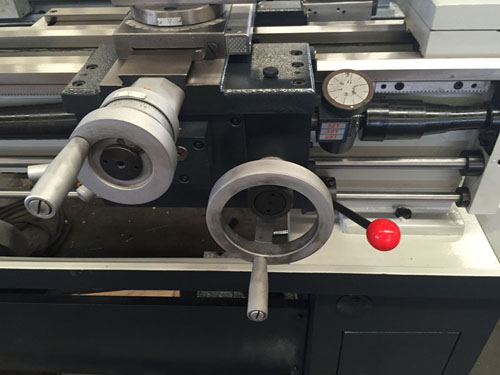

      C0636A-TOP Economic Small Metal Bench Lathe Machine (3)                          C0636A-TOP Economic Small Metal Bench Lathe Machine (6)

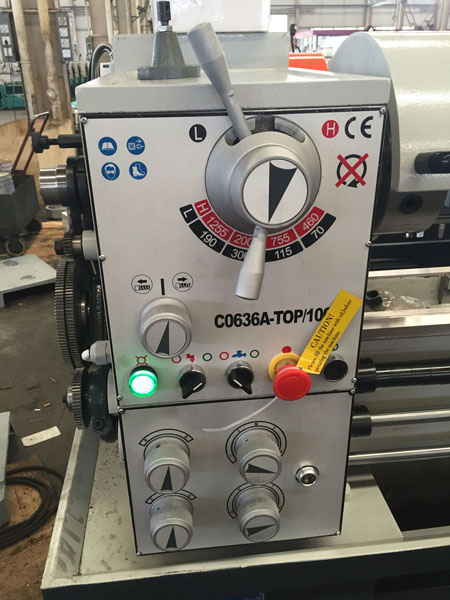

  C0636A-TOP Economic Small Metal Bench Lathe Machine (4)             C0636A-TOP Economic Small Metal Bench Lathe Machine (5)





Optional-Parts

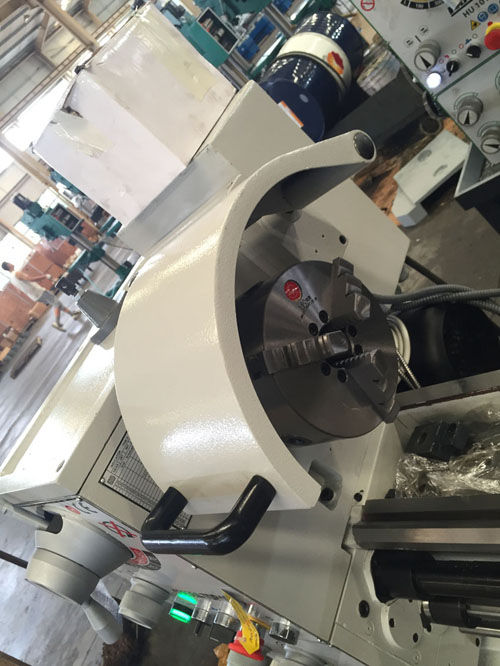

Chuck Cover
Leadscrew Cover
Tool post guard
MT3 Live Center
Taper Attachment
2 axis SINO DRO
3 axis SINO DRO



Certificate
CE




Guarantee

Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the bench lathe . We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:

  • The bench lathes are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
  • When the bench lathes are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
  • During this period of one year warranty , if the bench lathes were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
  • During this period of warranty, if there is something wrong with the bench lathe, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
  • After the warranty, we charge only cost price for maintaining the bench lathes within three years.
  • Other after-sale terms can be agreed by buyer and seller in addition.
