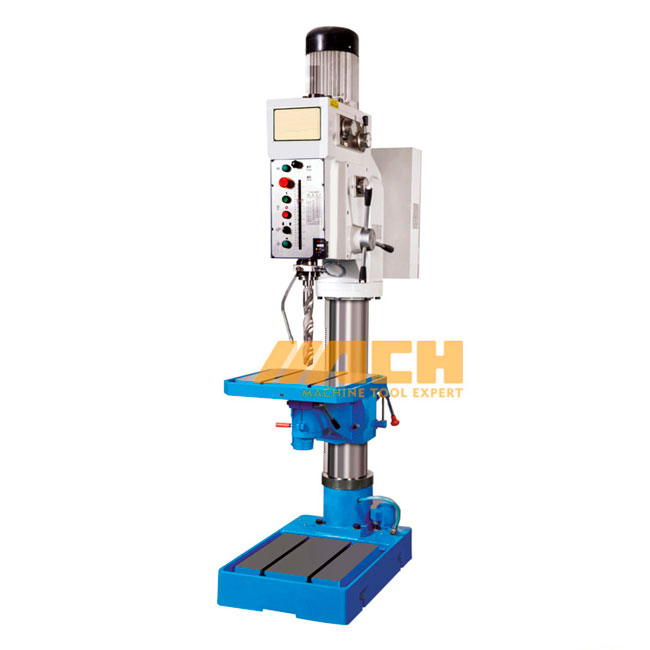

Z5030 Z5035 Square Column Vertical Drilling Machine

Square Column Vertical Drilling Machine
MOQ: 1

Color:
Quantity:
  • Z5030 Z5035
  • MACH
Z5030 Z5035 Square Column Vertical Drilling Machine


features

1 The Drilling Machine Z5035 is equipped with:Auto spindle power down feeder,cooling system,Working light,Big Viceworktable,2step motor with 12 steps speed which can improve the machining accuracy and producing efficiency.
2 Drilling, tapping, boring, reaming,Strong column,Vice table,Gear drive, lower noise.Heavy-duty tapered roller bearing spindle,Positive spindle lock.



Specifications

Model Z5035 Z5030
Max. Drilling capacity (mm) 35 30
Max. Tapping capacity (mm) M24 M20
Diameter of column (mm) 140 120
Spindle travel (mm) 160 135
Distance spindle axis to column generating line (mm) 330 320
Max. Distance spindle nose to table (mm) 460 550
Max. Distance spindle nose to table (mm) 1200 1100
Spindle taper MT4 MT3 or MT4
Spindle speeds range (r/min) 75-2500 65-2600
Spindle speeds series 12 12
Spindle feeds (r/min) 0.1 0.2 0.3 0.1 0.2 0.3
Dimension of worktable surface (mm) 500×440 500×440
Table travel (mm) 550 490
Dimension of base table (mm) 400×390 400×390
Overall height (mm) 2300 2050
Main motor (KW) 1.5/2.2 1/1.5
Coolant motor (W) 40 40
G.W/N.W (kg) 670/600 500/440
Packing dimension (cm) 108×62×215 108×62×215






Guarantee

Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the drilling machine. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:

  • The drilling machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
  • When the drilling machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
  • During this period of one year warranty , if the drilling machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
  • During this period of warranty, if there is something wrong with the drilling machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
  • After the warranty, we charge only cost price for maintaining the drilling machines within three years.
  • Other after-sale terms can be agreed by buyer and seller in addition.
