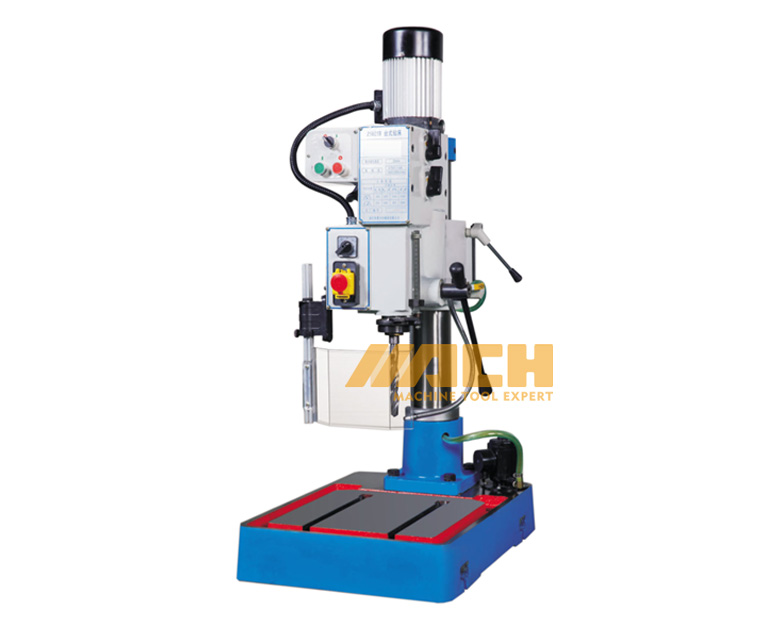

Z5025 Gear Type Vertical Pillar Type Drilling Machine

Pillar Type Drilling Machine
MOQ: 1

Color:
Quantity:
  • Z5025
  • MACH
Z5025 Gear Type Vertical Pillar Type Drilling Machine


features

1. Change speed with gears and operate easily.
2. High spindle speed and wide and wide speed range.
3. Characteristic auto tool releasing device guarantees it is very easy to change tool.
4. Equipped with coolant system and work lamp.
5. Ideal choice for single piece, small batch and mass.
6. Production for drilling, counter boring, reaming, tapping, spot facing, etc.



Specifications


Model Z5025B Z5025
Max. Drilling capacity (mm) 25 25
Diameter of column (mm) 100 100
Spindle travel (mm) 150 150
Distance spindle axis to column generating line (mm) 225 225
Max. Distance spindle nose to table (mm) / 630
Max. Distance spindle nose to table (mm) 550 550
Spindle taper MT3 MT3
Spindle speeds range (r/min) 100-2900 100-2900
Spindle speeds series 8 8
Dimension of worktable surface (mm) / Φ440
Table travel (mm) 560 560
Dimension of base (mm) 690×500 690×500
Overall height (mm) 1390 1900
Main motor (KW) 0.75/0.55 0.75/0.55
Coolant motor (W) 40 40
G.W/N.W (kg) 300/250 300/250
Packing dimension (cm) 70×52×120 78×57×180





Guarantee

Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the pillar type drilling machine. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:

  • The pillar type drilling machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
  • When the pillar type drilling machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
  • During this period of one year warranty , if the pillar type drilling machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
  • During this period of warranty, if there is something wrong with the pillar type drilling machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
  • After the warranty, we charge only cost price for maintaining the pillar type drilling machines within three years.
  • Other after-sale terms can be agreed by buyer and seller in addition.
