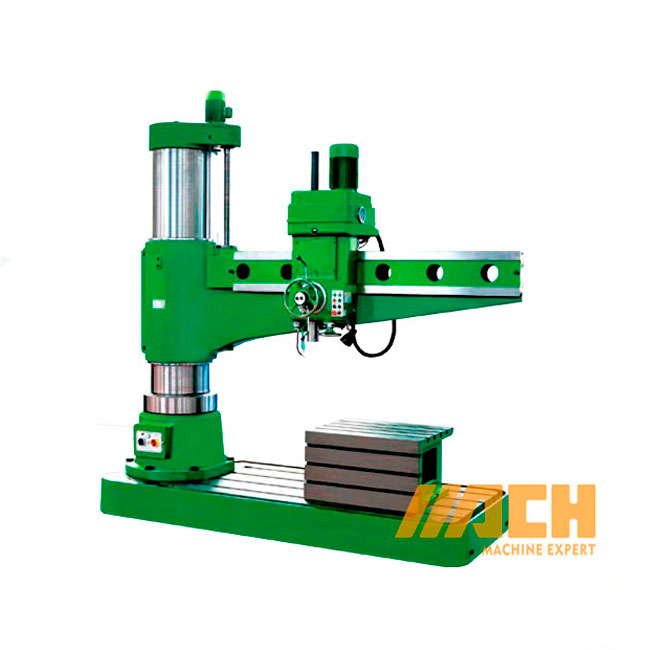

Z3080x25 Hydraulic Radial Drilling Machine Price Rock Drilling Machine

Rock Drilling Machine
Minimum Order Quantity: 1

Color:
Quantity:
  • Z3080x25
  • MACH
Z3080x25 Hydraulic Radial Drilling Machine Price Rock Drilling Machine


features

1 Gather mechanical-electrical-hydraulic functions, use extensively.
2 With wide range of speed and feed, with manual, power and fine feeds. The feed of machines are very easily engaged and disengagedat any time.
3 With safe and reliable feed safety machine, all parts easy operation and change.
4 All controls centralized on the head stock easy operation and change. Clamping for assemblies and speed change of spindle achiered by hydraulic power.
5 Main parts are made by machine center which import form KIA with high precision and efficiency, ensuring reliability and high quality.
6 Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts.
7 Spindle parts are made by special high quality steel heat treatment to be made by first class equipments, ensuring high strength and durability.
8 Main gears are machined by gear grinding , the machine ensuring high precision and low noise.



Specifications

SPECIFICATION Z3080X25
Max. drilling capacity mm 80
Span Range mm 500-2500
diameter of column mm 550
Spindle taper MT6
Spindle travel mm 450
Spindle speeds range r/min 16-1250
Spindle speeds series 16
Range of spindle feeds mm/r 0.04-3.2
Mpindle spindle feeds 16
Distance spindle nose to woring surface of base mm 550-2000
Dimension of worktable mm 1000x800x560
Dimension of base mm 3530x1400x300
Overall size Mm 3730x1400x3790
Power of main motor Kw 7.5
G.W/ N.W kg 10450/10000
Packing dimension cm 387x162x223/373x154x153





Standard-Parts

1 . Plain Box Table
2 . Taper sleeve
3 . Tool releasing Wrench
4 . Drift
5 . Eyelet bolts





Guarantee

Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the rock drilling machine. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:

  • The rock drilling machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
  • When the rock drilling machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
  • During this period of one year warranty , if the rock drilling machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
  • During this period of warranty, if there is something wrong with the rock drilling machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
  • After the warranty, we charge only cost price for maintaining the rock drilling machines within three years.
  • Other after-sale terms can be agreed by buyer and seller in addition.
