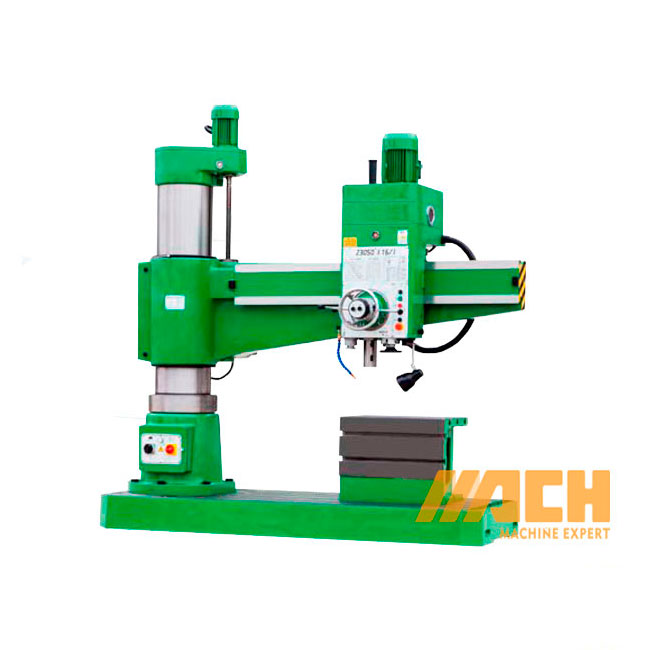

Z3050x16/1 Automatic Professional Mechanical Metal Radial Drilling Machine

Radial Drilling Machine
Minimum Order Quantity: 1

Color:
Quantity:
  • Z3050x16/1
  • MACH
Z3050x161 Automatic Professional Mechanical Metal Radial Drilling Machine


features

1.Counter balanced spindle.
2.Pressurized lubrication system.
3.Hydraulic clamping with push button controls.
4.Hydraulic preselected shifting of feeds and speeds.
5.Hardended and precision ground ways.
6.Hardened and ground gears and shafts.
7.Heavily ribbed cast iron base and arm.




Specifications

Model Z3050X16/1 Z3050X16/2
Max drilling dia 50mm 50mm
Size of plate working surface 1600mmx1000mm 1600mmx1000mm
Spindle extension 2000mm/350mm 2000mm/350mm
Distance from spindle axis to column (min/max) 350mm~1600mm 350mm~1600mm
Column Diameter 350mm 350mm
Spindle taper MT5 MT5
Spindle travel 315mm 315mm
Spindle speeds (range) 25-2000 25-2000
Spindle speeds (number) 16 16
Spindle feeds (range) 0.04~3.2r/min 0.04~3.2r/min
Spindle feeds (number) 16 16
Distance between spindle & working surface of base (min/max) 320mm~1220mm 320mm~1220mm
Worktable dimension 630mm×500mm×500mm 630mm×500mm×500mm
Base dimension 2400mm×1000mm×200mm 2400mm×1000mm×200mm
Overall dimensions 2500×1060×2650 2500×1060×2650
Spindle motor 5.5HP 5.5HP
G.W. / N.W. 3650kgs / 3400kgs 3650kgs / 3400kgs
Packing dimensions 270cm×112cm×255cm 270cm×112cm×255cm





Standard-Parts

1 . Plain Box Table
2 . Taper sleeve
3 . Tool releasing Wrench
4 . Drift
5 . Eyelet bolts



Optional-Parts

MACHINE VICE 250MM





Guarantee

Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the radial drilling machine. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:

  • The radial drilling machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
  • When the radial drilling machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
  • During this period of one year warranty , if the radial drilling machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
  • During this period of warranty, if there is something wrong with the radial drilling machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
  • After the warranty, we charge only cost price for maintaining the radial drilling machines within three years.
  • Other after-sale terms can be agreed by buyer and seller in addition.
