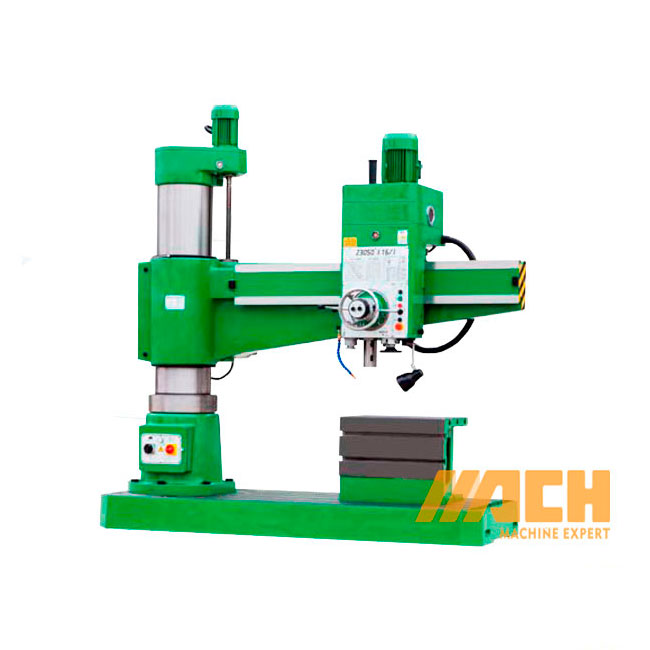

Z3050x12/1 Chinese Best Price Manual Radial Arm Drilling Machine

Radial Arm Drilling Machine
Minimum Order Quantity: 1

Color:
Quantity:
  • Z3050x12/1
  • MACH
Z3050x12/1 Chinese Best Price Manual Radial Arm Drilling Machine


features

1 Main parts are made by machine center which import form KIA with gigh precision and efficiency, ensuring reliability and high quality.
2 Integrating technology for casting parts is excellent,adopting casting equipment,ensuring high quality of materia for basic parts.
3 Spindle parts are made by special high quality steel heat treatment to be made by first class equipments, nsuring high strength.
4 Main gears are machined by gear grinding, the machine ensuring high precision and low noise.




Specifications

Specification Unit Z3050×12/1
Table size mm 500×630
Spindle travel mm 315
Max. drilling diameter mm 50
Distance between spindle axis and column mm 350-1600
Distance between spindle nose and working surface of base plate mm 320-1220
Spindle taper Morse No. 5#
Range of spindle speeds rpm 25-2000
Number of spindle speeds step 16
Range of spindle feeds mm/r 0.04-3.20
Number of spindle feeds step 16
Distance of headstock horizontal movement mm 1250
Spindle motor power kw 4
Net weight kg 3500/3100
Overall dimensions(L×W×H) mm 2150*1060*2650




Standard-Parts

1 . Box Shape Worktable
2 . Taper sleeve
3 . Tool releasing Wrench
4 . Drift
5 . Eyelet bolts



Optional-Parts


MACHINE VICE 250MM





Guarantee

Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the radial arm drilling machine. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:

  • The radial arm drilling machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
  • When the radial arm drilling machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
  • During this period of one year warranty , if the radial arm drilling machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
  • During this period of warranty, if there is something wrong with the radial arm drilling machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
  • After the warranty, we charge only cost price for maintaining the radial arm drilling machines within three years.
  • Other after-sale terms can be agreed by buyer and seller in addition.
