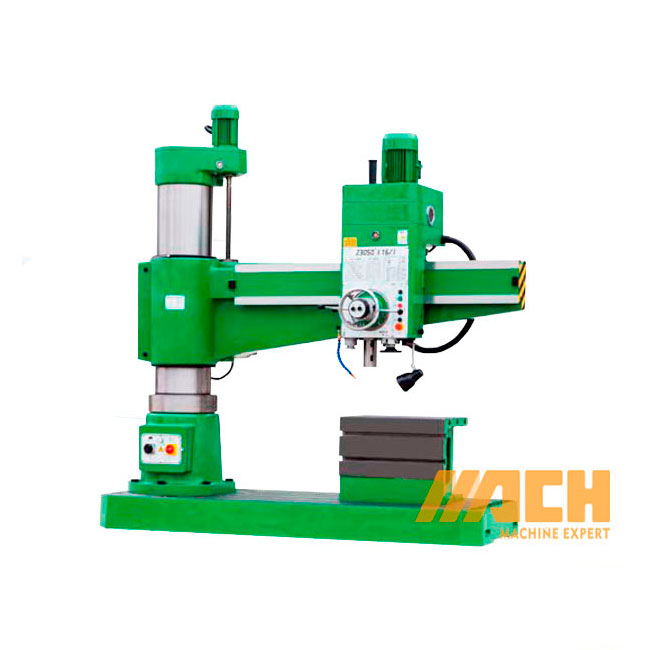

Z3040x8/1 Cheap Precision Column Arm Radial Drill Machine

Radial Drill Machine
Minimum Order Quantity: 1

Color:
Quantity:
  • Z3040x8/1
  • MACH
Z3040x8/1 Cheap Precision Column Arm Radial Drill Machine


features

1. With safe and reliable feed insurance and all controls centralized on the head stock,the machine is easy to operate and change.

2. Main parts are made by machining center which is imported from KIA with high precision and efficiency, ensuring reliability and high quality.

3. Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts.

4. Spindle parts are made by special high quality steel heating treatment to be made by first class equipment, ensuring high rigidity and durability.

5. Main gears are machined by gear grinding, the machine works in low noice and high quality.

6. With small size and full function, the machine is widly used in drilling, counterboring, tapping, etc.





Specifications

SPECIFICATION
Z3040X8/1
Max.drilling capacity mm 40
distance spindle axis to column generating line mm 320-820
diamete of colum mm 240
Spindle taper MT4
Spindle travel mm 240
Spindle speeds range r/min 75-1220
Spindle speeds series 6
Range of spindle feeds mm/r 0.1-0.25
Mpindle spindle feeds 3
Distance spindle nose to woring surface of base mm 120-860
Dimension of worktable mm 400x400x350





Standard-Parts

1 . Plain Box Table
2 . Taper sleeve
3 . Tool releasing Wrench
4 . Drift
5 . Eyelet bolts





Guarantee

Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the radial drill machine. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:

  • The radial drill machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
  • When the radial drill machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
  • During this period of one year warranty , if the radial drill machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
  • During this period of warranty, if there is something wrong with the radial drill machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
  • After the warranty, we charge only cost price for maintaining the radial drill machines within three years.
  • Other after-sale terms can be agreed by buyer and seller in addition.
