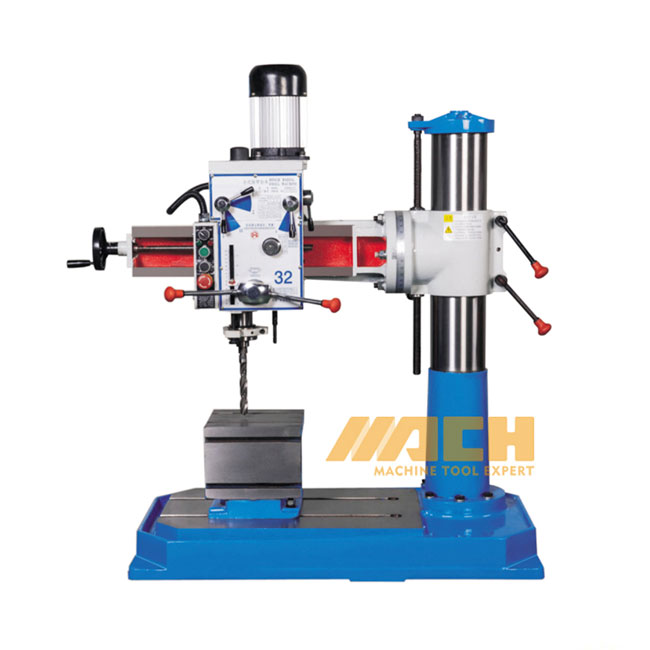

Z3032x7P Radial Drill Press Arm Radial Drilling Machine

Radial Drilling Machine
Minimum Order Quantity: 1

Color:
Quantity:
  • Z3032x7P
  • MACH
Z3032x7P Radial Drill Press Arm Radial Drilling Machine


features
1. With wide range of speed, with manual, power feeds. The of machines are very easily engaged and disengaged at any time.
2. The radial arm can rotate and can tilt ±45°. It is reliable and it is convenient to drill.
3. Main parts are made by machine center which is imported from KIA with high precision and efficiency, It can ensure reliability and high quality.
4. The machine with small apperance and much function, the machine are widely used for drilling, counterboring, reaming, tapping etc.



Specifications

Model Z3032×7P
Max. Drilling capacity(mm) 31.5
Max. Tapping capacity(mm) Cast lron 20 Steel 16
Distance spindle axis to column generating line 300~700
Diameter of column(mm) 150
Spindle taper MT3
Spindle travel 130
Spindle speeds range(mm) 100~1600
Spindle speeds series 8
Spindle feeds(r/min) 0.08、0.14、0.23
Rotary angle of rocker in horizontal plane( °) 360
Distance between spindle nose to working surface of base(mm) 275~680
Dimension of Base(mm) 250×250×250
Diameter of base(mm) 1200×625×155
Overall size(mm) 1235×625×1230
Motor(w) 750 or 1100
G.W./N.W.(Kg) 540/500
Packing dimension(cm) 127×69×137




Photos

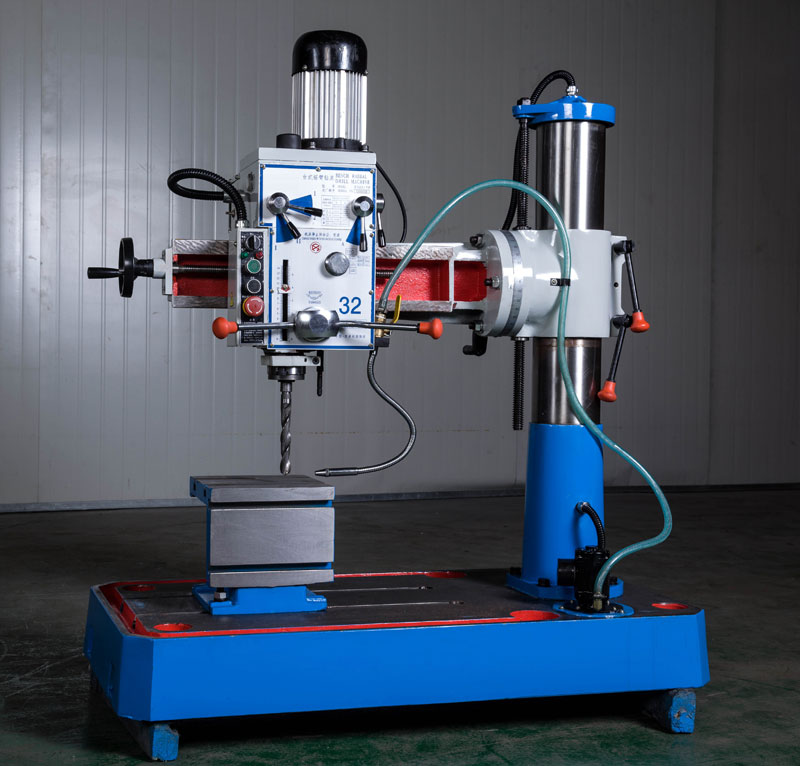

Z3032x7P Radial Drill Press Arm Radial Drilling Machine (2)

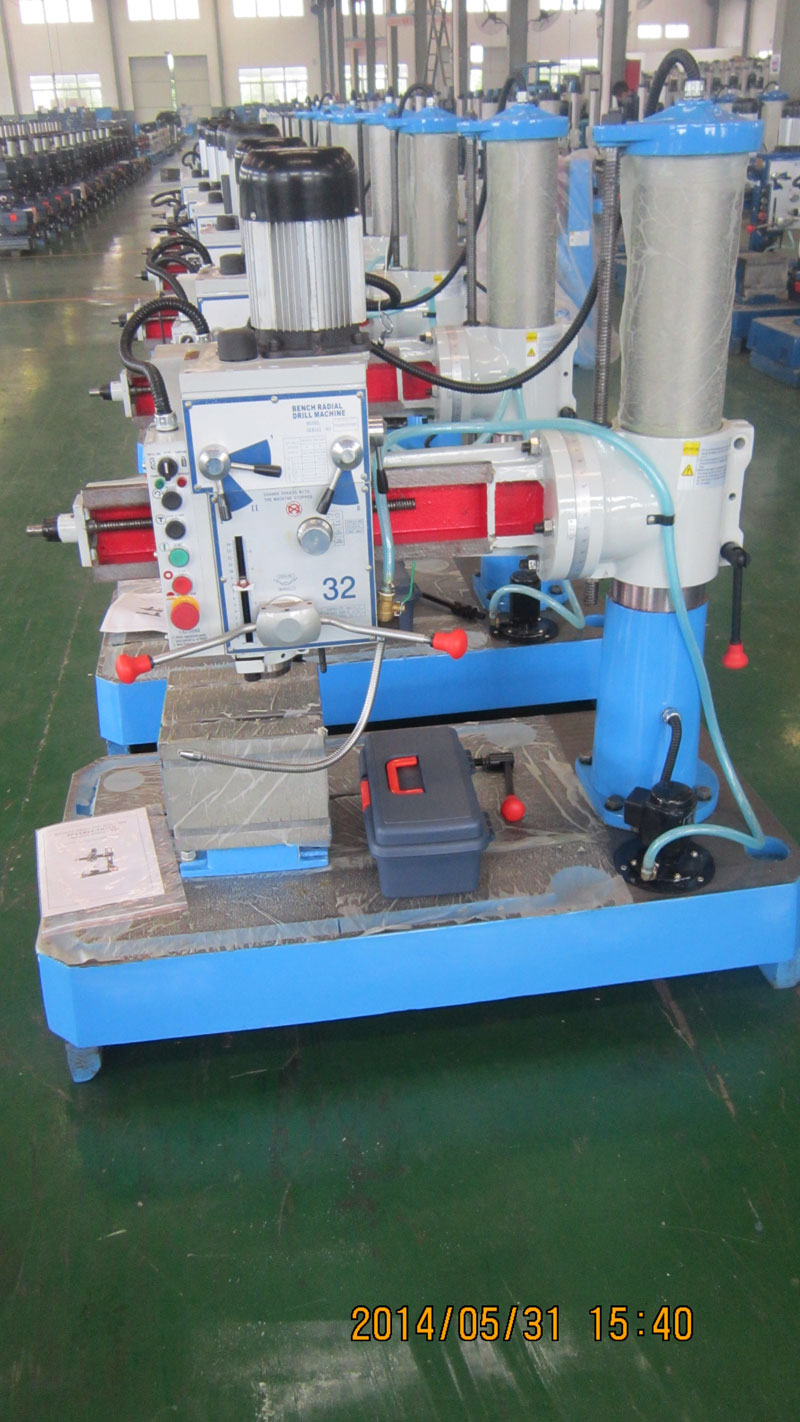

Z3032x7P Radial Drill Press Arm Radial Drilling Machine (3)

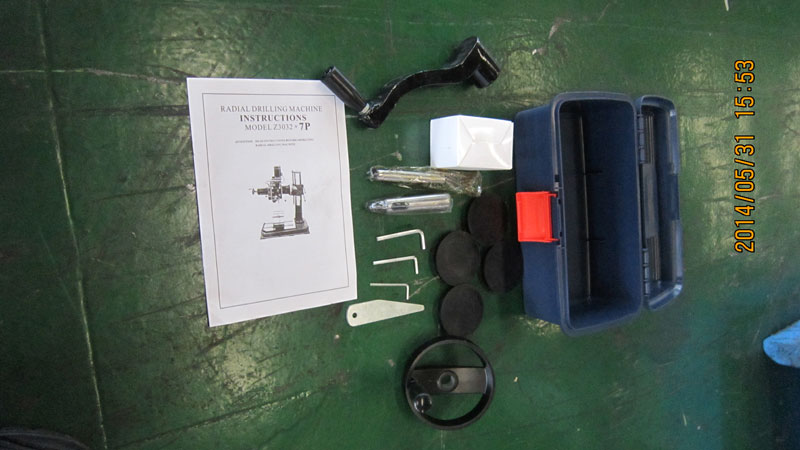

Standard-Parts

Drill chuck 16mm

Taper sleeve

Arbor

Drift

Box shape worktable

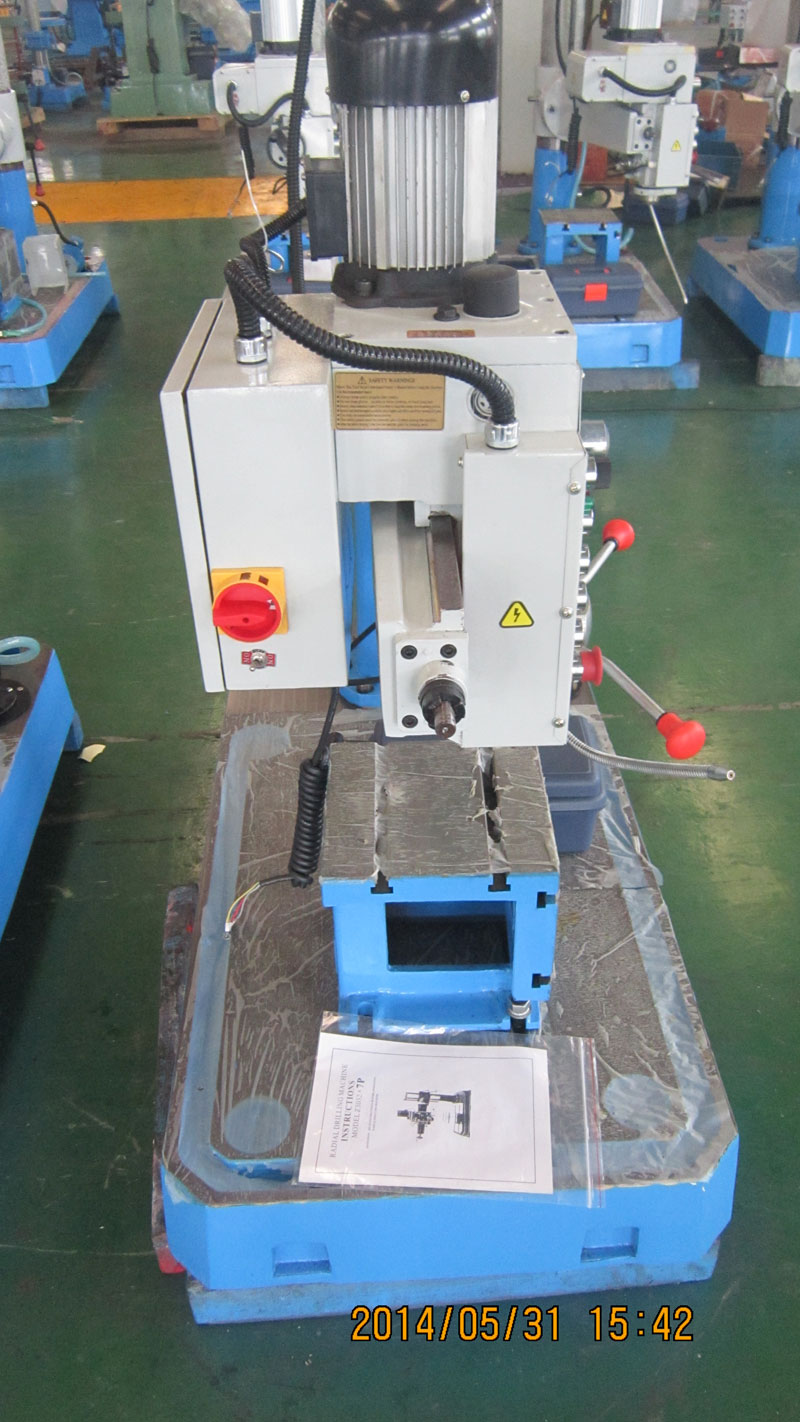

Z3032x7P Radial Drill Press Arm Radial Drilling Machine (4)

Z3032x7P Radial Drill Press Arm Radial Drilling Machine (5)





Guarantee

Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the radial drilling machine. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:

  • The radial drilling machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
  • When the radial drilling machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
  • During this period of one year warranty , if the radial drilling machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
  • During this period of warranty, if there is something wrong with the radial drilling machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
  • After the warranty, we charge only cost price for maintaining the radial drilling machines within three years.
  • Other after-sale terms can be agreed by buyer and seller in addition.
