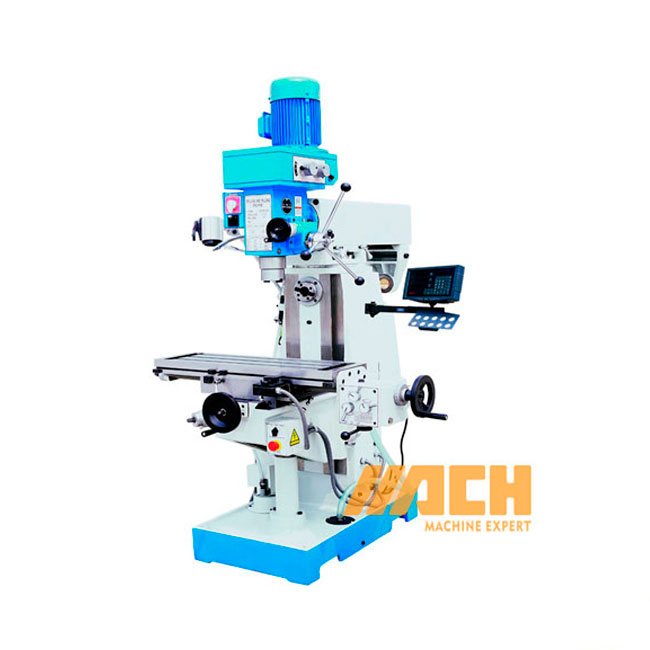

XZ7550CW Small Educational Vertical Drill Mill Machine

Drill Mill Machine
MOQ: 1

Color:
Quantity:
  • XZ7550CW
  • MACH
XZ7550CW Small Educational Vertical Drill Mill Machine


Specifications

Specification unit XZ7550CW
Table size mm 800X240
T slot no 5
Size ( Width ) mm 14
Centre distance mm 44
Max. load of Table kg 150
Table Longitudinal travel mm 385
Table Cross travel (manual/auto) mm 170
Table Vertical travel(manual/auto) mm 335
Spindle taper ISO40
Spindle speed /step — Vertical rpm 115-1750/8steps
–Horizontal rpm 58-1355/9steps
Max.drilling dia. mm 30
Max.end milling width mm 100
Max. vertical milling Dia. mm 25
Max.tapping dia. mm M16
Quill travel mm 120
Swivel angle of headstock degree ±45o
Vertical spindle axis to column surface mm 210-600
Vertical spindle nose to table surface mm 60-390
Horizontal spindle axis to table surface mm 0-300
Horizontal spindle axis to ram bottom mm 175
Ram travel mm 390
Longitudinal/cross feed mm / min 24-720/8steps
Longitudinal/cross rapid speed mm / min 1040(X)
Main motor kW 0.85/1.5(V),1.5(H)
(X/Y/Z) Feed motor kW 0.37(X)
Coolant motor kW 0.04
Package dimension cm 114x122x222 1pc/case
114x122X222 2pcs/case
Overall dimension cm 129x122x210
Machine weight kg 970




Guarantee

Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the drill mill machine. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:

  • The drill mill machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
  • When the drill mill machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
  • During this period of one year warranty , if the drill mill machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
  • During this period of warranty, if there is something wrong with the drill mill machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
  • After the warranty, we charge only cost price for maintaining the drill mill machines within three years.
  • Other after-sale terms can be agreed by buyer and seller in addition.
