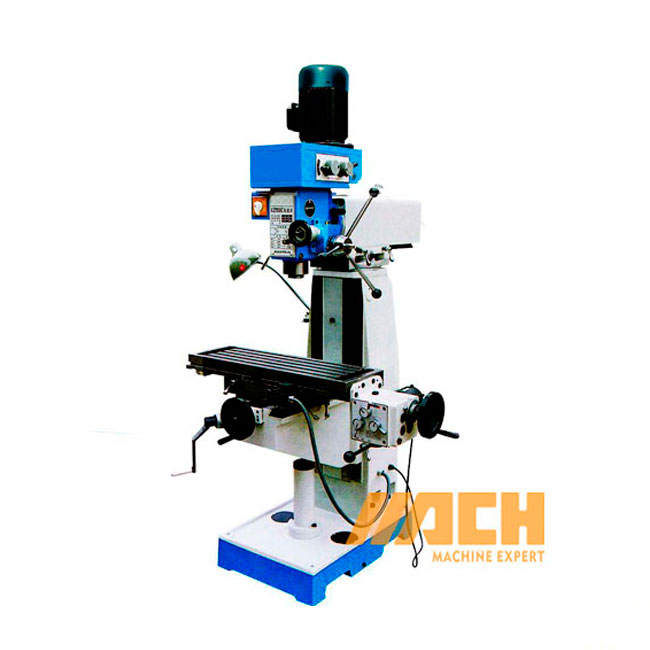

XZ7550C Mini Vertical Mill Drill Machine

Mill Drill Machine
MOQ: 1

Color:
Quantity:
  • XZ7550C
  • MACH
XZ7550C Mini Vertical Mill Drill Machine


Specifications

Specification unit XZ7550C
TABLE :
Table size mm 800X240
T slot no 5
Size ( Width ) mm 14
Centre distance mm 44
Max. load of Table kg 150
MACHINING RANGE :
Table Longitudinal travel(manual/auto) mm 385
Table Cross travel (manual/auto) mm 170
Table Vertical travel(manual/auto) mm 335
MAIN SPINDLE :
Spindle taper ISO40
spindle speed /step — Vertical rpm 115-1750/8steps
Max.drilling dia. mm 30
Max.end milling width mm 100
Max. vertical milling Dia. mm 25
Max.tapping dia. mm M16
Quill travel mm 120
Swivel angle of headstock degree ±45o
Vertical spindle axis to column surface mm 210-500
Vertical spindle nose to table surface mm 70-420
Ram travel mm 290
Main motor kw 0.85/1.5
Overall dimension cm 129x114x210
Machine weight kg 800




Guarantee

Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the mill drill machine. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:

  • The mill drill machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
  • When the mill drill machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
  • During this period of one year warranty , if the mill drill machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
  • During this period of warranty, if there is something wrong with the mill drill machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
  • After the warranty, we charge only cost price for maintaining the mill drill machines within three years.
  • Other after-sale terms can be agreed by buyer and seller in addition.
