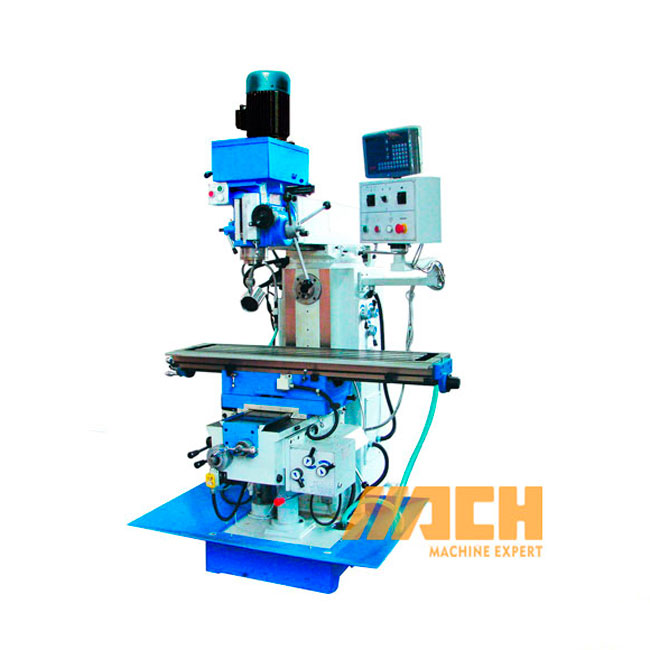

XZ6350ZS Gear Head Vertical Milling Drilling Machine

Milling Drilling Machine
MOQ: 1

Color:
Quantity:
  • XZ6350ZS
  • MACH
XZ6350ZS Gear Head Vertical Milling Drilling Machine


Specifications

Specification XZ6350ZS
Table size (mm) 1270×320
Table travel (mm) 730/270/330
Max. drilling dia. Φ30mm(cast Iron)
Max. drilling dia. ( power feed) Φ10mm(Steel) Φ14mm(cast Iron)
Max. end milling dia. Φ25mm
Spindle taper ISO40
Spindle speed steps 8 (V) 12 (H)
Spindle speed range 90—2000 r.p.m. (V)
(50Hz) 60—1350r.p.m. (H)
Distance between vertical spindle axis and surface of column 220mm—560mm
Distance between vertical spindle nose and surface of table 120mm—500mm
Distance between horizontal spindle axis and surface of table 10—340mm (H)
Vertical spindle travel 120mm (V)
Motor 2.2kW(V)
2.2 kW(H)
0.75 kW (Feed motor)
Overall size (mm) 1680×1640×2200
N.W. 1650kg




Guarantee

Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the milling drilling machine. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:

  • The milling drilling machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
  • When the milling drilling machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
  • During this period of one year warranty , if the milling drilling machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
  • During this period of warranty, if there is something wrong with the milling drilling machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
  • After the warranty, we charge only cost price for maintaining the milling drilling machines within three years.
  • Other after-sale terms can be agreed by buyer and seller in addition.
