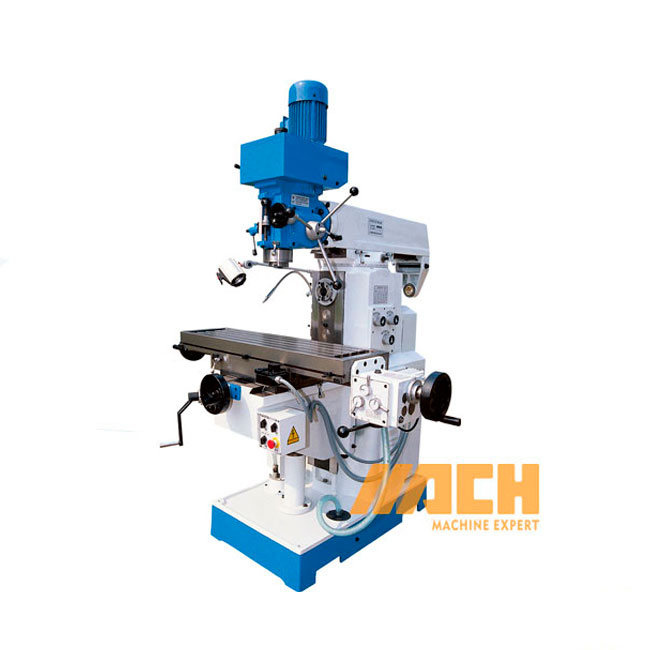

XZ6350Z Universal Vertical Drilling Milling Machine

Drilling Milling Machine
MOQ: 1

Color:
Quantity:
  • XZ6350Z
  • MACH
XZ6350Z Universal Vertical Drilling Milling Machine


Specifications

Specification unit XZ6350Z
Table size mm 1120X260
T slot no./width/distance no 5/14/50
Max. load of Table kg 250
table Longitudinal travel(manual/auto) mm 600
table Cross travel(manual/auto) mm 300
table Vertical travel(manual/auto) mm 300
Spindle taper ISO40
spindle speed /step — Vertical rpm 90-2000/8steps
–Horizontal rpm 40-1300/12steps
Max.drilling dia. mm 30
Max.end milling width mm 125
Max. vertical milling Dia. mm 25
Max.tapping dia. mm 16
quill travel mm 120
swivel angle of headstock degree ±45o
vertical spindle axis to column surface mm 160-660
vertical spindle nose to table surface mm 100-430
horizontal spindle axis to table surface mm 40-320
horizontal spindle axis to ram bottom mm 175
ram travel mm 500
Longitudinal/cross feed mm / min 24-720/8steps
Longitudinal/cross rapid speed mm / min 1040(X)
automatic spindle feed 0.08/0.15/0.25
main motor kw 2.2(V/H)
feed motor kw 0.37(X)
coolant motor kw 0.04
package dimension cm 160X152X222 1pc/case
overall dimension cm 152X129X215
N/W,G/W kg 1350/1500




Guarantee

Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the drilling milling machine. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:

  • The drilling milling machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
  • When the drilling milling machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
  • During this period of one year warranty , if the drilling milling machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
  • During this period of warranty, if there is something wrong with the drilling milling machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
  • After the warranty, we charge only cost price for maintaining the drilling milling machines within three years.
  • Other after-sale terms can be agreed by buyer and seller in addition.
