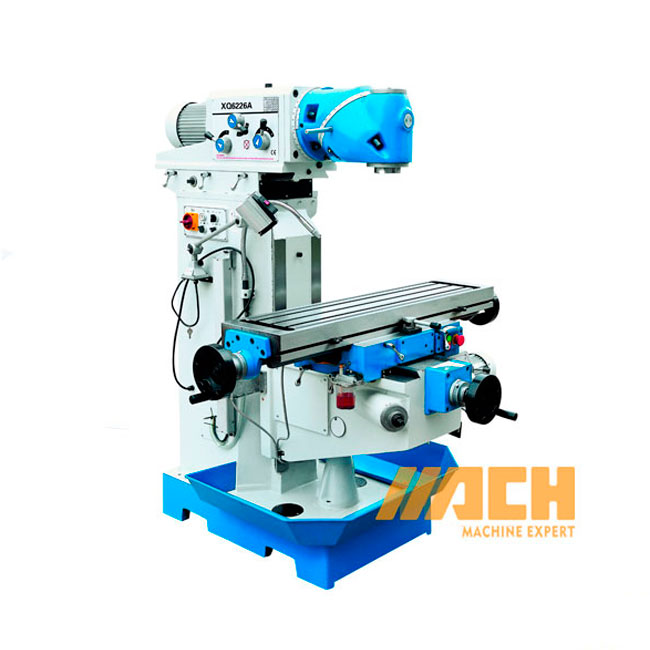

XQ6226 China Precision Vertical Universal Swivel Head Mill Machine

Universal Swivel Head Mill Machine
MOQ: 1

Color:
Quantity:
  • XQ6226
  • MACH
XQ6226A/B China Precision Vertical Universal Swivel Head Mill Machine


Specifications

 Unit XQ6226B XQ6226A XQ6226-1G
Table Size mm 1120X260 1120X260 1120X260
Table Travel mm 600X270 600X270 600X300
Spindle Taper ISO40 ISO40 ISO40
Distance From Spindle Nose To Table Surface mm 100-480 100-480 100-480
Maximum End Milling Width mm 125 125 125
Maximum Vertical Milling Diameter mm 25 25 25
Spindle Speed Range rpm 45-1660 45-1660 45-1660
Swivel angle of swivel  head degree 360º 360º 360º
Overall dimension mm 1660x1500x1730 1660x1500x1730 1655x1325x1730
Spindle Motor Power kw 2.2 2.2 2.2
Machine Weight kg 1480 1400 1300





Standard-Parts

Quartz Lamp
Cooling
Emergency Stop
CE standard electrical components




Optional-Parts

3-axes SINO DRO
Flat Vise 200mm
Universal dividing head F11125A
Rotary table TS250A
Main shaft protection




Guarantee

Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the swivel head mill machine. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:

  • The universal mill machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
  • When the swivel head mill machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
  • During this period of one year warranty , if the swivel head mill machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
  • During this period of warranty, if there is something wrong with the swivel head mill machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
  • After the warranty, we charge only cost price for maintaining the swivel head mill machines within three years.
  • Other after-sale terms can be agreed by buyer and seller in addition.
