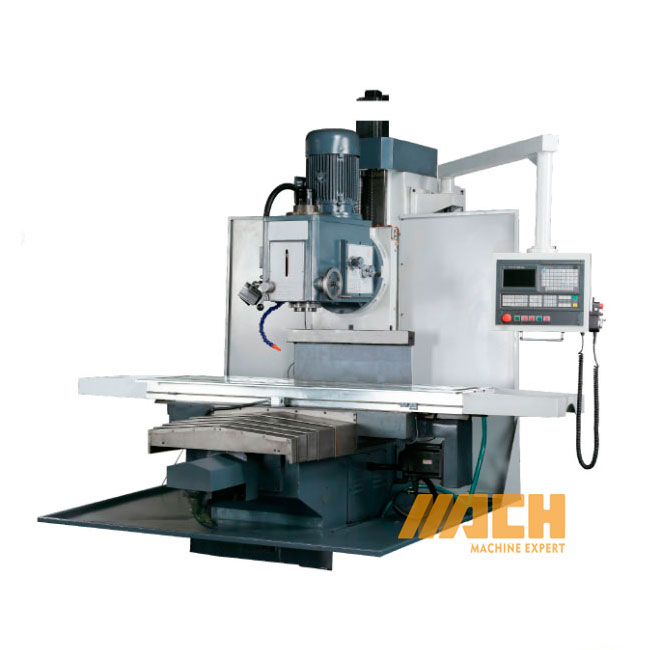

XKA7150 China 3 Axis Vertical Bed Type CNC Milling Machine

CNC Milling Machine
MOQ: 1

Color:
Quantity:
  • XKA7150
  • MACH
XKA7150 China 3 Axis Vertical Bed Type CNC Milling Machine

Specifications

XKA7150 Parameter
Table size 1500×550mm
Table travel 2000*400mm
T-slot no/width 3/18mm
T-slot distance 100mm
Spindle taper Vertical ISO50 ISO50
Distance from spindle nose to table surface 150~700mm
Spindle speed Vertical 12steps 66-1440r.p.m
Distance from spindle axis to column surface 600mm
Table feed X/Y feed speed 2.5-3000mm/min
Z feed speed 2.5-2500mm/min
Main motor 7.5KW
Mechanical feed motor 2.5KW,18N/m
Coolant motor 90W
Overall dimension L*W*H 3000×2500×2560
Net weight 4500kg
Max.load of table 2000Kg




Guarantee

Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the cnc milling machine. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:

  • The cnc milling machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
  • When the cnc milling machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
  • During this period of one year warranty , if the cnc milling machinees were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
  • During this period of warranty, if there is something wrong with the cnc milling machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
  • After the warranty, we charge only cost price for maintaining the cnc milling machines within three years.
  • Other after-sale terms can be agreed by buyer and seller in addition.
