XK714 High Quality Econimic CNC Vertical Cutting Milling Machine

CNC Cutting Milling Machine
Minimum Order Quantity: 1

Color:
Quantity:
  • XK714
  • MACH
XK714 High Quality Econimic CNC Vertical Cutting Milling Machine


Specifications

Specifications Units XK714
Table size mm 900x400
T slot no./width/distance mm 3/18/130
Max. load of worktable kg 400
Longitudinal travel  mm 650
Cross travel mm 400
Vertical travel mm 500
spindle nose to table surface mm 120-620
spidle axis to column surface mm 510
Spindle taper BT40
Speed Range rpm 40-6000
Max.spindle torque N.M 23.5(Servo)
spindle motor power kw 5.5
feed motor (X/Y/Z) kw 1.2
cuttiing feed X/Y/Z mm/min 2.5-4000
rapid feed X/Y/Z  mm/min 18000
tool magazine capacity qty 16
tool magazine type round disc type or drum type
Max. dimension of tool mm Φ120x200
Tool changing time (tip to tip) sec 3(round disc type)
positioning accuracy mm ±0.015
repeat positioning accuracy mm ±0.0075
overall dimensions(LxWxH) mm 2120×2150×2290
N/W kg 3300

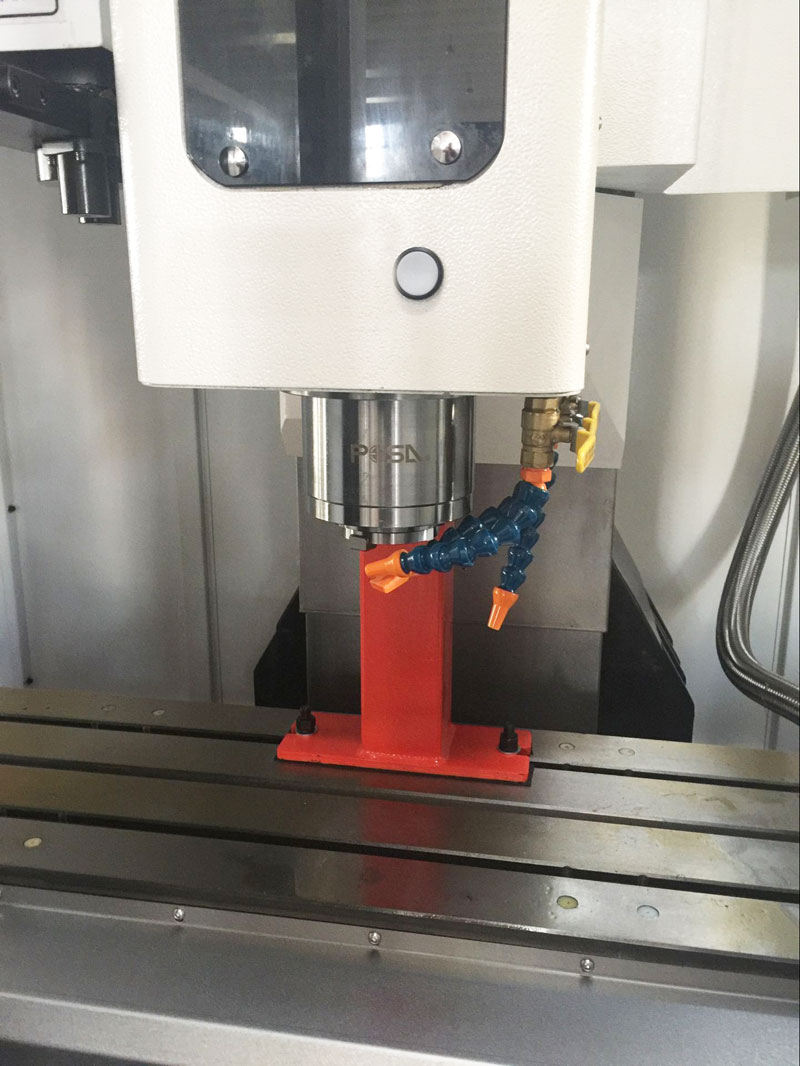

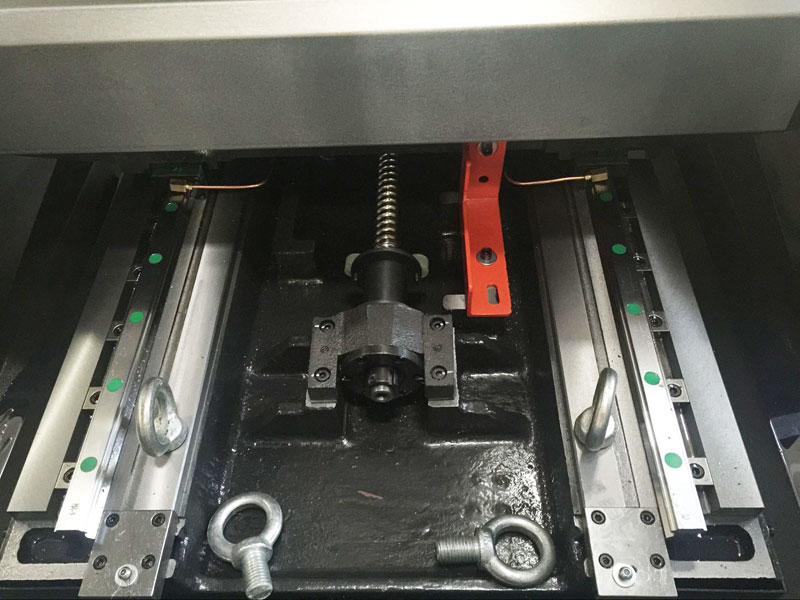

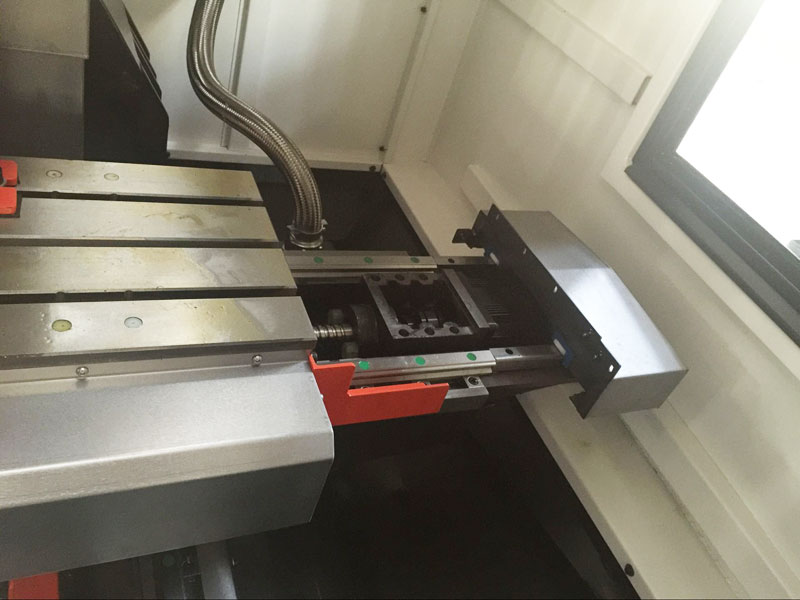

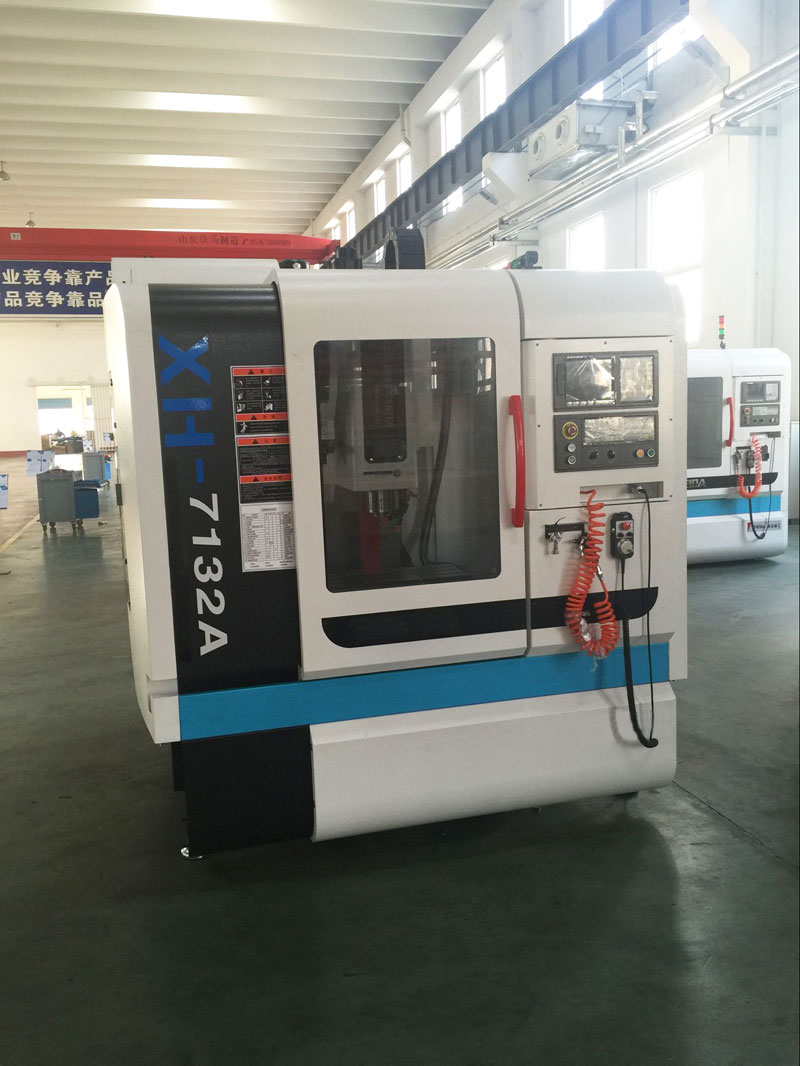

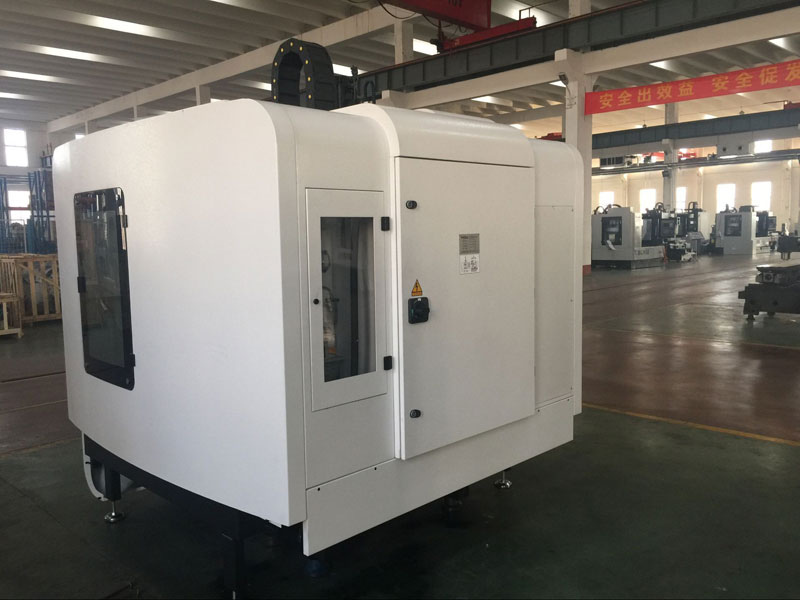

Photos
XH7132A CNC Milling Machine Vertical Machining Center (2)

XH7132A CNC Milling Machine Vertical Machining Center (3)



Standard-Parts

XH714/XK714 Packing list
NO. NAME SPECIFICATION Qty Remark
    XH714 XK714
1 ER type milling chuck / BT40   ER32-100 1set
2 Stud / P40T- 1
3 Inner hexagon spanner 56 Each 1
4 Wrench S22—24 1
5 Adjusting bolts and sizing block   6 SETS






Optional-Parts

Electromagnetic Doorlock
4th axis of CNC control system ( Dividing head or Rotary working table )



Guarantee

Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the cnc cutting milling machine. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:

  • The cnc cutting milling machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
  • When the cnc cutting milling machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
  • During this period of one year warranty , if the cnc cutting milling machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
  • During this period of warranty, if there is something wrong with the cnc cutting milling machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
  • After the warranty, we charge only cost price for maintaining the cnc cutting milling machines within three years.
  • Other after-sale terms can be agreed by buyer and seller in addition.
