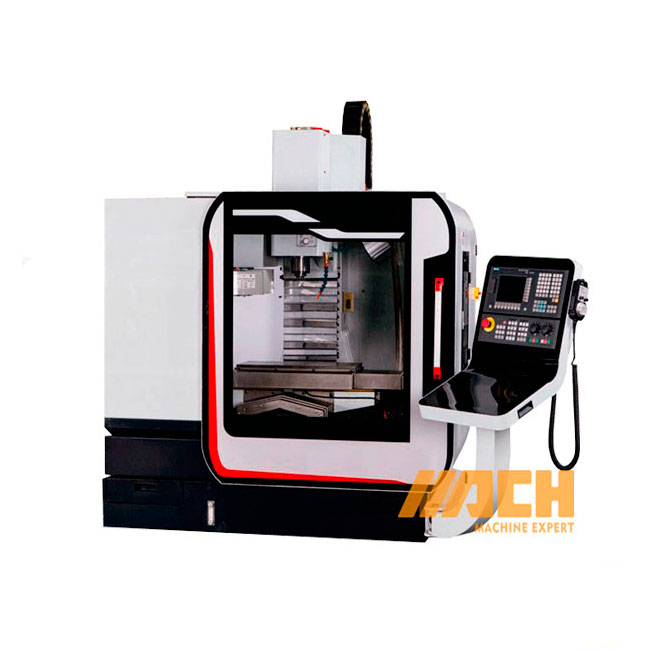

XH7125 Cheap Mini CNC Milling Machine With ATC Vertical Machine Center

CNC Milling Machine With ATC
Minimum Order Quantity: 1

Color:
Quantity:
  • XH7125
  • MACH
XH7125 Cheap Mini CNC Milling Machine With ATC Vertical Machine Center


Specifications

Specification unit XH7125

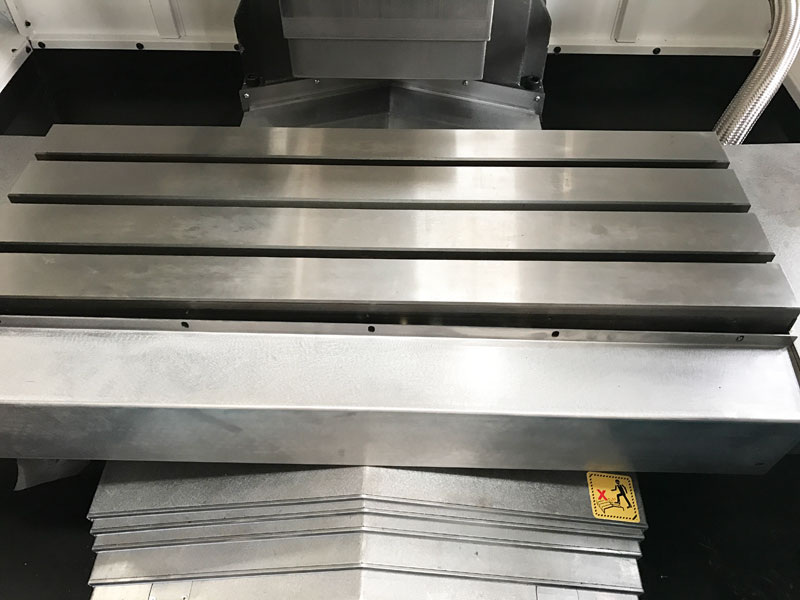

Worktable :
Table size mm 600X250
T slot    no 3
Centre distance  mm 75
T-Width    mm 14
Max. load of worktable kg 150
Machining range :
Longitudinal travel   mm 400
Cross travel mm 240
Vertical travel mm 400
Spindle nose to table surface mm 60-460
Spidle axis to column surface mm 325
Spindle :
Cuttiing feed  X/Y/Z mm / min 2.5-3000
Spindle Speed r.p.m. 60-6000
Motor
Spindle motor power kw 3.7
Feed motor torque(X/Y/Z) KW 7/7/7
Feed :
Rapid feed  X/Y mm/min 8000
Rapid feed  Z mm/min 6000
Tool magazine
Tool magazine capacity piece 10
Tool magazine type Drum-type
Max. tool diameter (full) mm 92
Max. tool length mm 150
Max. tool weight kg 5
Accuracy
Positioning accuracy mm ±0.015
Repeat  positioning accuracy  mm ±0.005
Others
Overall dimensions(LxWxH) mm 1800x2200x2000
N/W KG 1500/1650



Standard-Parts

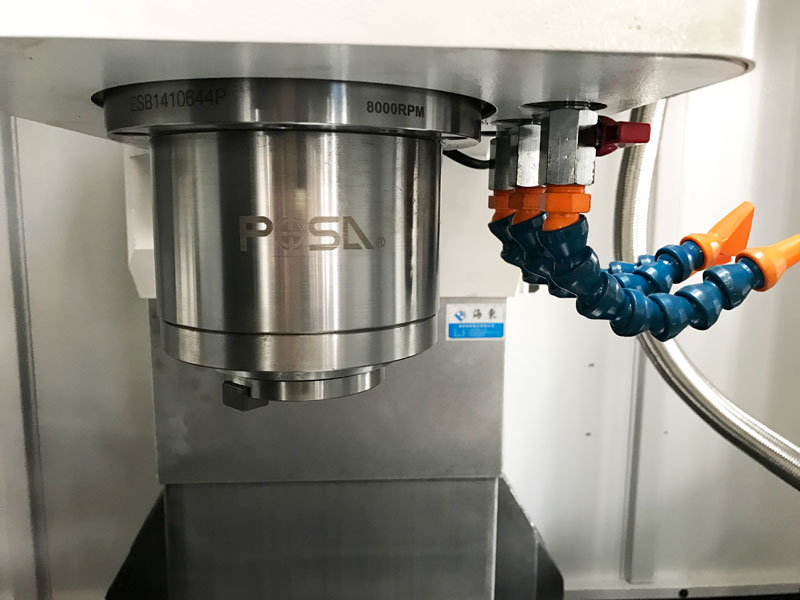

Spindle speed  BT30 6000rpm

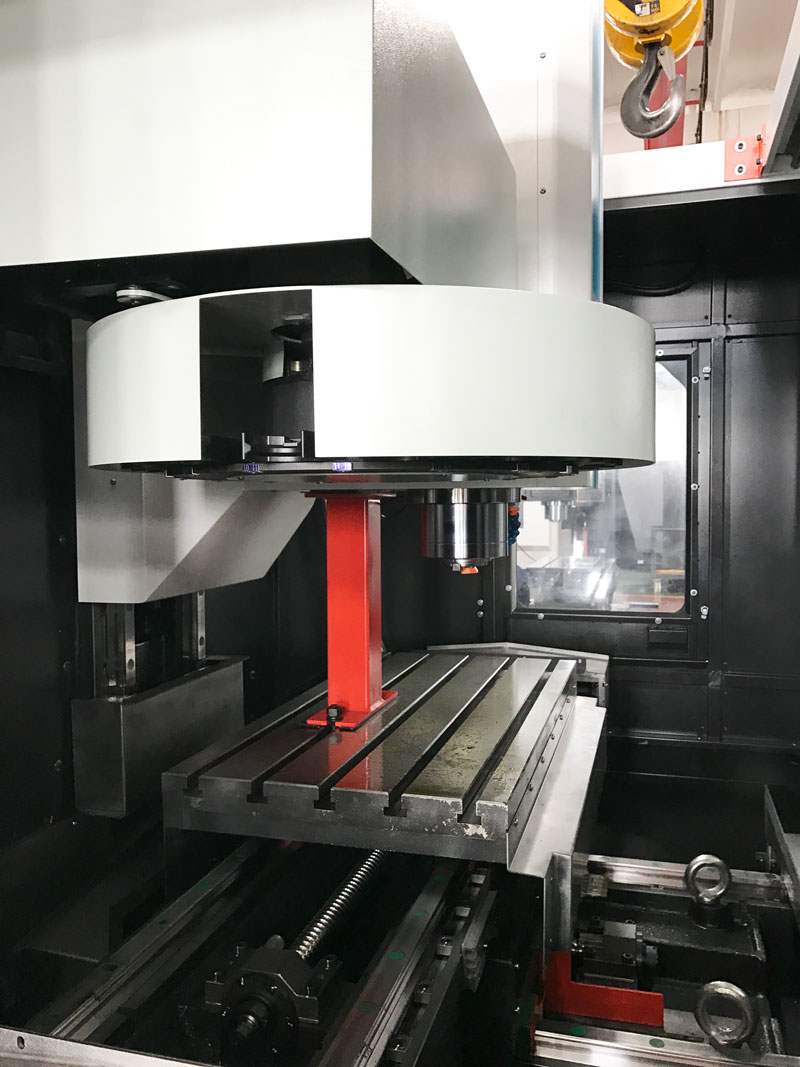

TaiWan HDW Drum-type tool magazine capability  ( ATC )

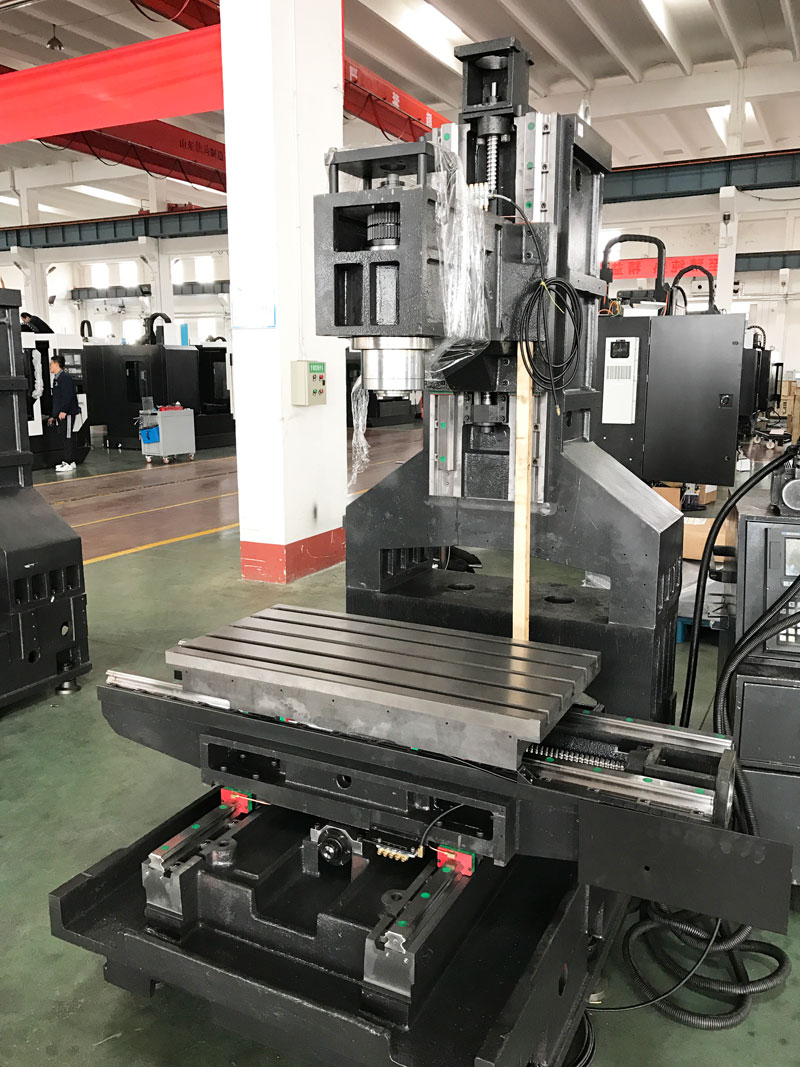

Three axis plastic coated surface hardened rail
Electric handwheel
Full Protection
Coolant system,
Quazrt Light





Optional-Parts

Electromagnetic Doorlock



Guarantee

Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the machine center . We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:

  • The machine centers are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
  • When the machine centers are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
  • During this period of one year warranty , if the machine centers were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
  • During this period of warranty, if there is something wrong with the machine center, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
  • After the warranty, we charge only cost price for maintaining the machine centers within three years.
  • Other after-sale terms can be agreed by buyer and seller in addition.
