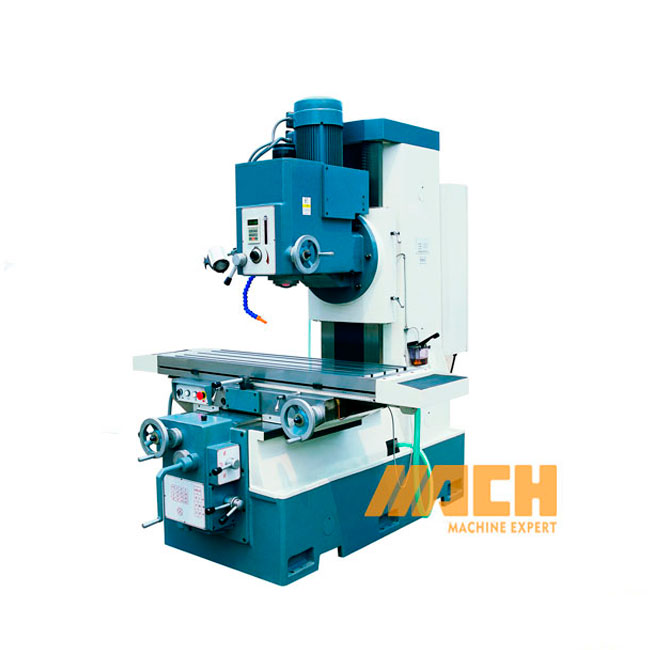

XA7140 Chinese 3 Axis Universal Vertical Bed Type Milling Machine

Bed Type Milling Machine
MOQ: 1

Color:
Quantity:
  • XA7140
  • MACH
XA7140 Chinese 3 Axis Universal Vertical Bed Type Milling Machine

features

1. MEEHANITE cast-iron construction
2. Rectangular guideways y.z with high rigidity
3. Hardened and ground table surface
4. Headstock swivels ±30°
5. Infinitely variable speed




Specifications

Specificatiom unit XA7140
TABLE:
Table size mm 1400×400
T slot no 3
Size ( Width ) mm 18
Centre distance mm 100
Max. load of Table kg 800
MACHINING RANGE:
Longitudinal travel mm 800( standard)/1000(optional)
Cross travel mm 400/360(with DRO)
Vertical travel mm 150-650
MAIN SPINDLE:
Spindle taper ISO50
quill travel mm 105
spindle speed /step rpm 18-1800/stepless
spindle axis to column surface mm 520
spindle nose to table surface mm 150-650
FEEDS:
Longitudinal/cross feed mm / min 18-627/9
Vertical 18-627/9
Longitudinal/cross rapid speed mm / min 1670
Rapid Traverse vertical 1670
POWER:
main motor kw 7.5
feed motor kw 0.75
elevating motor for headstock Kw 0.75
coolant motor kw 0.04
OTHERS:
package dimension cm 226x187x225
overall dimension cm 229x184x212
N/W kg 3860




Standard-Parts

Quartz Lamp
Cooling
Emergency Stop
CE standard electrical components




Optional-Parts

3-axes SINO DRO
Flat Vise 200mm
Universal dividing head F11125A
Rotary table TS250A
Main shaft protection




Guarantee

Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the bed type milling machine. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:

  • The bed type milling machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
  • When the bed type milling machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
  • During this period of one year warranty , if the bed type milling machinees were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
  • During this period of warranty, if there is something wrong with the bed type milling machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
  • After the warranty, we charge only cost price for maintaining the bed type milling machines within three years.
  • Other after-sale terms can be agreed by buyer and seller in addition.
