X716 Bed-type Universial Milling Machine Heavy Metal Milling Machine

MOQ: 1

Color:
Quantity:
  • X716
  • MACH
X716 Bed-type Universial Milling Machine Heavy Metal Milling Machine


Specifications
Specification Unit x716
Table Size mm 2500×575
Table Travel mm 1800(2000)×600×900
No./Width/Distance Of T-Slot mm 3-22-152
Spindle Taper iso50
Max.Load Of Table kg 3000
Feed Speed mm/min 12-1320
Rapid Feed Speed mm/min 3000
Spindle Speed Range r/min 40-1200
Distance Between Spindle Axis And Vertical Guideway mm 110
Power Of Spindle Motor kw 11
Overall Dimension(L×W×H) mm 4300×3200×3300
Net Weight kg 10000




Photos

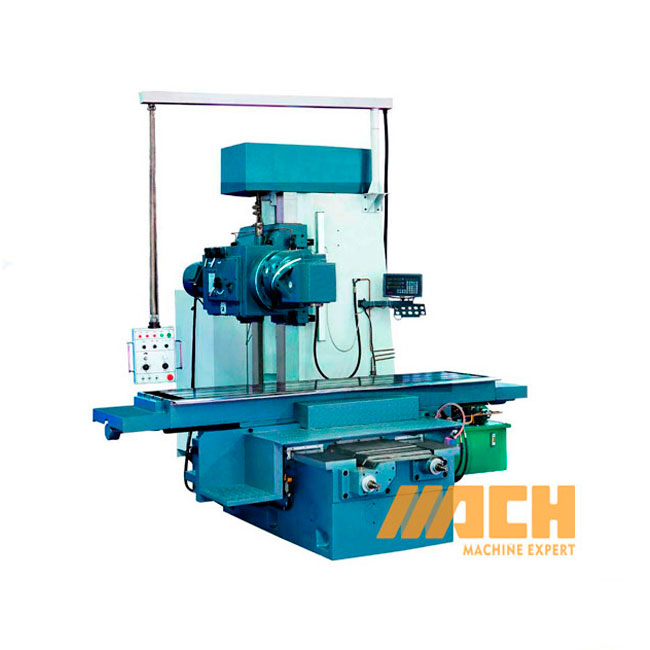

X716 Bed-type Universial Milling Machine Heavy Metal Milling Machine



Standard-Parts

Working Lamp
Cooling System
Emergency Stop
CE Electronic Components
3 axis Auto Feeding


Optional-Parts

3 axis SINO Digital Readout
Parallel Vise 200mm
Ball Screws on X, Y Axis
Universal Dividing Head  F11160A
Rotary Working Table TS500A
Spindle Protection



Guarantee

Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the milling machine. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:

  • The milling machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
  • When the milling machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
  • During this period of one year warranty , if the milling machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
  • During this period of warranty, if there is something wrong with the milling machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
  • After the warranty, we charge only cost price for maintaining the milling machines within three years.
  • Other after-sale terms can be agreed by buyer and seller in addition.
