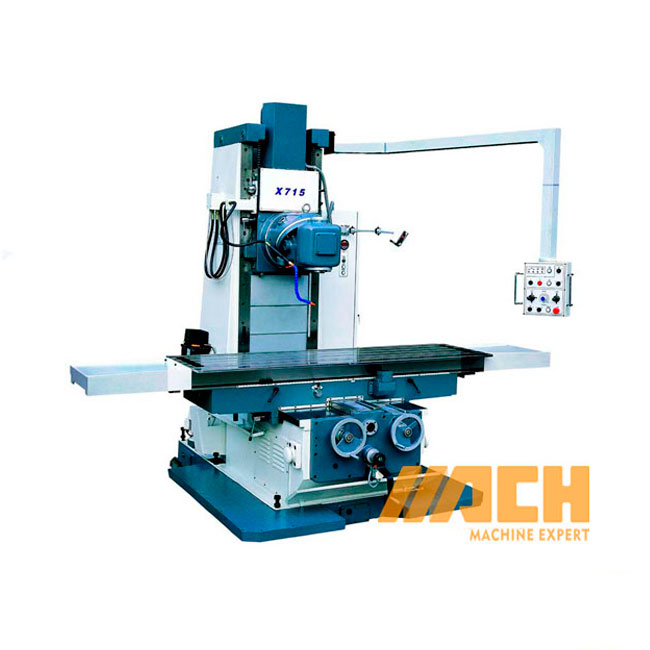

X715 China Manufacturer Bed Type Vertical Universal Milling Machine

We manufacture this machine for Germany Knuck Company.
MOQ: 1

Color:
Quantity:
  • X715
  • MACH
X715 China Manufacturer Bed Type Vertical Universal Milling Machine


features
1.The milling machine is with universal milling head.It can perform both vertical and horizontal milling.

2.The milling machine is with servo motor, and three axes are automatical feed.It’s with rectangular guideways with high stability.

3.The milling machine is equipped with automatic lubrication system.

4.The milling machine is bed type milling with large load and suitable for machining large worpieces.


Specifications

Model Unit X715
TABLE :
Table size mm 2100×500
T slot no 4
Size ( Width ) mm 20
Centre distance mm 100
Max. load of Table kg 2000
MACHINING RANGE :
Longitudinal travel mm 1500
Cross travel mm 670
Vertical travel mm 670
MAIN SPINDLE :
Spindle taper ISO50 7:24
quill travel mm
spindle speed /step rpm 40-1600/12
spindle axis to column surface mm 610
spindle nose to table surface mm 0-670
FEEDS :
Longitudinal/cross feed mm / min 20-1800/stepless
Vertical mm / min 10-900/stepless
Longitudinal rapid  speed mm / min 3500
Rapid Traverse vertical mm / min 1750
POWER :
main motor kW 7.5
feed motor kW 2
elevating motor for headstock kW 2
coolant motor kW 0.55
OTHERS:
package dimension cm 228x228x283
overall dimension cm 330x238x275
N/W kg 7300/8000




Photos

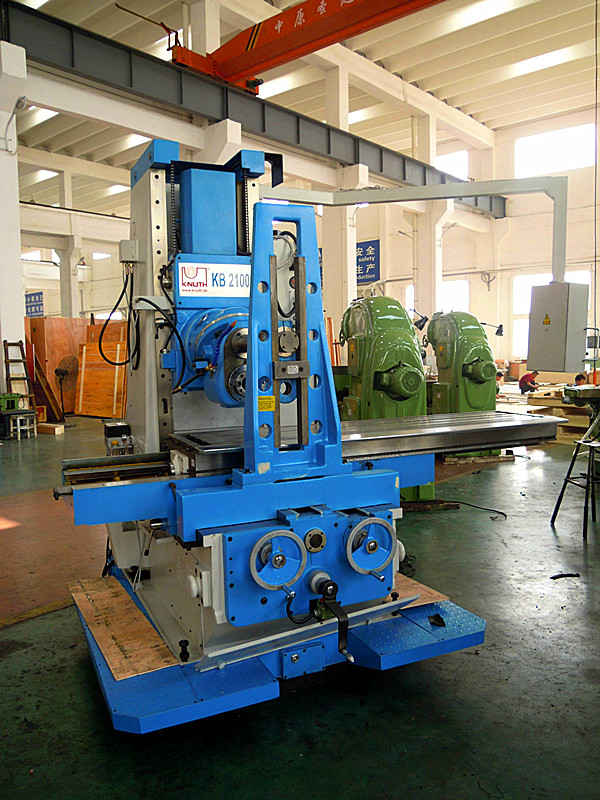

X715 Europe Type





Standard-Parts
Working Lamp
Cooling System
Emergency Stop
CE Electronic Components
3 axis Auto Feeding


Optional-Parts

3 axis SINO Digital Readout
Parallel Vise 200mm
Ball Screws on X,Y axis
Universal Dividing Head  F11160A
Rotary Working Table TS500A
Spindle Protection



Guarantee

Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the milling machine. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:

  • The universal milling machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
  • When the universal milling machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
  • During this period of one year warranty , if the universal milling machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
  • During this period of warranty, if there is something wrong with the universal milling machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
  • After the warranty, we charge only cost price for maintaining the universal milling machines within three years.
  • Other after-sale terms can be agreed by buyer and seller in addition.
