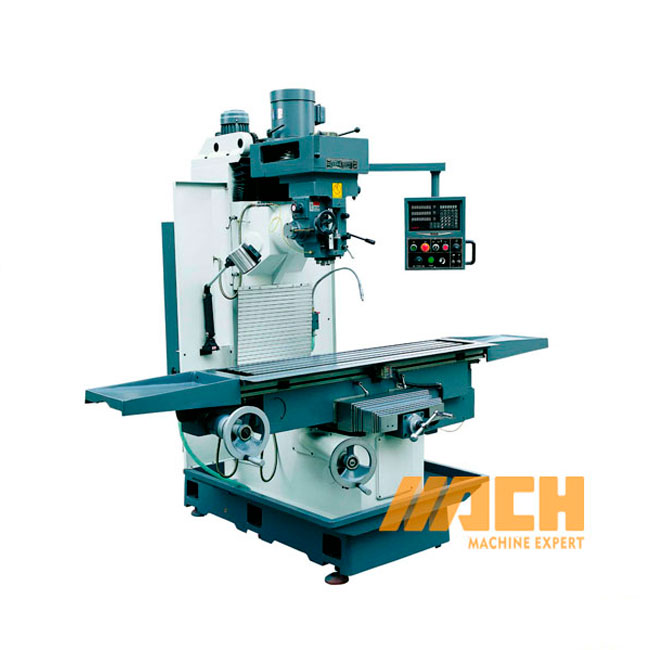

X713 Universal Milling Bed Type Vertical Milling Machine

MOQ: 1

Color:
Quantity:
  • X713
  • MACH
X713 Universal Milling Bed Type Vertical Milling Machine


Specifications
Specification Unit X713
Spindle taper ISO40
Table size mm 1525×320
Table travel mm 1050×470
Spindle quill travel mm 127
NO./width/distance of T-slot mm 3-14-80
Spindle speed steps 10 steps
Spindle speed range r.p.m 70~3620
Spindle feed rate capacity r/min 0.045mm; 0.086mm; 0.142mm /rev
Distance between spindle axis and column guideway mm 450
Distance between spindle nose and table surface mm 75-595
Spindle motor power HP 5
Overall dimension(L×W×H) mm 2565×2045×2290
Net weight kg 2300




Photos

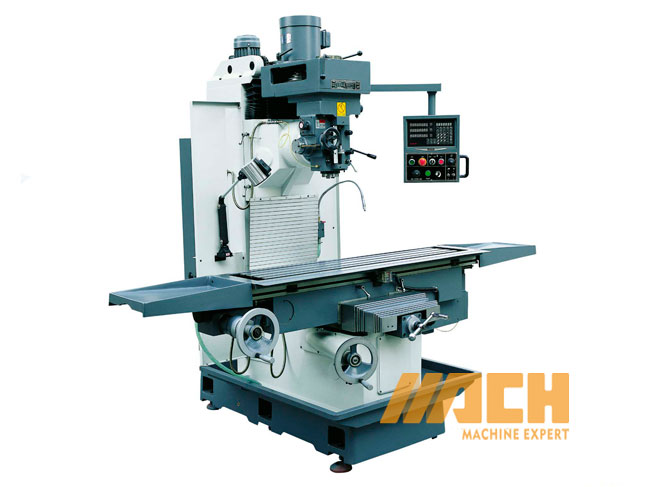

32(X713)



Standard-Parts

Working Lamp
Cooling System
Emergency Stop
CE Electronic Components


Optional-Parts

3 axis SINO Digital Readout
Parallel Vise 200mm
Universal Dividing Head  F11125A
Rotary Working Table TS320A
Spindle Protection
7HP Milling Head with steps changable speed
58 pcs combine clamping kit

Guarantee

Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the vertical milling machine. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:

  • The vertical milling machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
  • When the vertical milling machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
  • During this period of one year warranty , if the vertical milling machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
  • During this period of warranty, if there is something wrong with the vertical milling machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
  • After the warranty, we charge only cost price for maintaining the vertical milling machines within three years.
  • Other after-sale terms can be agreed by buyer and seller in addition.
