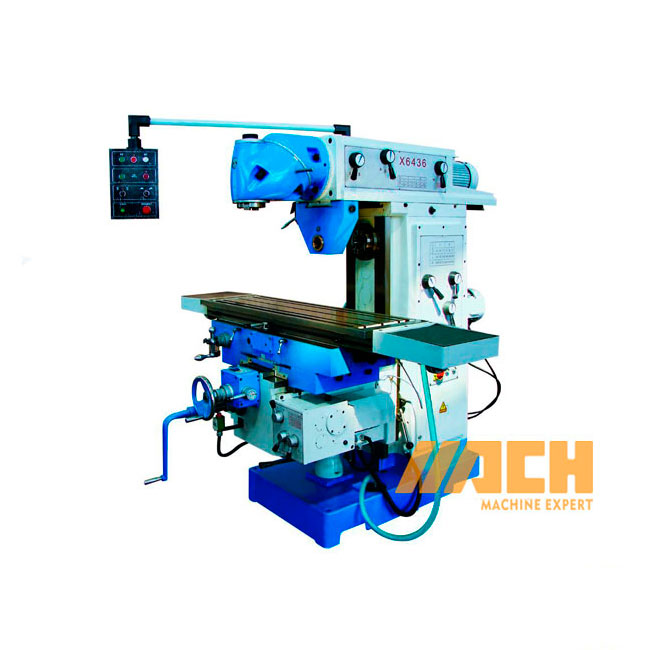

X6436 Metal Chinese Universal Vertical Swivel Head Milling Machine

Knee Type Vertical Universal Milling Machine
MOQ: 1

Color:
Quantity:
  • X6436
  • MACH
X6436 Metal Chinese Universal Vertical Swivel Head Milling Machine


Specifications

Specifications X6436
TABLE:
Table size mm 1320x360
T slot   no 5
Size ( Width ) mm 14
Centre distance mm 95
Max. load of Table kg 400
Swivel of table degree ±45o
MACHINING RANGE:
Table Longitudinal travel(manual/auto) mm 1000
Table Cross travel  (manual/auto) mm 290/280
Table Vertical travel(manual/auto) mm 400
MAIN SPINDLE:
Spindle taper ISO50
Spindle speed /step -- Vertical rpm 58-1800/12
                  --Horizontal rpm 38-1310/12
Swivel angle of swivel  head degree 360o
Vertical spindle axis to column surface mm
Vertical spindle nose to table surface mm 0-400
Horizontal spindle axis to table surface mm
Horizontal spindle axis to arm bottom mm 175
Arm travel mm 500
FEEDS:
Longitudinal/cross feed mm / min 22-420(X), 22-393(Y)
Vertical/step mm/min 10-168(Z)
Longitudinal/cross rapid speed mm / min 1290(X),1205(Y)
Rapid Traverse vertical mm/min 513(Z)
POWER:
Main motor kw 4
(X/Y/Z) feed motor kw 1.1KW
Coolant motor kw 90W
OTHERS:
Overall dimension cm 198x202x190
N/W,G/W kg 2200/2400




Standard-Parts

Quartz Lamp
Cooling
Emergency Stop
CE standard electrical components
Suspension control panel
Rotary table




Optional-Parts

3-axes SINO DRO
Flat Vise 200mm
Universal dividing head F11125A
Rotary table TS250A
Main shaft protection




Guarantee

Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the swivel head milling machine. We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:

  • The universal milling machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
  • When the swivel head milling machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
  • During this period of one year warranty , if the swivel head milling machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
  • During this period of warranty, if there is something wrong with the swivel head milling machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
  • After the warranty, we charge only cost price for maintaining the swivel head milling machines within three years.
  • Other after-sale terms can be agreed by buyer and seller in addition.
