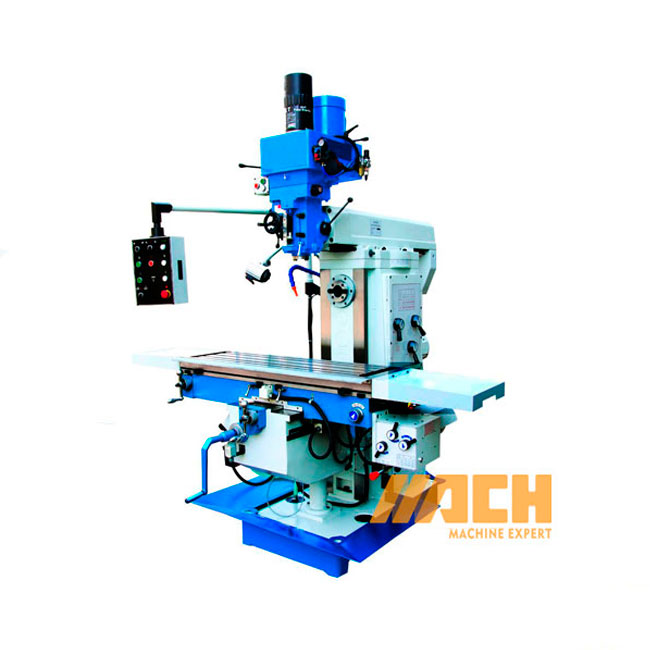

Specification | unit | X6336 |
Table size | mm | 1320×360 |
T slot no./width/distance | no | 3/18/80 |
Max. load of Table | kg | 300 |
Table Longitudinal travel(manual/auto) | mm | 980 |
Table Cross travel(manual/auto) | mm | 300 |
Table Vertical travel(manual/auto) | mm | 450 |
Spindle taper | | ISO40(V)ISO50(H) |
Spindle speed /step — Vertical | rpm | 70-3620/10steps |
–Horizontal | rpm | 58-1800/12steps |
Max. drilling dia. | mm | 30 |
Max. end milling width | mm | 125 |
Max. vertical milling Dia. | mm | 25 |
Max. tapping dia. | mm | M16 |
Quill travel | mm | 140 |
Swivel angle of headstock | degree | ±45o |
Vertical spindle axis to column surface | mm | 150-550 |
Vertical spindle nose to table surface | mm | 200-650 |
Horizontal spindle axis to table surface | mm | 0-450 |
Horizontal spindle axis to ram bottom | mm | 235 |
Ram travel | mm | 400 |
Longitudinal/cross feed | mm / min | 15-370/8steps |
Vertical/step | mm/min | 575/1step |
Longitudinal/cross rapid speed | mm / min | 575 |
Rapid Traverse vertical | mm/min | 575 |
Automatic spindle feed | | 0.04/0.08/0.15(per rev.) |
Main motor | kw | 3.7(V),4.0(H) |
Feed motor | kw | 0.75(X/Y),1.1(Z) |
Coolant motor | kw | 0.09 |
Overall dimension | cm | 207x202x233 |
N/W,G/W | kg | 2200/2400 |
