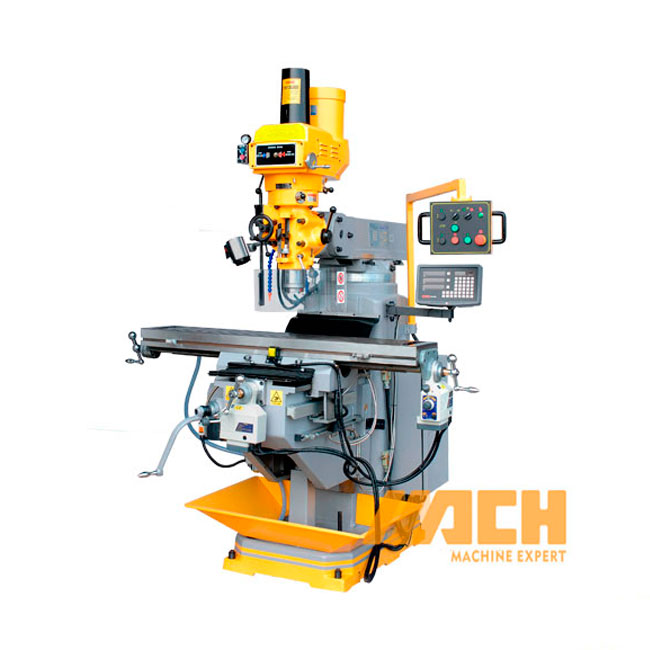

X6325D High Quality Precision Turret Milling Machine

Turret Milling Machine
Minimum Order Quantity: 1

Color:
Quantity:
  • X6325D
  • MACH
  • New
  • Turret Milling Machine
  • Not
X6325D High Quality Precision Turret Milling Machine

Specifications

MODEL X6325 X6325A X6325B X6325C X6325D
Table Size 254x1370mm
Long travel 850mm
Cross travel 420mm 400mm 400mm 420mm 420mm
Vertical travel 420mm
T-slot No. and size 3x16mm
Ram travel 470mm
Distance from spindle nose to table surface 0---445mm
Distance from spindle center to column 140---610mm
Spindle hole taper Standard: R8       Optional: ISO30/ ISO40   Standard: ISO40
Spindle travel 127mm
Spindle speed Standard:               50Hz: 65---4500         60Hz: 80 --- 5440 Variable Speed
16 shift grades  Optional: variable 70-3800rpm
Auto. quill feed  0.04;  0.08; 0.15 mm/revolution
Spindle motor 2.25kw/3HP   3.75kw/5HP
Head swivel                         90 degree
Head tilting                         45 degree FIX 45 degree
Packing Dimension                         One set packing:     1516 x 1550 x 2080 mm
                        Two sets packing:    1650 x 1790 x 2170 mm
                        Three sets packing: 1650 x 2285 x 2235 mm
Gross Weight 1550kgs 1380kgs 1420kgs 1590Kgs 1590Kgs




Photos

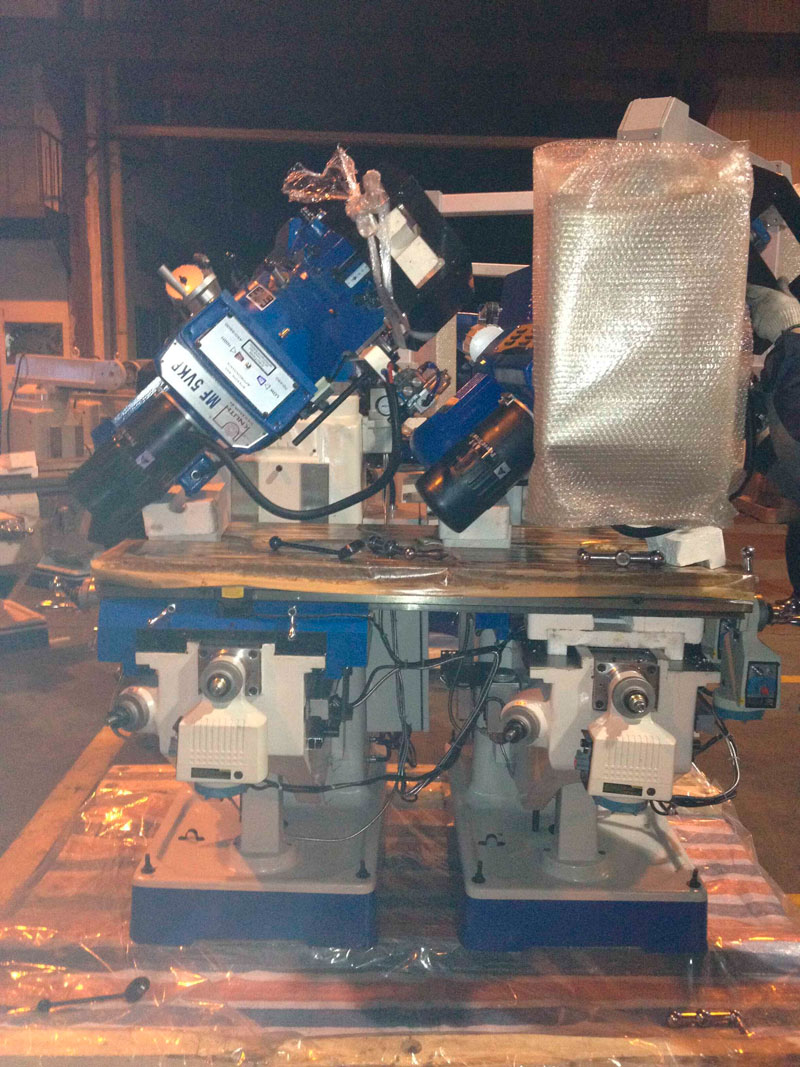

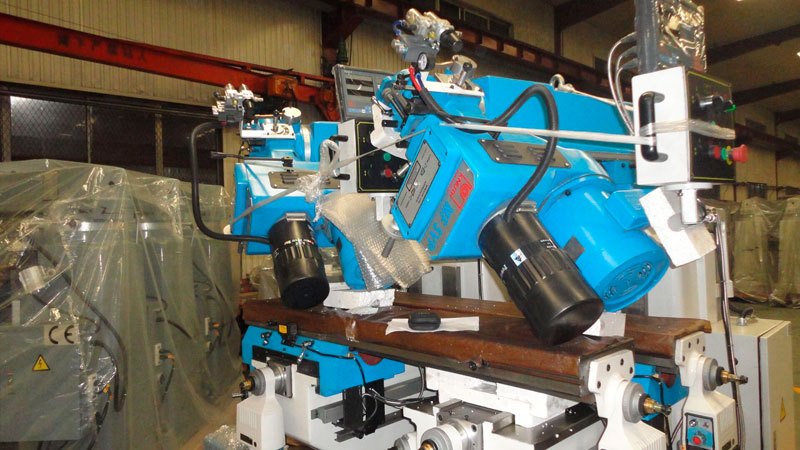

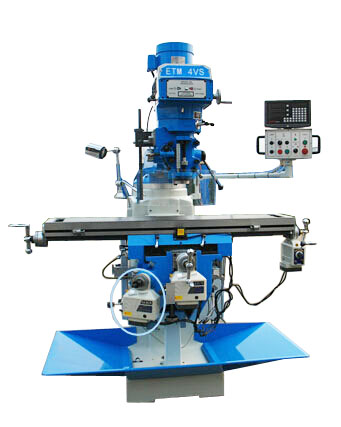

X6325D High Quality Precision Turret Milling Machine (2)         X6325D High Quality Precision Turret Milling Machine


Standard-Parts

Draw Bar
Tool Box &Tools
Low Volt Machine Light
Electric Cabinet
Manual Oil Pump
CE Electric Device




Optional-Parts

Coolant System
3 Axis DRO
Spindle Guard
X axis AL500 power feed
Y axis AL500 power feed
Motorised Knee Movement

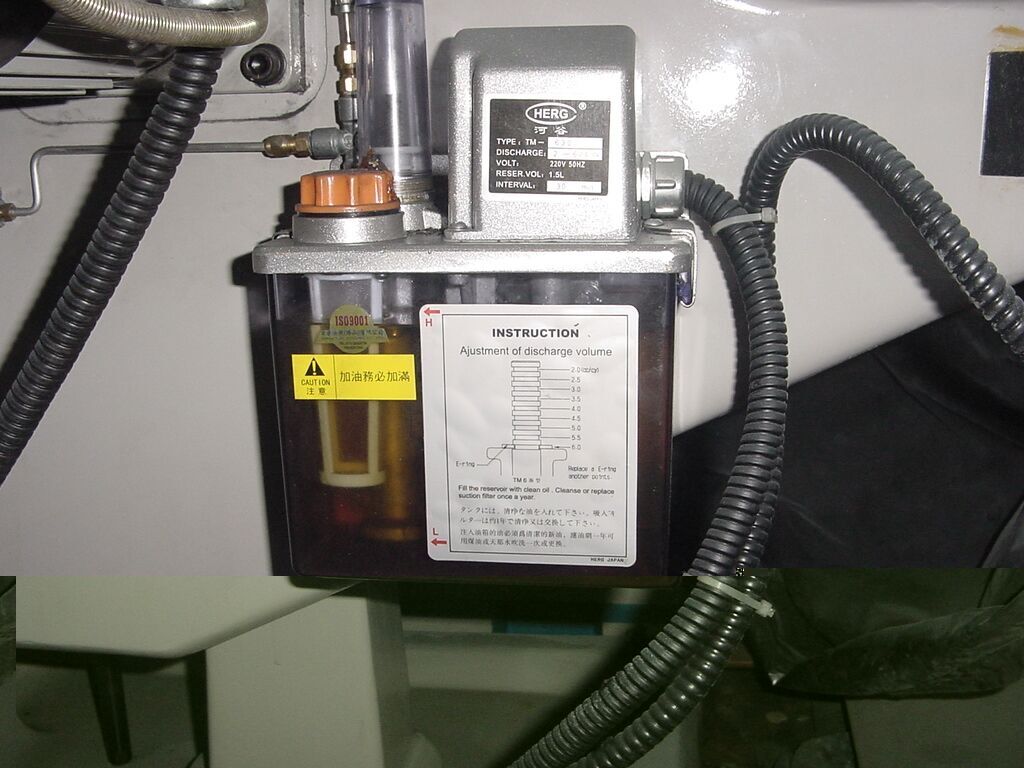

Auto Lubrication Pump

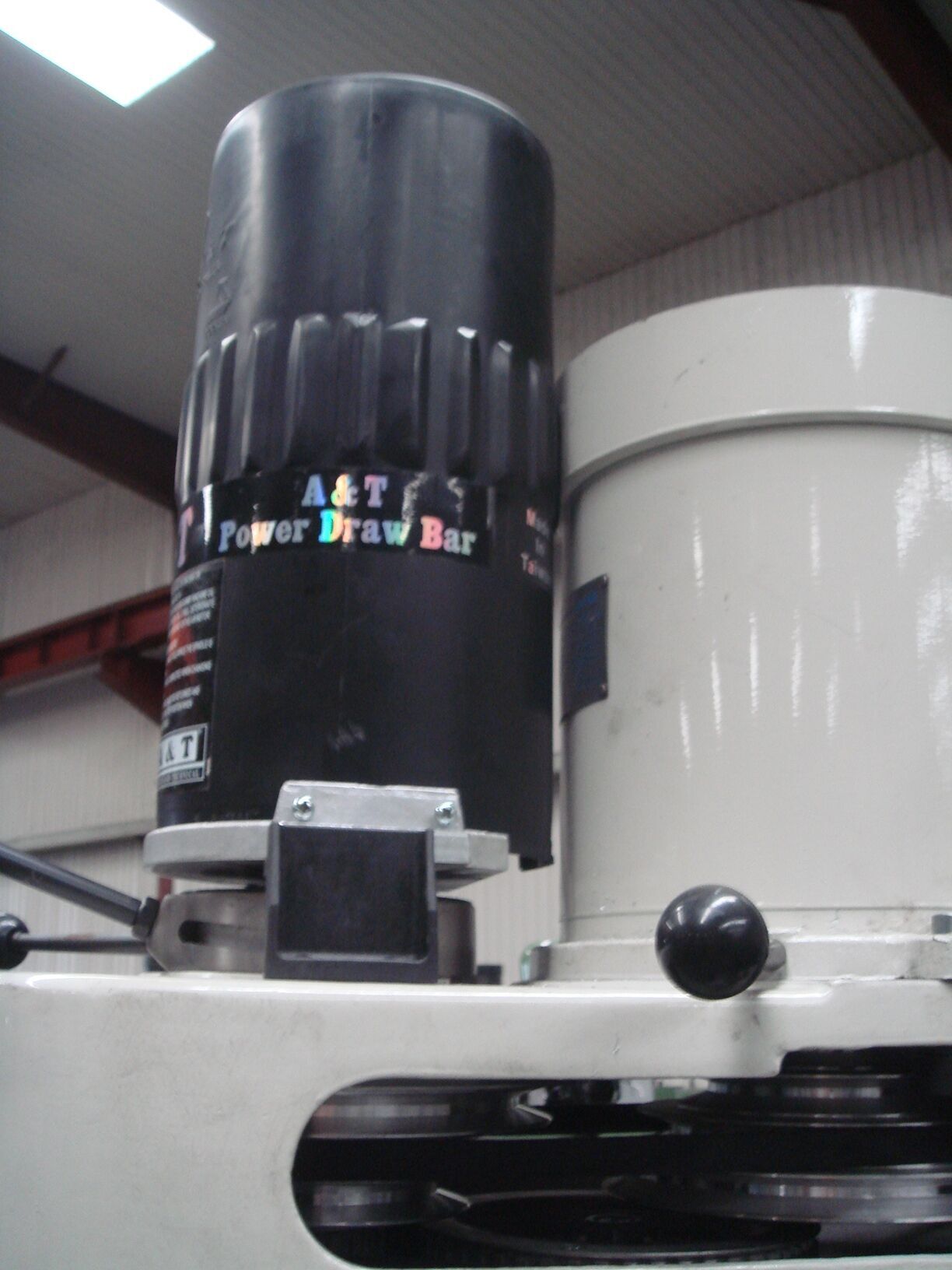

Air Power Draw Bar
NT40 Spindle
Plain Vice



Guarantee

Quality is our forte and we have clients spreading all over the world. We are committed to a well-defined and self-framed quality policy. The policy revolves around through and repeated checking of the turret milling machine . We are the regular exporters of our products throughout Asia, Africa and several European countries. Our after-sales service terms and conditions as follows:

  • The turret milling machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
  • When the turret milling machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
  • During this period of one year warranty , if the turret milling machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
  • During this period of warranty, if there is something wrong with the turret milling machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
  • After the warranty, we charge only cost price for maintaining the turret milling machines within three years.
  • Other after-sale terms can be agreed by buyer and seller in addition.
